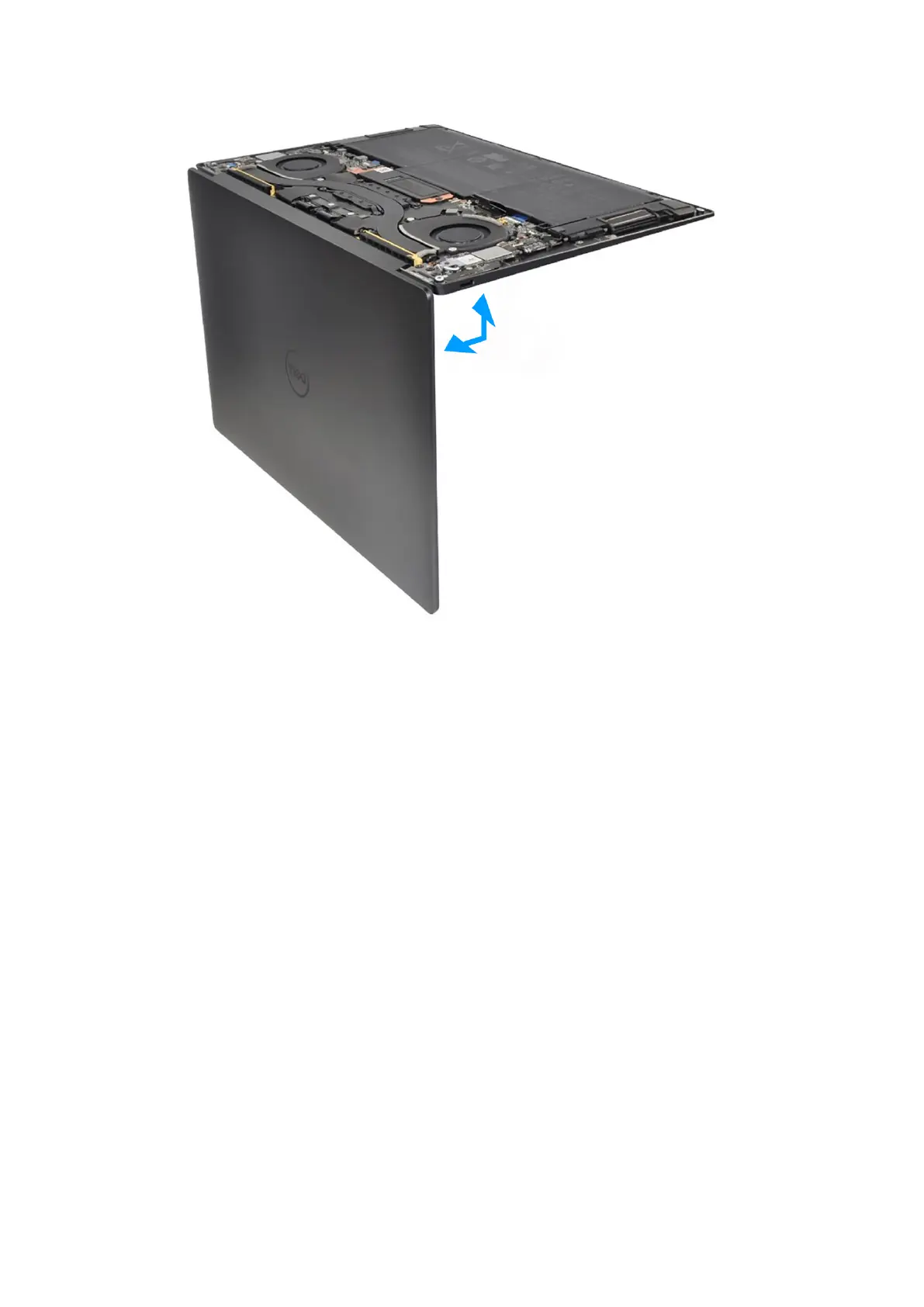

Figure 45. Opening the display assembly to a 90-degree angle
1. Open the display assembly to a 90-degree angle and place the computer on the edge of a flat surface.
2. Remove the four screws (M1.4x2) that secure the power-button bracket to the palm-rest and keyboard assembly.
3. Lift the power-button bracket off the palm-rest and keyboard assembly.
4. Lift the palm-rest and keyboard assembly slightly.
5. Unthread the power-button cable through the opening on the palm-rest and keyboard assembly and remove the power
button with fingerprint reader.
Installing the power button with fingerprint reader
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following images indicate the location of the power button with fingerprint reader and provide a visual representation of the
installation procedure.
