Palm-rest assembly
Removing the palm-rest assembly
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the display assembly.
5. Remove the system board.
NOTE: The system board can be removed with the following components attached:
● heat sink
● fans
● solid-state drive
6.
Remove the power button with fingerprint reader.
7. Remove the keyboard.
About this task
The following images indicate the location of the palm-rest assembly and provide a visual representation of the removal
procedure.

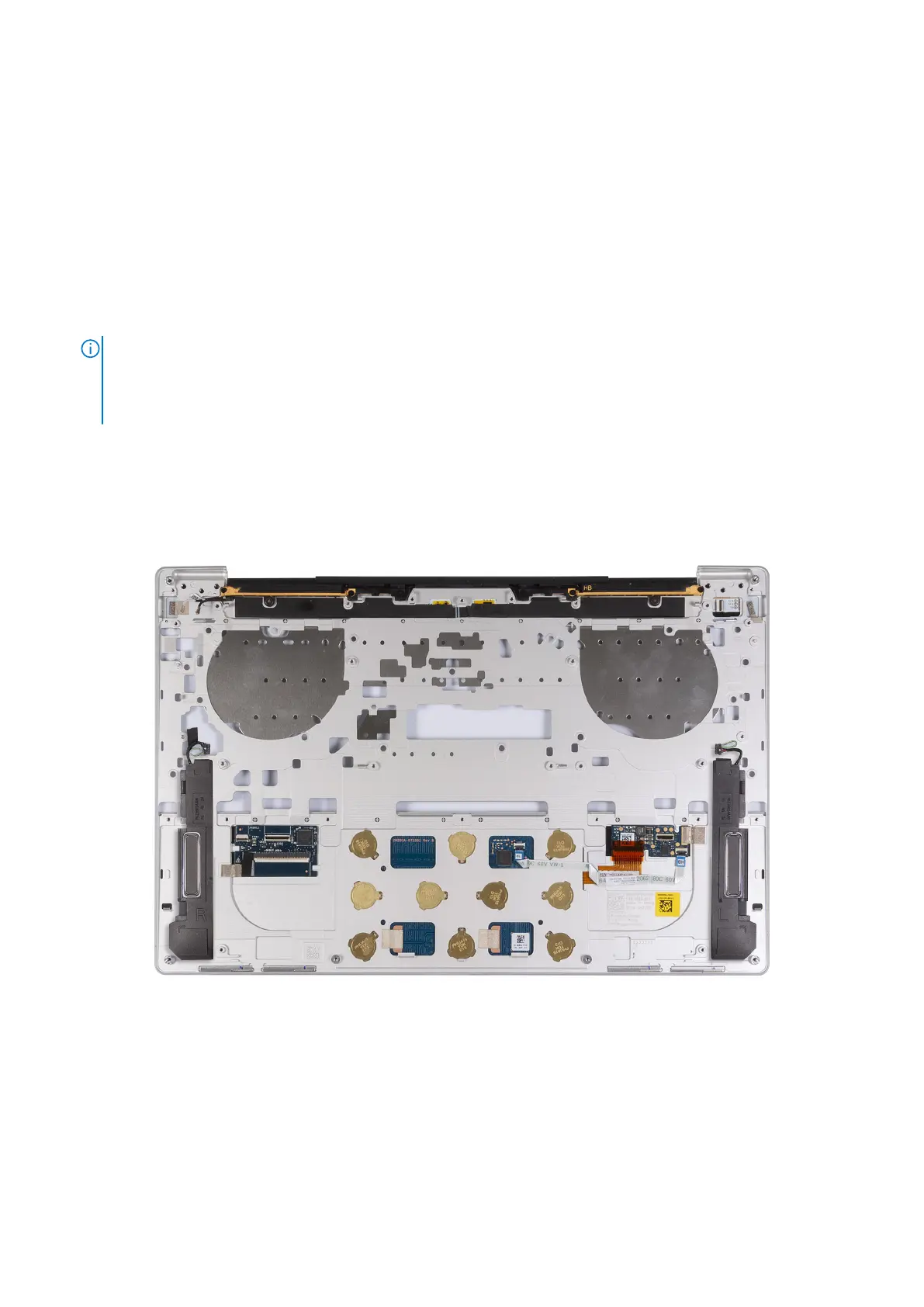

Figure 54. Removing the palm-rest assembly
Steps
After performing the steps in the pre-requisites, you are left with the palm-rest assembly.
72
Removing and installing Field Replaceable Units (FRUs)
