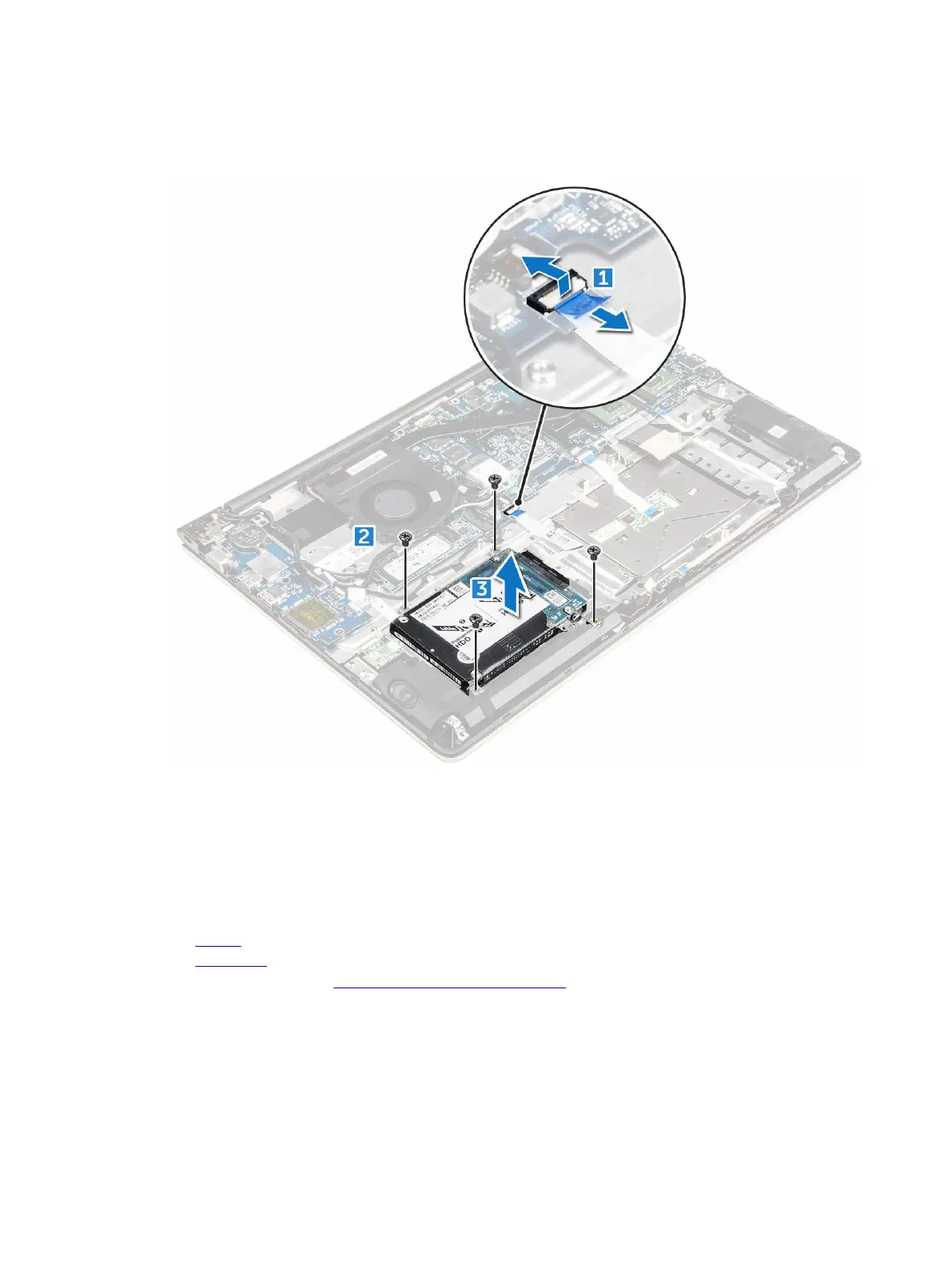

a. Lift the tab to disconnect the hard drive cable from the connector on the system board [1] .
b. Remove the screws that secure the hard drive to the computer [2].
c. Lift the hard drive from the computer [3].
Installing the hard drive
1. Insert the hard drive assembly into its slot on the computer.
2. Tighten the screws that secure the hard drive to the computer
3. Connect the hard drive cable to the connector on the system board.
4. Install the:
a. battery
b. back cover
5. Follow the procedure in After working inside your computer
18
