Replacing the speakers
NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow
the steps in Before working inside your computer. After working inside your computer, follow the instructions in After
working inside your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Procedure

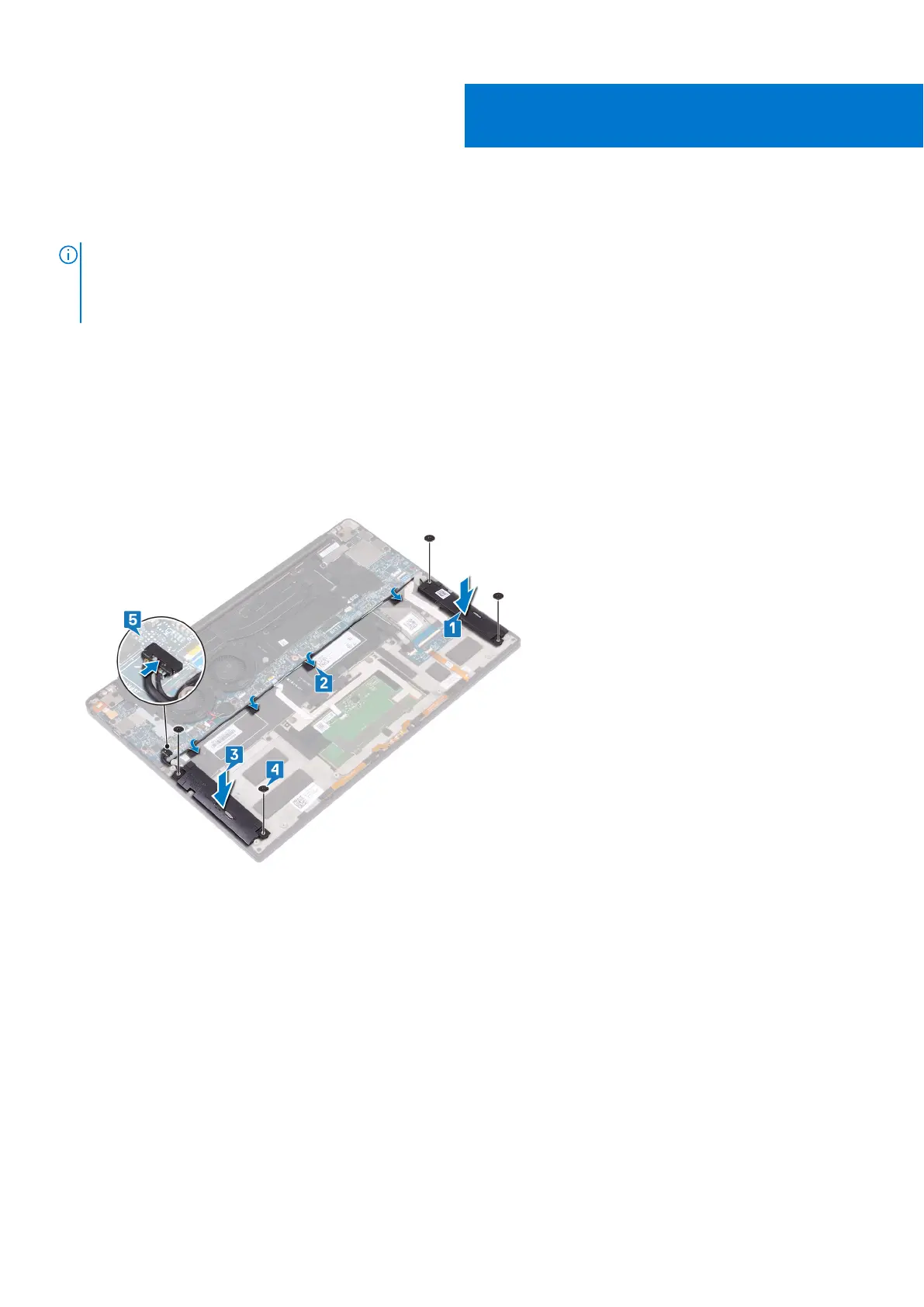

1. Using the alignment posts on the palm-rest assembly, place the left speaker on the palm-rest assembly.
2. Route the speaker cable on the system board and adhere the tape to the system board.
3. Using the alignment posts on the palm-rest assembly, place the right speaker on the palm-rest assembly.
4. Replace the four screws (M2x2) that secure the speakers to the palm-rest assembly.
5. Connect the speaker cable to the system board.
Post-requisites
1. Replace the battery.
2. Replace the base cover.
