Replacing the headset port
NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow
the steps in Before working inside your computer. After working inside your computer, follow the instructions in After
working inside your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.

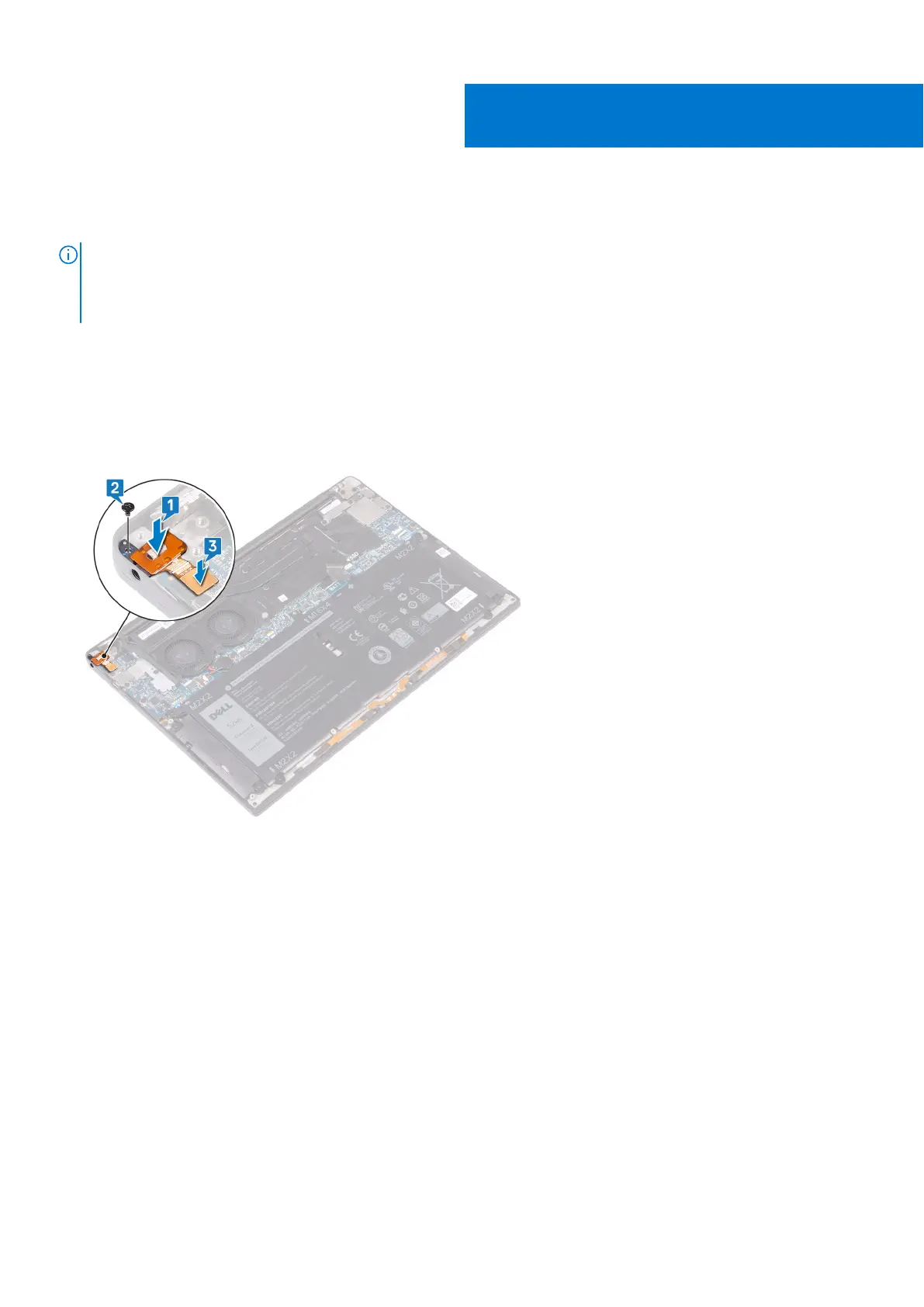

Procedure
1. Place the headset port in its slot on the palm-rest assembly.
2. Replace the screw (M1.6x3) that secures the headset port to the palm-rest assembly
3. Reconnect the headset-port cable to the system board.
4. Using the alignment posts, press the right display hinge down to the palm-rest assembly aligning the screw holes on the
display hinge to the screw holes on the palm-rest assembly.
5. Replace the two screws (M2.5x4) that secure the left hinge to the palm-rest assembly.
23
44 Replacing the headset port
