Screw list

NOTE: When removing screws from a component, it is recommended to note the screw type, the quantity of screws, and

then place them in a screw storage box. This is to ensure that the correct number of screws and correct screw type is

restored when the component is replaced.

NOTE: Some computers have magnetic surfaces. Ensure that the screws are not left attached to such surfaces when

replacing a component.

NOTE: Screw color may vary with the configuration ordered.

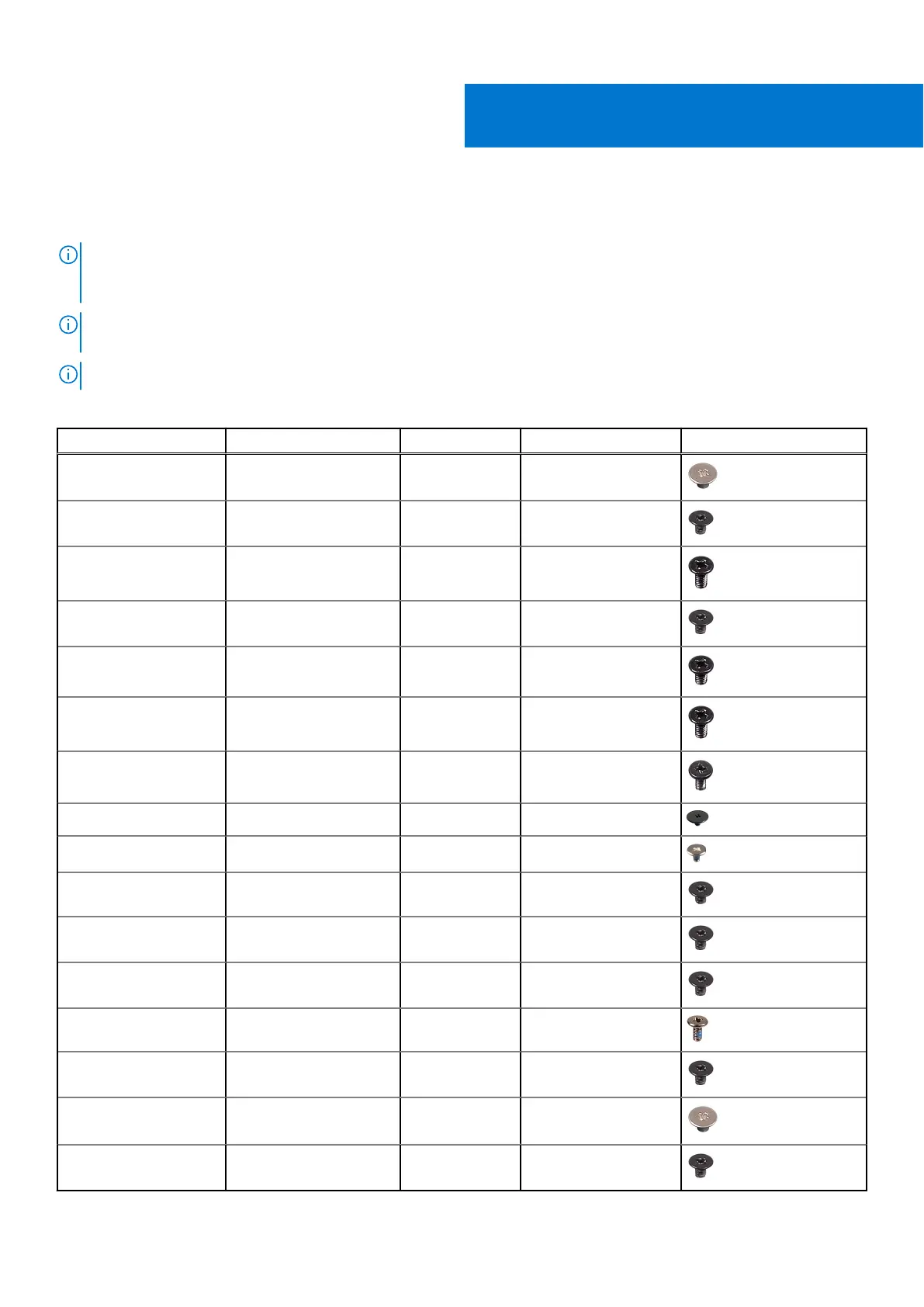

Table 1. Screw list

Component Secured to Screw type Quantity Screw image

Base cover Palm-rest assembly M2x4 7

Battery Palm-rest assembly M2x3 2

Fan Palm-rest assembly M2x3 2

Hard-drive assembly Palm-rest assembly M2x3 3

Hard-drive bracket Hard drive M3x3 4

Display hinges Palm-rest assembly M2.5x4 4

I/O board Palm-rest assembly M2x4 1

Keyboard Palm-rest assembly M1.2x1.5 19

Keyboard bracket Palm-rest assembly M1.2x1.8 24

Power-adapter port Palm-rest assembly M2x3 1

Solid-state drive Palm-rest assembly M2x3 1

Solid-state drive Soldi-state drive bracket M2x3 1

System board Palm-rest assembly M2x2 Big Head 2

Touchpad bracket Palm-rest assembly M2x3 3

Touchpad Palm-rest assembly M1.6x2 2

Wireless-card bracket System board M2x3 1

14 Screw list
