Replacing the system board
NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow
the steps in Before working inside your computer. After working inside your computer, follow the instructions in After
working inside your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
NOTE: Your computer’s Service Tag is stored in the system board. You must enter the Service Tag in the BIOS setup
program after you replace the system board.
NOTE: Replacing the system board removes any changes you have made to the BIOS using the BIOS setup program. You
must make the appropriate changes again after you replace the system board.
Procedure

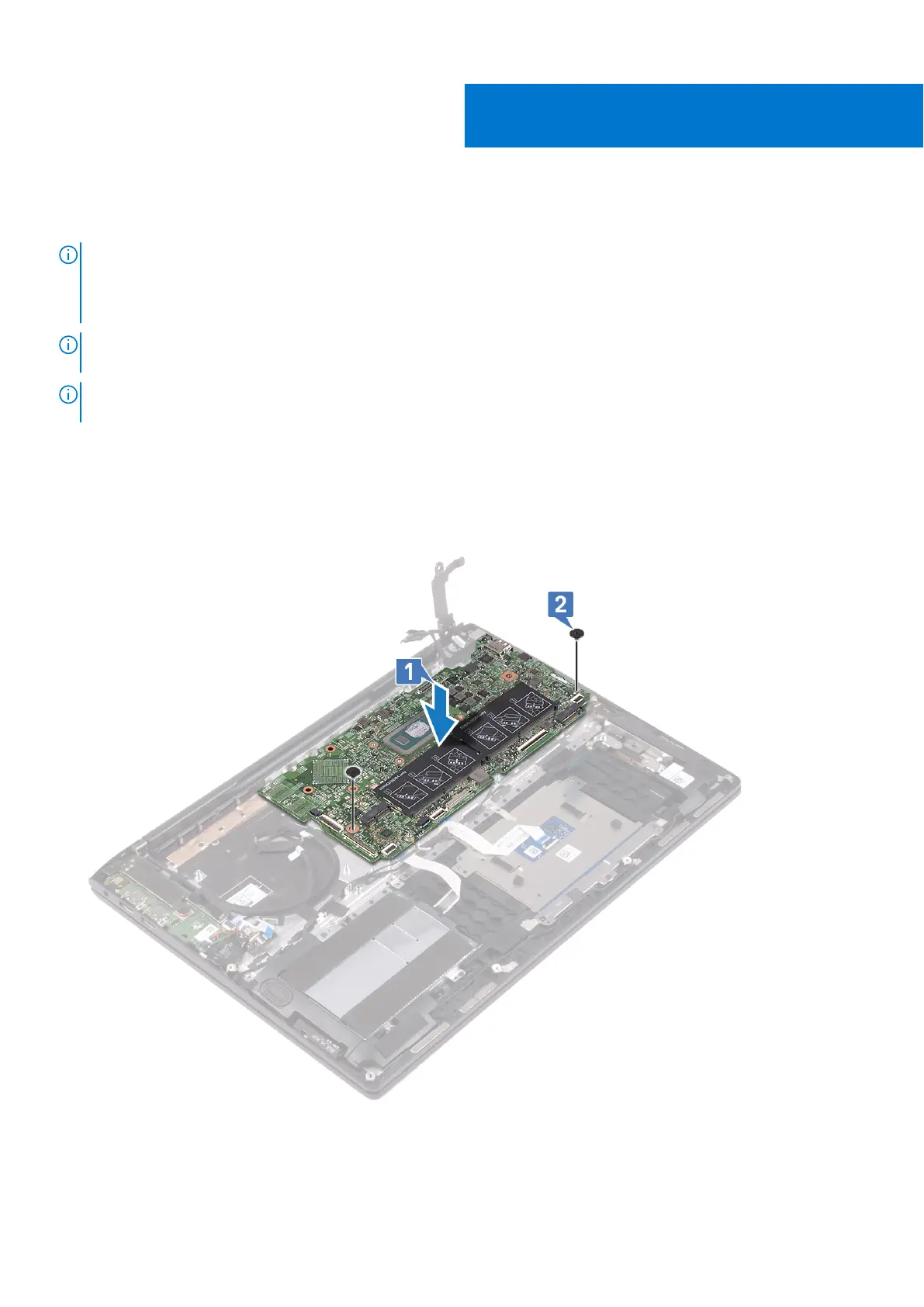

1. Align the screw holes on the system board with the screw holes on the palm-rest assembly.
2. Replace the two screws (M2x2) that secure the system board to the palm-rest assembly.
3. Slide the touch-screen cable to the system board and close the latch to secure the cable.
4. Connect the I/O-board cable to the system board.
5. Slide the hard-drive cable to the system board and close the latch to secure the cable.
35
Replacing the system board 71
