Removing the power-adapter port
NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow
the steps in Before working inside your computer. After working inside your computer, follow the instructions in After
working inside your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Prerequisites
Remove the base cover.
Procedure

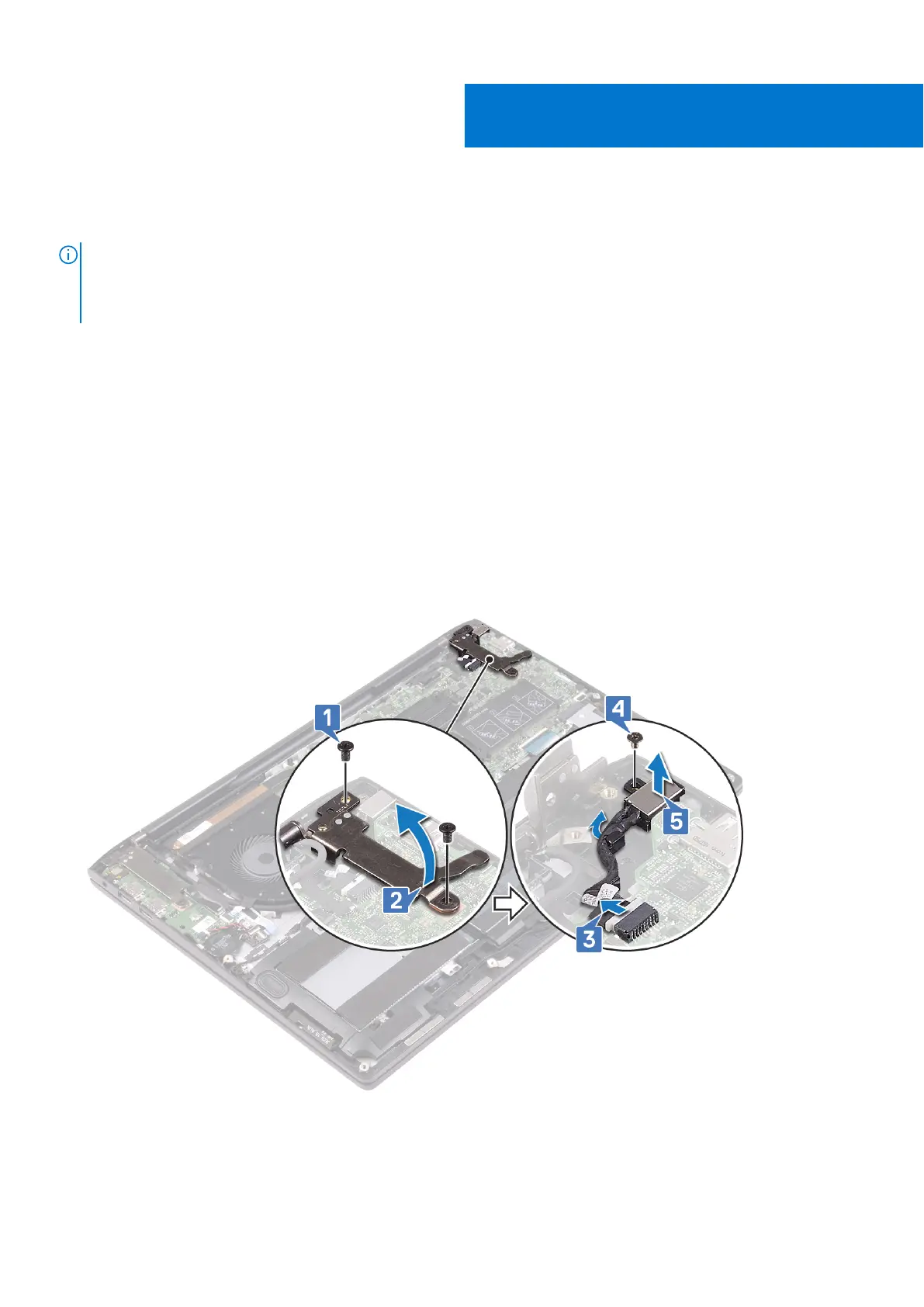

1. Remove the two screws (M2.5x4) that secure the left display hinge to the system board.
2. Lift the left display hinge from the system board.
3. Disconnect the power-adapter port cable from the system board.
4. Remove the screw (M2x3) that secures the power-adapter port to the palm-rest assembly.
5. Lift the power-adapter port, along with its cable, off the palm-rest assembly.
