Holding the sideplane in place, locate the USB connector on the sideplane (see Figure 6-4) and install
the USB memory key onto the board. See Figure 3-13.
7
Replace the sideplane into the system.
8
Reconnect the optical drive cable, if present.
9
Reinstall the SAS controller card. See "Installing a SAS Controller Daughter Card" on page 65.
10
Close the system. See "Closing the System" on page 56.

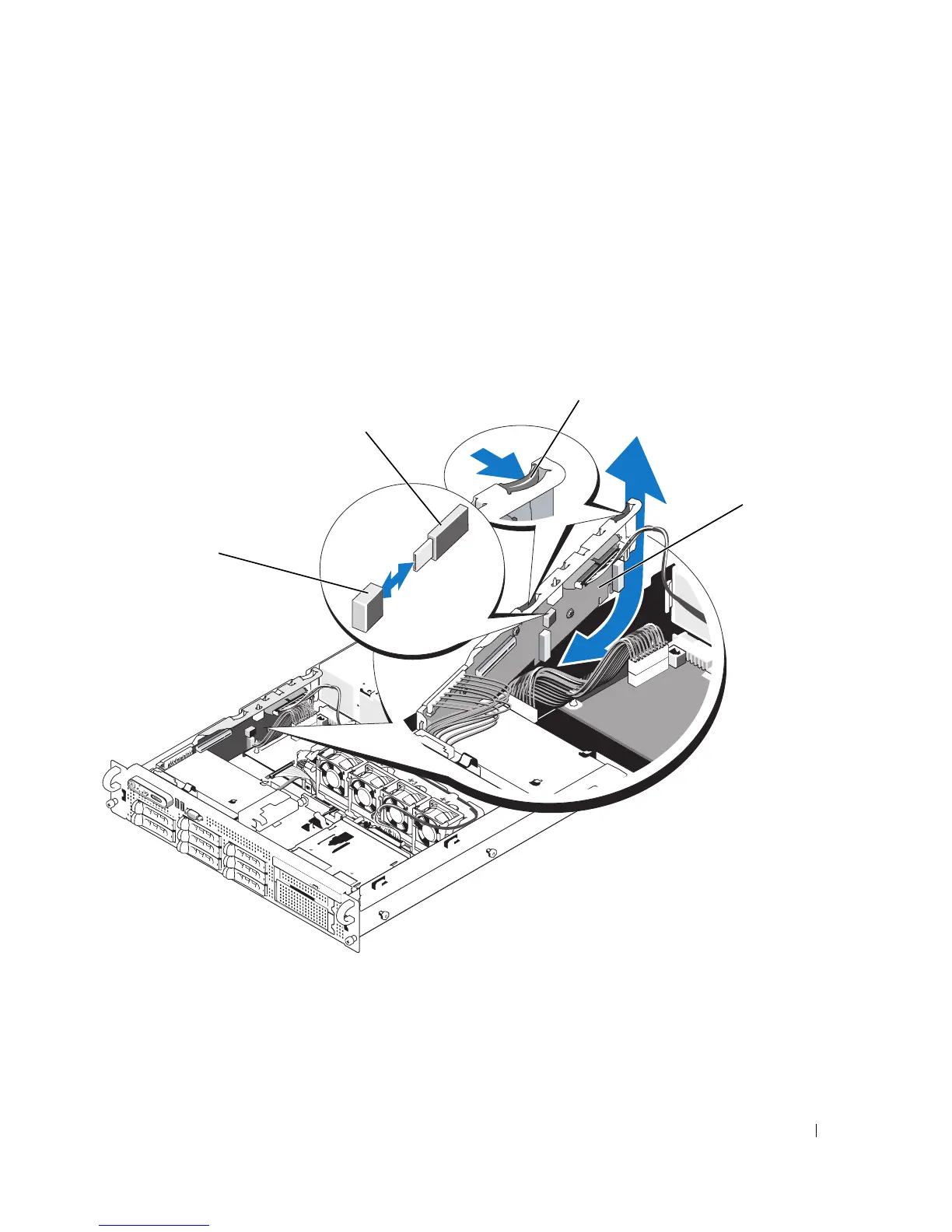

Figure 3-13. Installing an Internal USB Key
1 internal USB connector 2 USB memory key 3 sideplane latch
4 sideplane
1
2
4
3
