Installing System Components 75

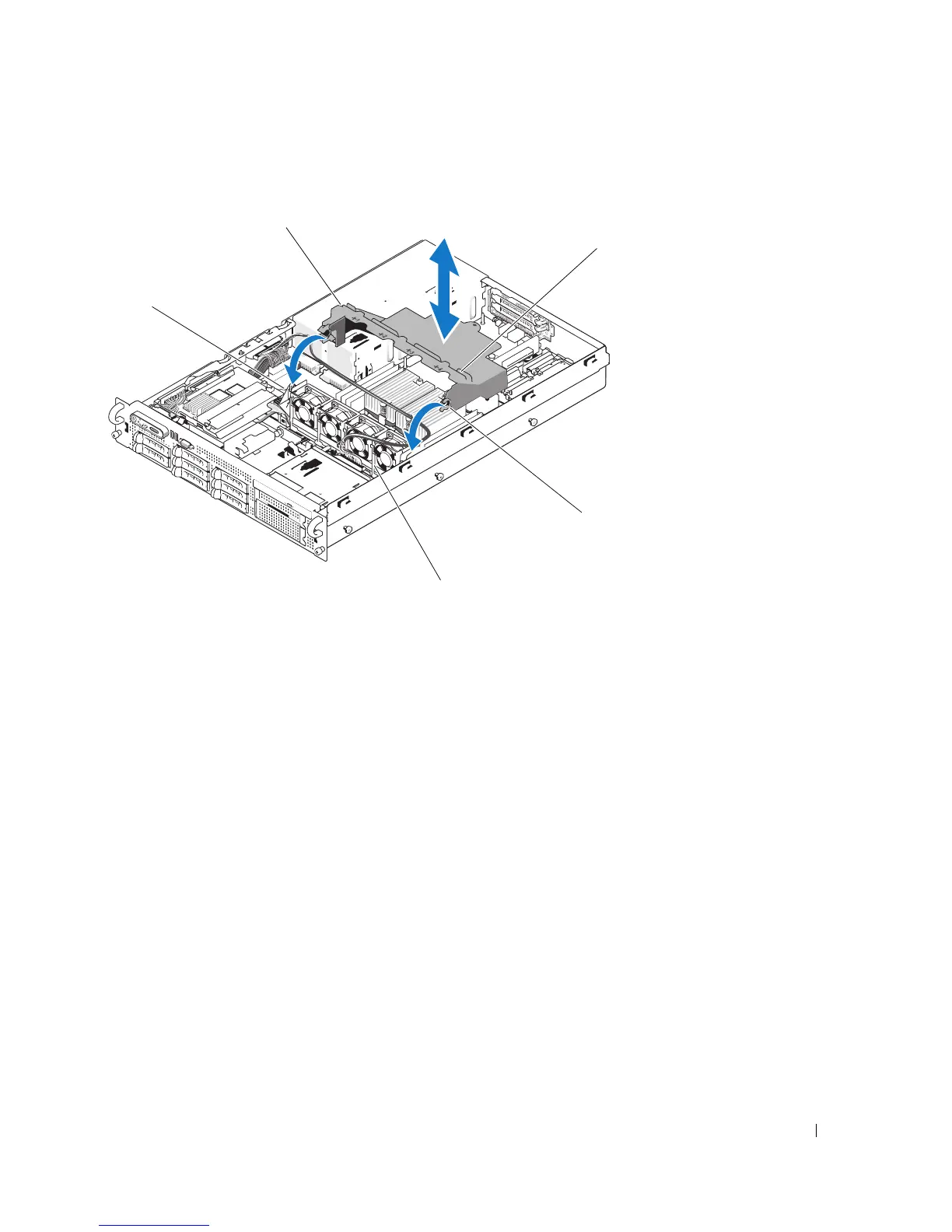

Figure 3-15. Removing and Installing the Cooling Shroud
Installing the Cooling Shroud
1
Align the hinges on the shroud with the pivots located on each end of the fan bracket. See Figure 3-15.
2
Lower the shroud straight down into the system until the hinges snap into place on the pivots.
3
Rotate the shroud down over the processor(s) and memory modules.
4
Route the optical drive cable through the cable tabs on top of the cooling shroud.
5
Reinstall the left riser board. See "Installing the Left Riser Board" on page 103.
6
Reinstall the expansion cards into the left riser board. "Installing an Expansion Card" on page 72.
7
Close the system. See "Closing the System" on page 56.
8
Reconnect the system to the electrical outlet and turn on the system and attached peripherals.
1 shroud pivots (2) 2 cooling shroud 3 cable tabs
4 shroud hinges (2) 5 fan bracket
1
4
2
5
3
