88 Installing System Components
2 Open the system. See "Opening the System" on page 55.
3 Remove the tape drive carrier from the media bay by squeezing the release tabs on either side of the
carrier down and forward, sliding the carrier gently from the bay. See Figure 3-23.
Figure 3-23. Removing and Installing the Tape Drive Carrier
4 Remove the four screws affixing the tape drive blank to the rails, and set the rails aside for installation
onto the drive. See Figure 3-24.
5 Prepare the tape drive for installation.
Ground yourself by touching an unpainted metal surface on the back of the system, unpack the drive
(and controller card, if applicable), and compare the jumper and switch settings with those in the drive
documentation.
6 Aligning the four holes on the tape drive with the four screw holes on the tape drive rails, affix the rails
to the drive.
7 Insert the tape drive along the rails in the media bay. See Figure 3-24.

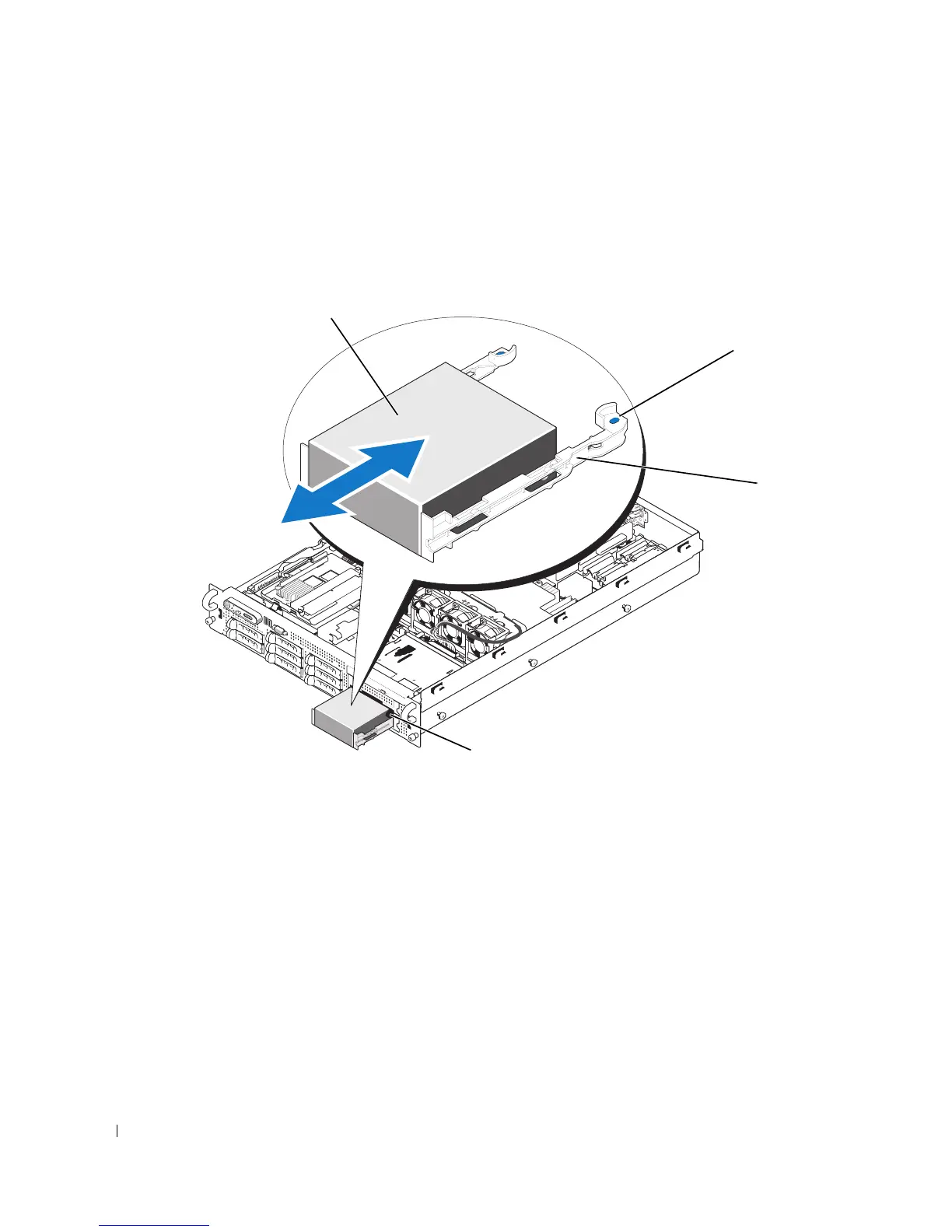

1 tape drive blank 2 release tab (2) 3 tape drive rails
4 media bay
