Dell PowerEdge FC640 User Manual

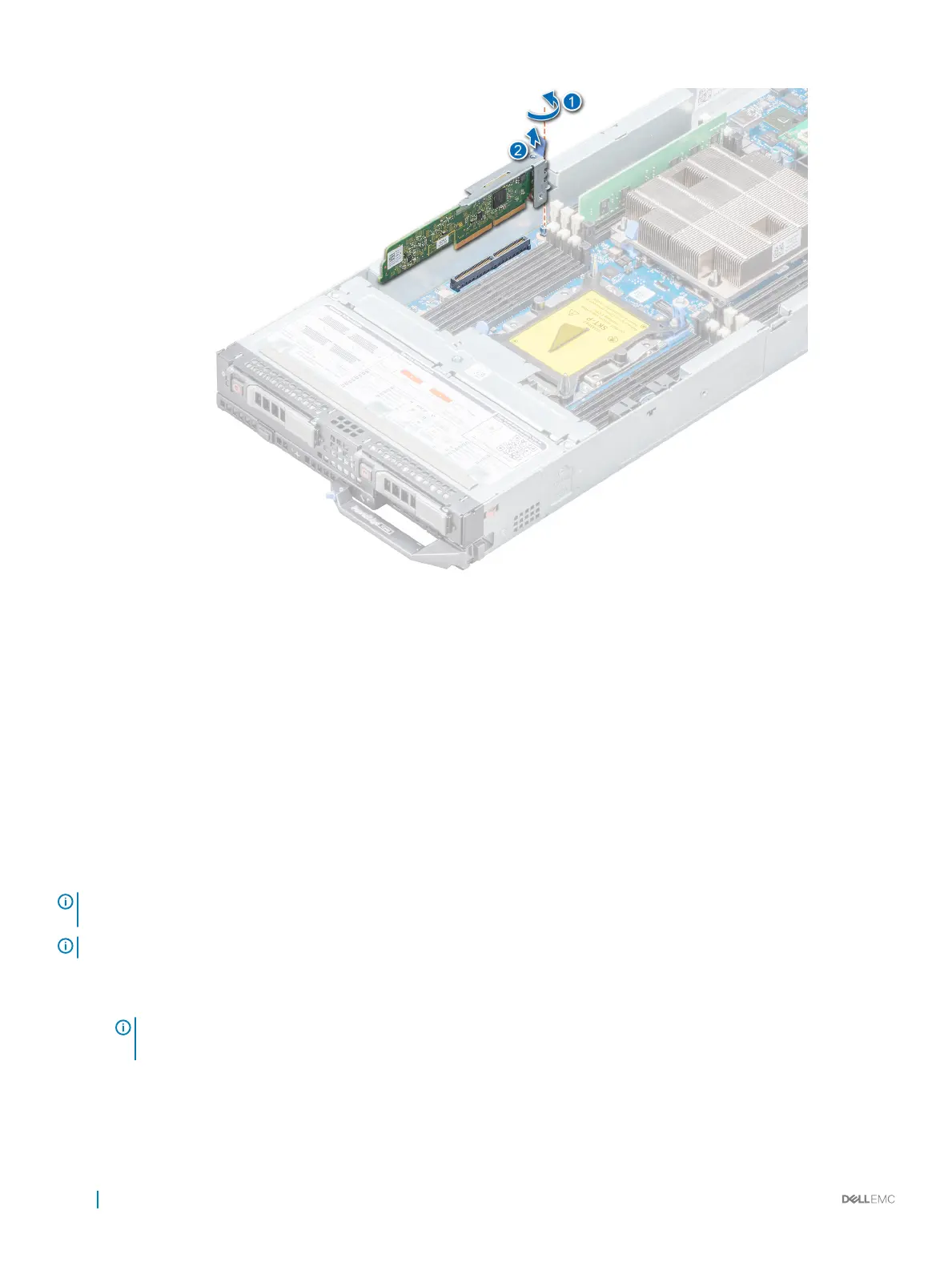

Figure 45. Removing the optional IDSDM module
Next step
Install the IDSDM.
Related link
Removing the air shroud
Removing the drive backplane
Installing the optional internal dual SD module
Installing the optional internal dual SD module
Prerequisites
Follow the safety guidelines listed in Safety instructions.
NOTE
: You must install either the Internal dual SD module (IDSDM) or the BOSS M.2 card in the same IDSDM/BOSS M.2
connector.
NOTE: The procedure to install IDSDM and the BOSS M.2 card is the same.
Steps
1 Holding both ends of the IDSDM, insert the IDSDM into the IDSDM/BOSS M.2 connector on the system board.
NOTE
: For information on the location of the IDSDM/BOSS M.2 connector, see the System board jumpers and
connectors section.
2 Push the release tab that secures the IDSDM to the system board, in place.
3 Using the Phillips #2 screwdriver, tighten the retention screw that connects the internal dual SD module (IDSDM) to the system board.
90
Installing and removing system components

Dell PowerEdge FC640 Specifications

General

Management	iDRAC9 with Lifecycle Controller
Processor	Up to two Intel Xeon Scalable processors
Memory Slots	16 DIMM slots
Storage	Up to 2 x 2.5" SAS/SATA HDD/SSD
RAID Support	PERC H330
Chassis	Dell PowerEdge FX2/FX2s
Power Supply	Part of the FX2/FX2s chassis
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
Network	2 x 10GbE
