Dell PowerEdge T610 User Manual

Installing System Components 111

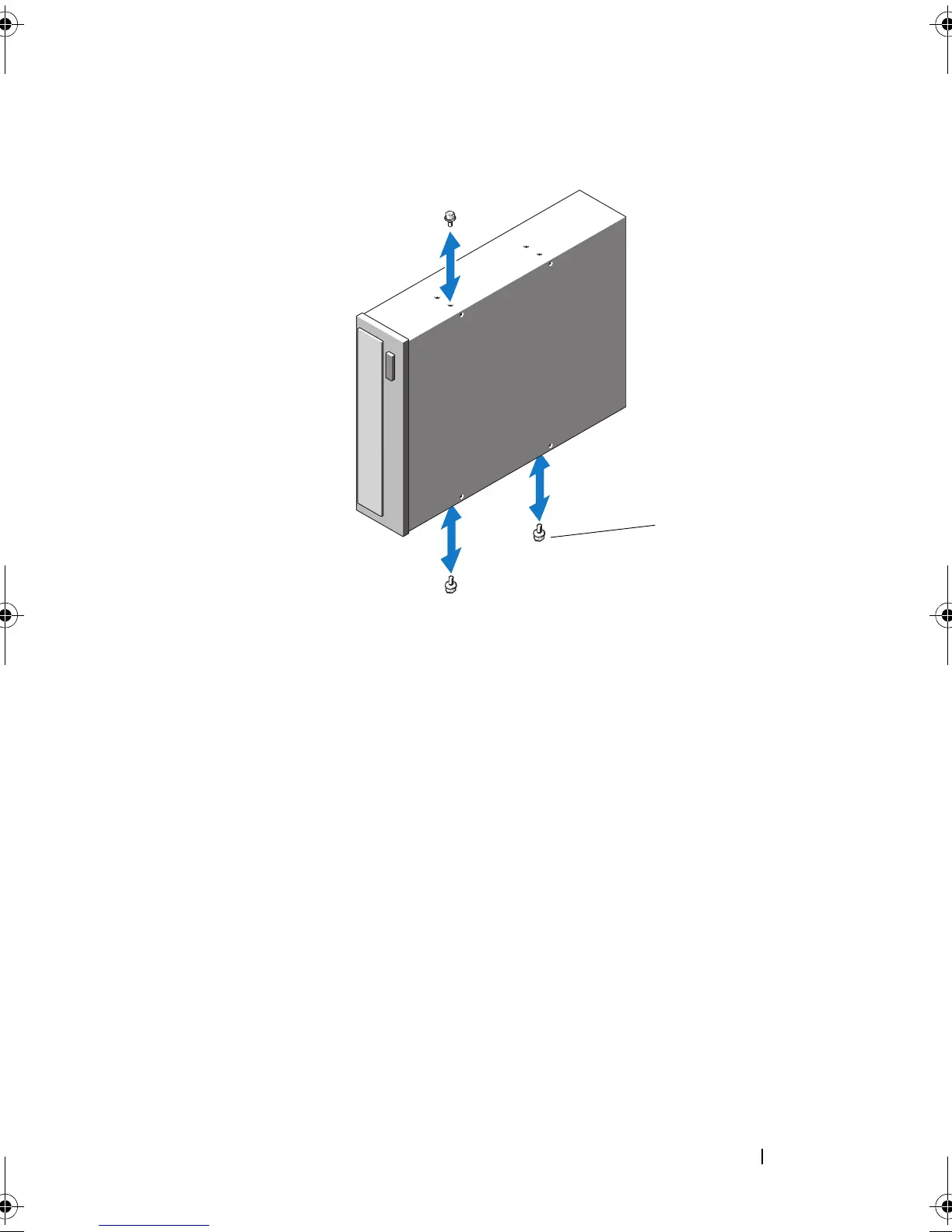

Figure 3-16. Installing Optical or Tape Drive Shoulder Screws
9 Gently slide the drive into the drive bay, inserting the drive alignment
screws into the drive bay screw slots. The drive release latch locks into
place when the drive is secure. See Figure 3-15.
10 Attach the SATA power cable, SAS power cable, or SCSI power cable to
the drive.
Ensure that the cables are secured in their respective clips.
11 Attach the data cable, and check the cable connections:
• If you are installing a SATA optical or tape drive, connect the cable
from the SATA connector on the drive to the SATA connector on the
system board. See Figure 6-1 to locate the SATA connectors on the
system board.
• If you are installing a SAS tape drive, connect the cable from
connector SAS_0 on the SAS expansion card to the tape drive. See
"Installing an Expansion Card" to install a SAS expansion card.
1screws (3)
1
book.book Page 111 Tuesday, September 15, 2009 10:08 AM

Dell PowerEdge T610 Specifications

General

Form Factor	5U Tower
Chipset	Intel 5520
Memory Slots	12 DIMM slots
Processor	Up to two Intel Xeon 5500 or 5600 series processors
Memory	1GB/2GB/4GB/8GB/16GB DDR3
Drive Bays	Up to 8 x 3.5" or 16 x 2.5" hot-swap SAS, SATA or SSD
RAID Controller	PERC 6/i, PERC H700, PERC H800
Power Supply	570W or 870W
Network Interface	Embedded Broadcom NetXtreme II 5709c Gigabit Ethernet
Maximum Internal Storage	Up to 16TB
Expansion Slots	6 PCIe slots
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
