Installing System Components 133

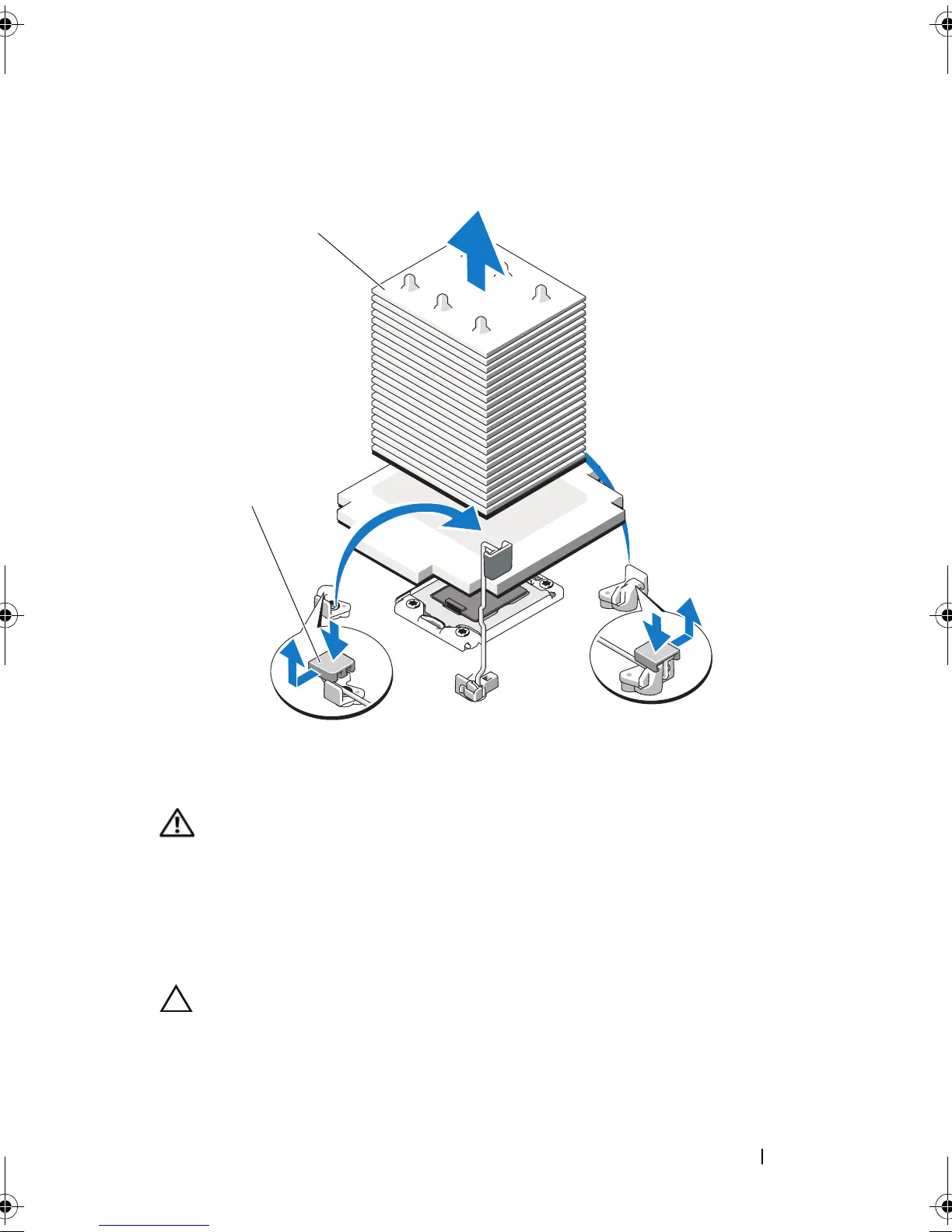

Figure 3-21. Installing and Removing a Heat Sink
WARNING: The processor is held in its socket under strong pressure. Be aware
that the release lever can spring up suddenly if not firmly grasped.
10 Position your thumb firmly over the processor socket-release lever and
release the lever from the locked position. Rotate the lever 90 degrees
upwards. See Figure 3-22.
11 Rotate the processor shield upwards and out of the way. See Figure 3-22.
CAUTION: Be careful not to bend any of the pins on the ZIF socket when removing
the processor. Bending the pins can permanently damage the system board.
12 Lift the processor out of the socket and leave the release lever up so that
the socket is ready for the new processor.
1 heat sink 2 heat-sink retention latch (2)
1
2
book.book Page 133 Tuesday, September 15, 2009 10:08 AM

Dell PowerEdge T610 Specifications

General

Form Factor	5U Tower
Chipset	Intel 5520
Memory Slots	12 DIMM slots
Processor	Up to two Intel Xeon 5500 or 5600 series processors
Memory	1GB/2GB/4GB/8GB/16GB DDR3
Drive Bays	Up to 8 x 3.5" or 16 x 2.5" hot-swap SAS, SATA or SSD
RAID Controller	PERC 6/i, PERC H700, PERC H800
Power Supply	570W or 870W
Network Interface	Embedded Broadcom NetXtreme II 5709c Gigabit Ethernet
Maximum Internal Storage	Up to 16TB
Expansion Slots	6 PCIe slots
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
