Item Indicator Icon Description
8 Drive activity indicator
NOTE: The associated physical disk is
indicated by a number (0 to 11) that is
displayed above the drive activity indicator.
For example, for physical disk 2 on the
physical disk drawer, the drive activity
indicator has 2 displayed above the drive
activity indicator.
Green Indicates that power is on
and the physical disk is
operating normally.
Blinks green Indicates I/O activity for that
physical disk.
Off Indicates that there is no
power reaching the drive or
a drive is not installed.

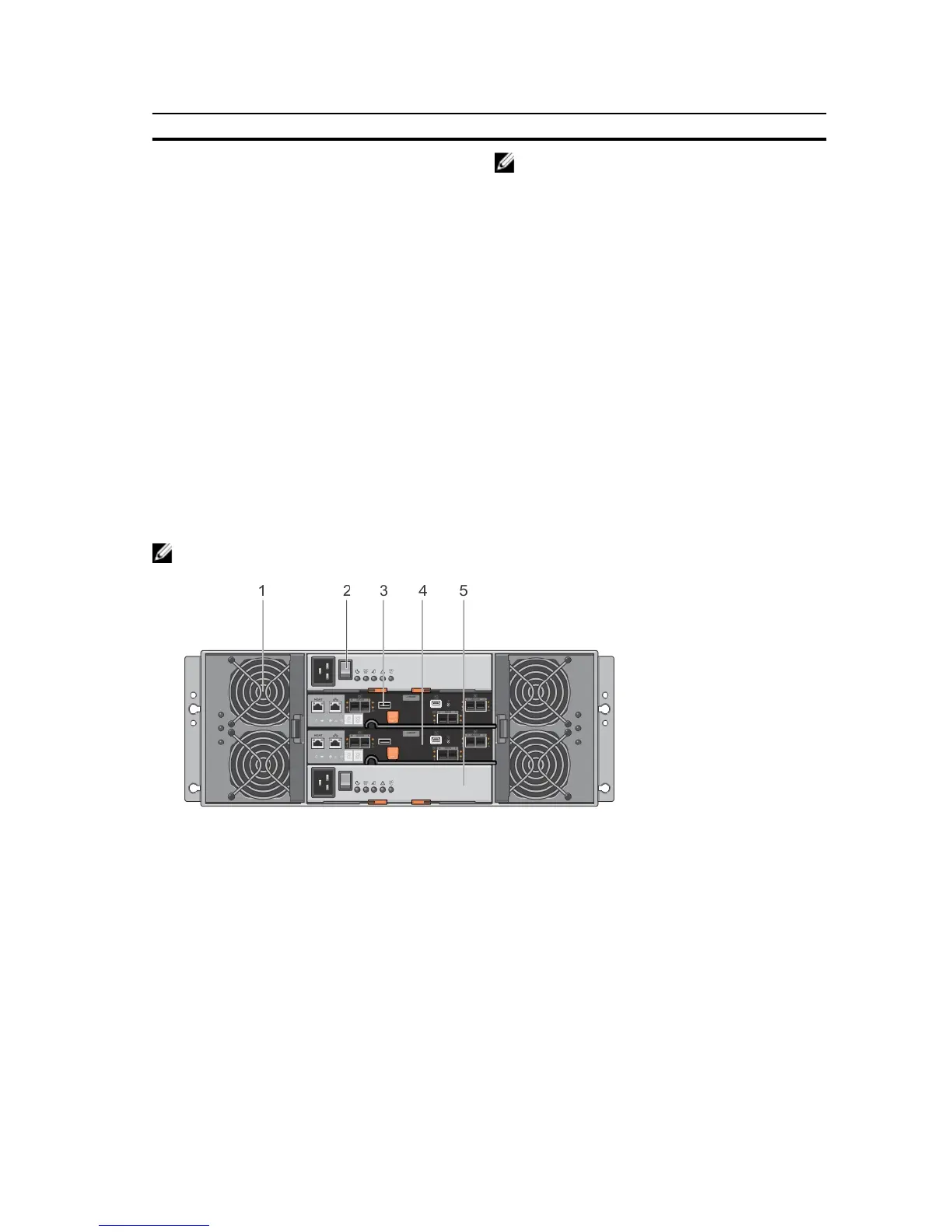

Back-Panel Features
NOTE: The following illustration displays the Dell PowerVault MD3860f storage enclosure.
Figure 4. Back-Panel Features
1. cooling fan module (2) 2. power supply switch (2)
3. USB port 4. raid controller module (2)
5. power supply module (2)
10
