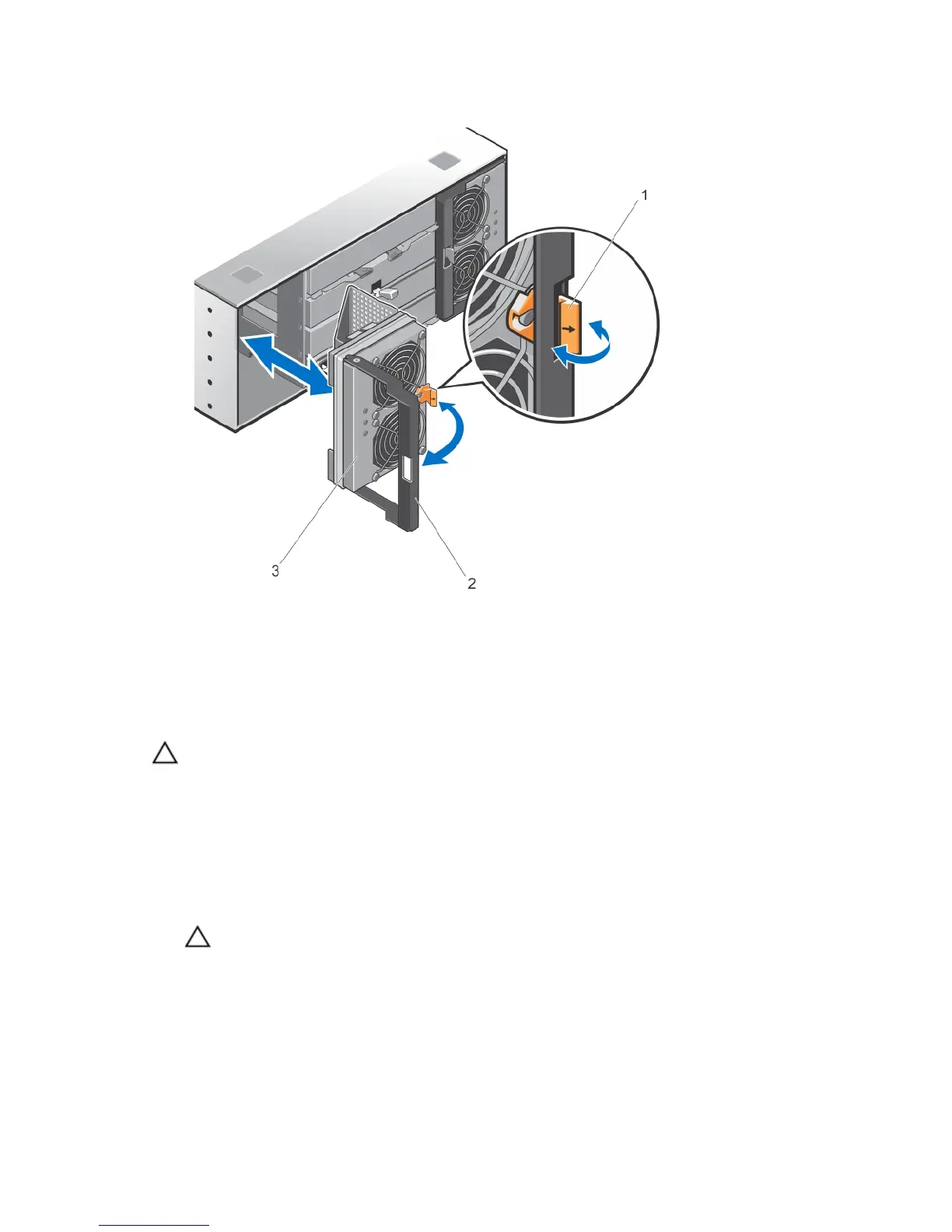

Figure 27. Removing and Installing the Cooling Fan Module
1. cooling fan module release latch 2. cooling fan module handle
3. cooling fan module
Installing A Cooling Fan Module
CAUTION: Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that came with the product.
1. Align the cooling fan module with the slot on the back of the chassis.
2. Slide the cooling fan module into the slot until it is properly seated.
3. Rotate the cooling fan module handle toward the chassis until the cooling fan module handle locks
in place.
CAUTION: For proper cooling of the storage array, ensure that all the cooling fans are
operational at all times.
