Installing and removing system
components
Recommended Tools
You may need the following items to perform the procedures in this section:
• #2 Phillips screwdriver
• T8 and T15 Torx screwdrivers
• Wrist grounding strap connected to ground
Removing And Installing The Front Bezel
Installing The Front Bezel
You must install the front bezel on the system to secure the disk drawers against accidental removal.
1. Align the slots on the back of the bezel with the guide pins on the front of the chassis.
2. Push the bezel toward the chassis until the bezel is seated properly and the release latches snap into
place.

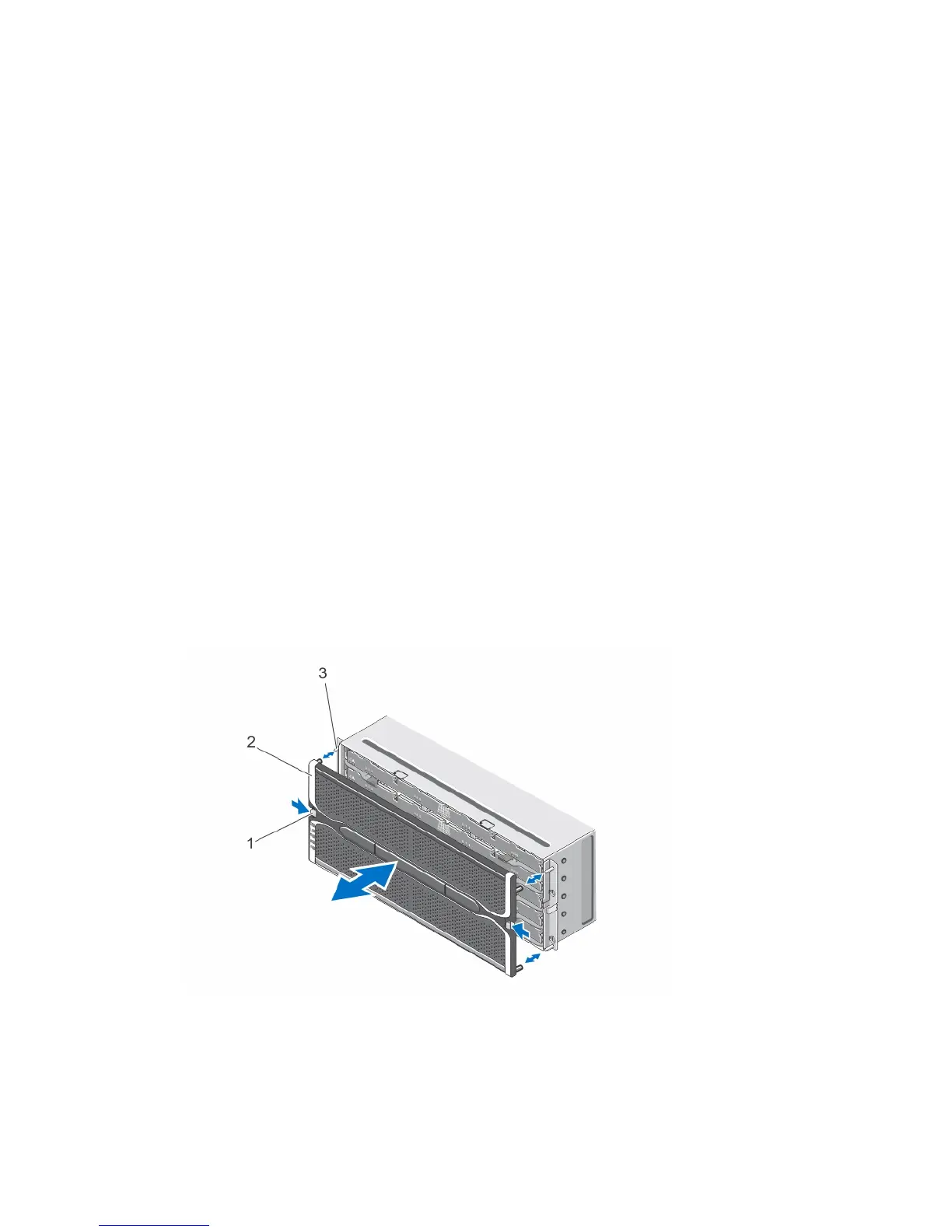

Figure 12. Removing and Installing the Front Bezel
1. release latches (2) 2. front bezel
