Replacing The SFP+ Transceiver
CAUTION: Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that came with the product.
The SFP+ transceivers are used to connect the Fibre Channel cables to the MD3860f storage enclosure.
1. Locate and identify the faulty SFP+ transceiver.
2. Disconnect the interface cables from the SFP+ transceiver.
3. Remove the failed SFP+ transceiver from the controller.

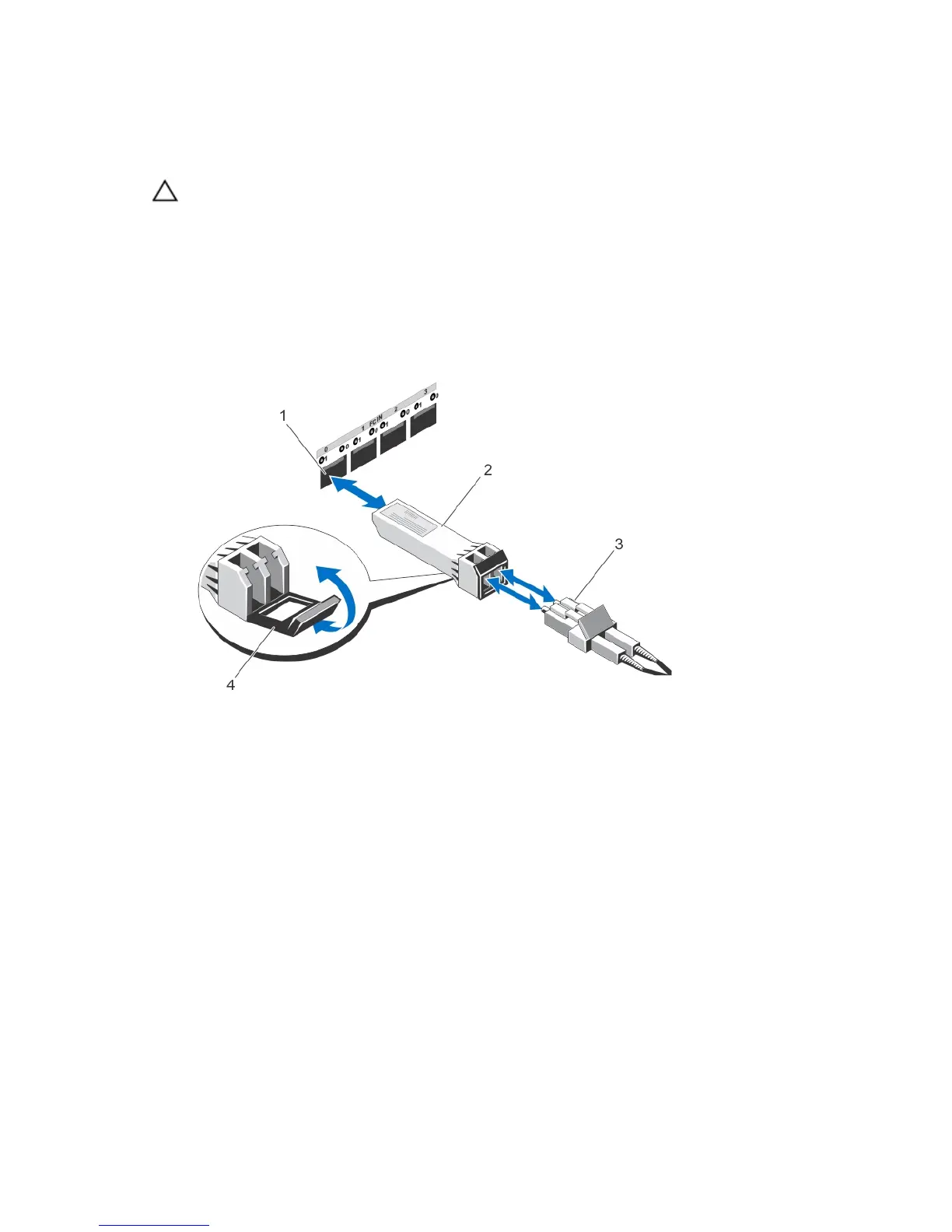

Figure 24. Replacing the SFP+ Transceiver
1. FC IN slot (4) 2. SFP+ transceiver
3. fibre optic cable 4. gate
4. Install the new SFP+ transceiver into the controller.
5. Reconnect the interface cable.
