Delta Electronics AC Servo Drive ASDA-AB User Manual

Chapter 3 Connections and Wiring|ASDA-AB Series
Revision January 2009 3-7

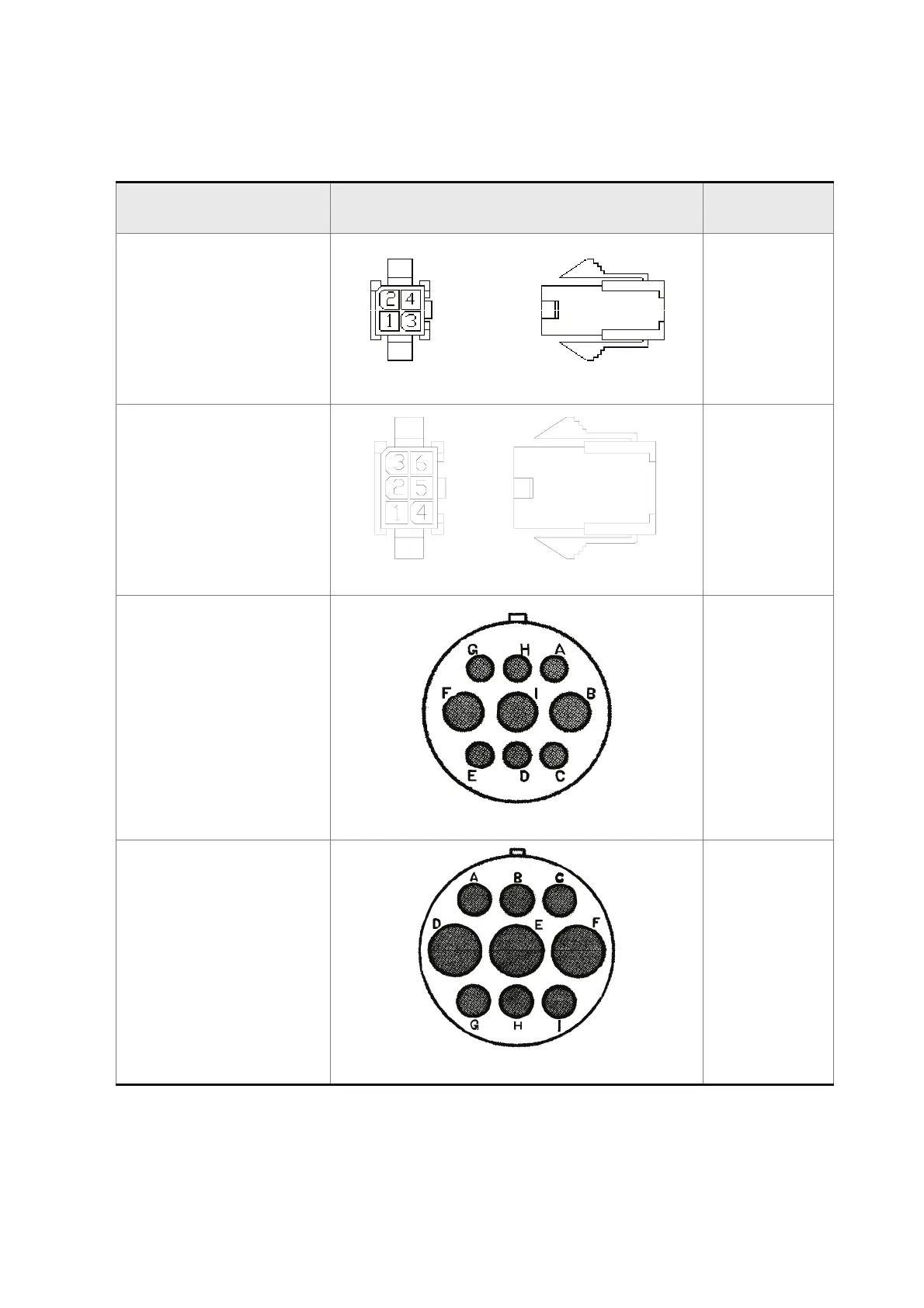

3.1.4 Motor Power Cable Connector Specifications
The boxes () in the model names are for optional configurations. (Please refer to section 1.2 for model
explanation.)
Motor Model Name U, V, W / Electromagnetic Brake Connector
Terminal
Identification
ECMA-C30401S (100W)
ECMA-C30602S (200W)
ECMA-C30604S (400W)
ECMA-C308047 (400W)
ECMA-C30807S (750W)
HOUSING: JOWLE (C4201H00-2*2PA)
A
ECMA-C30401S (100W)
ECMA-C30602S (200W)
ECMA-C30604S (400W)
ECMA-C308047 (400W)
ECMA-C30807S (750W)
HOUSING: JOWLE (C4201H00-2*3PA)
B
ECMA-C31010S (1000W)
ECMA-E31310S (1000W)
ECMA-E31315S (1500W)
ECMA-C31020S (2000W)
3106A-20-18S
C
ECMA-E31820S (2000W)
3106A-24-11S
D
