Delta Electronics AC Servo Drive ASDA-AB User Manual

Chapter 3 Connections and Wiring|ASDA-AB Series
Revision January 2009 3-35

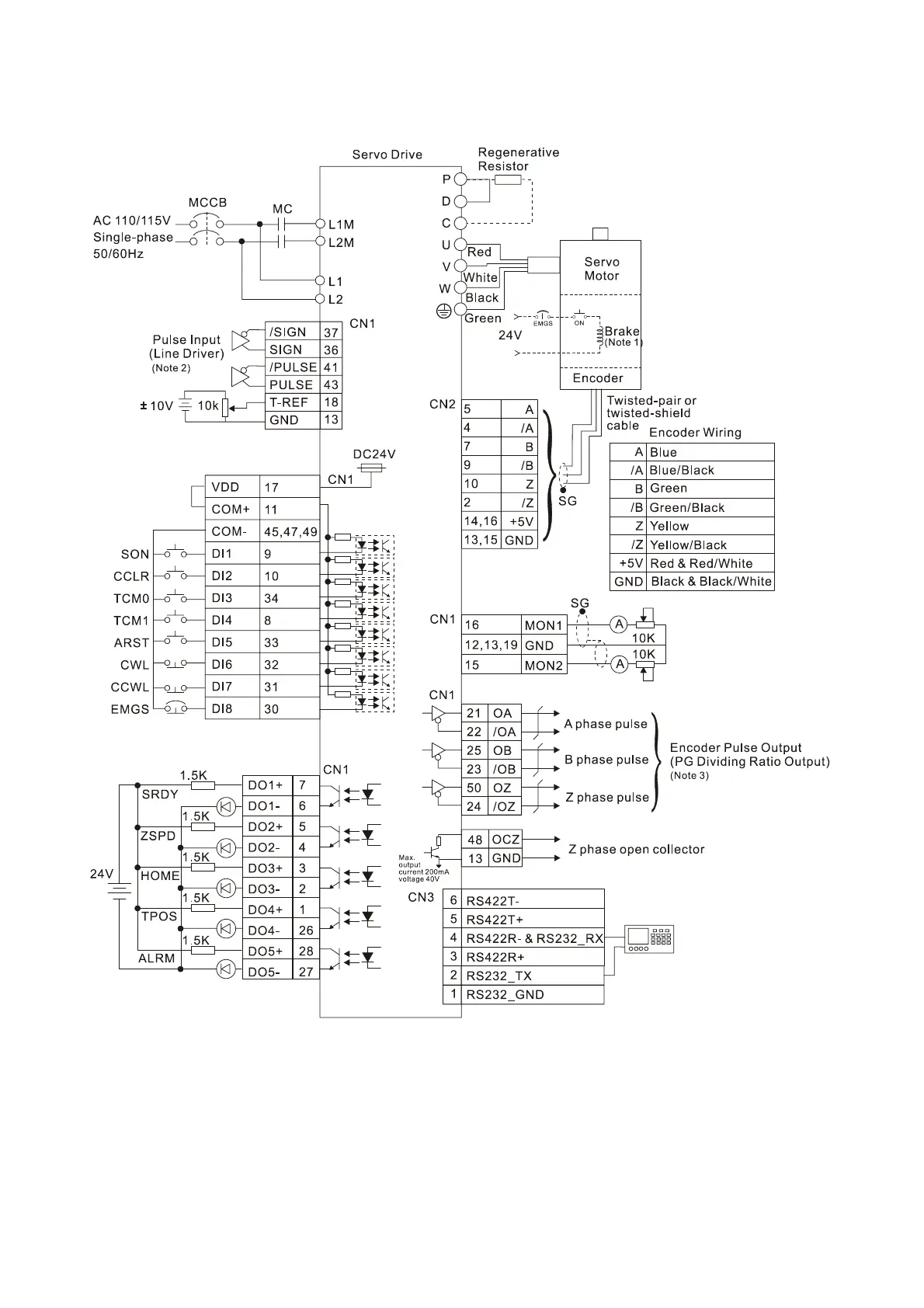

3.6.2 Position (Pt) Control Mode (110V models)
Note:
1 The coil of brake has no polarity.
2. Please refer to C4 wiring diagram on page 3-26. If it is open-collector input, please refer to C3
wiring diagram on page 3-26.
3. Please refer to parameter P1-46 in Chapter 7.
