Chapter 3 Connections and Wiring|ASDA-AB Series
3-34 Revision January 2009

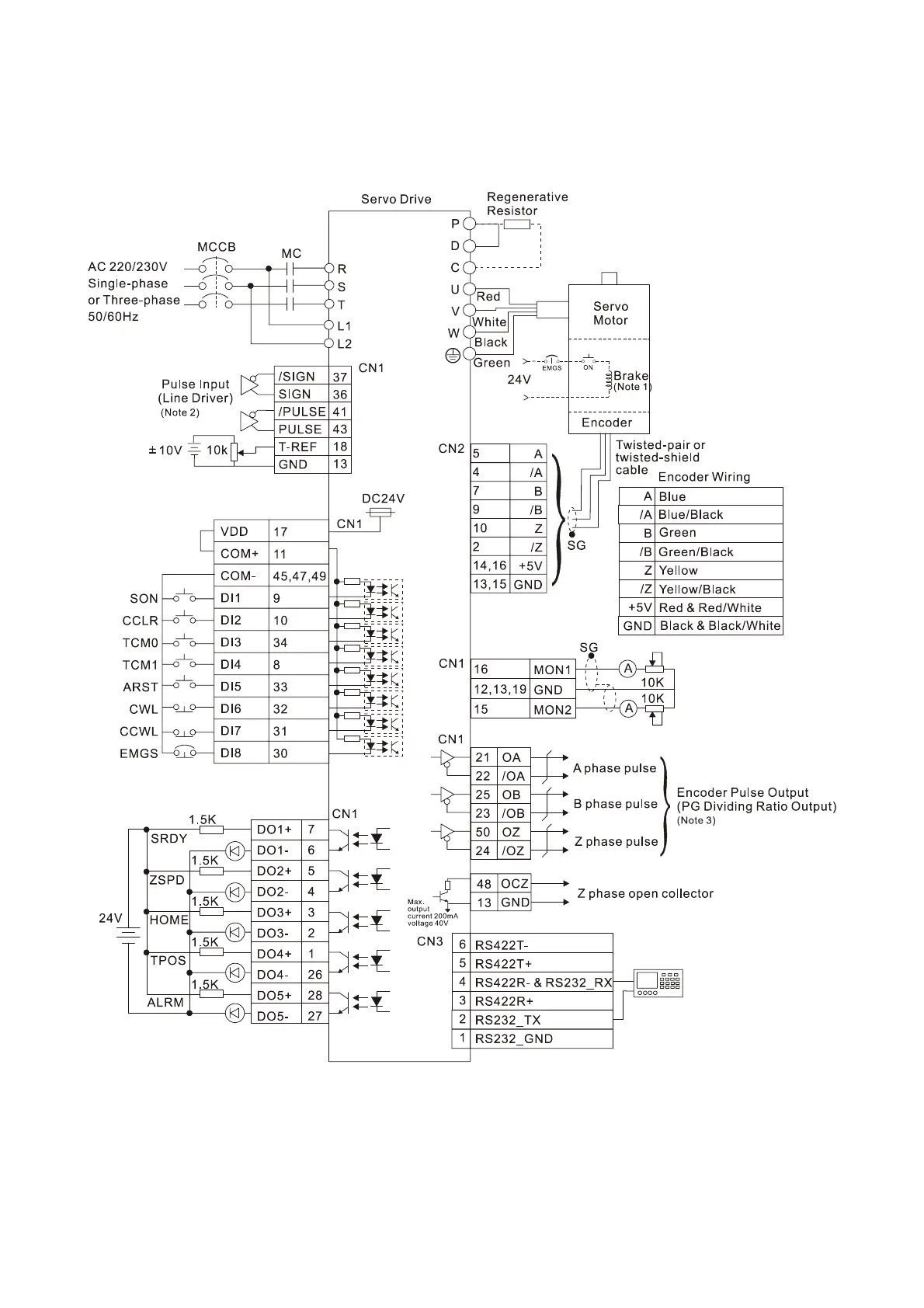

3.6 Standard Connection Example
3.6.1 Position (Pt) Control Mode (220V models)
Note:
1 The coil of brake has no polarity.
2. Please refer to C4 wiring diagram on page 3-26. If it is open-collector input, please refer to C3
wiring diagram on page 3-26.
3. Please refer to parameter P1-46 in Chapter 7.
