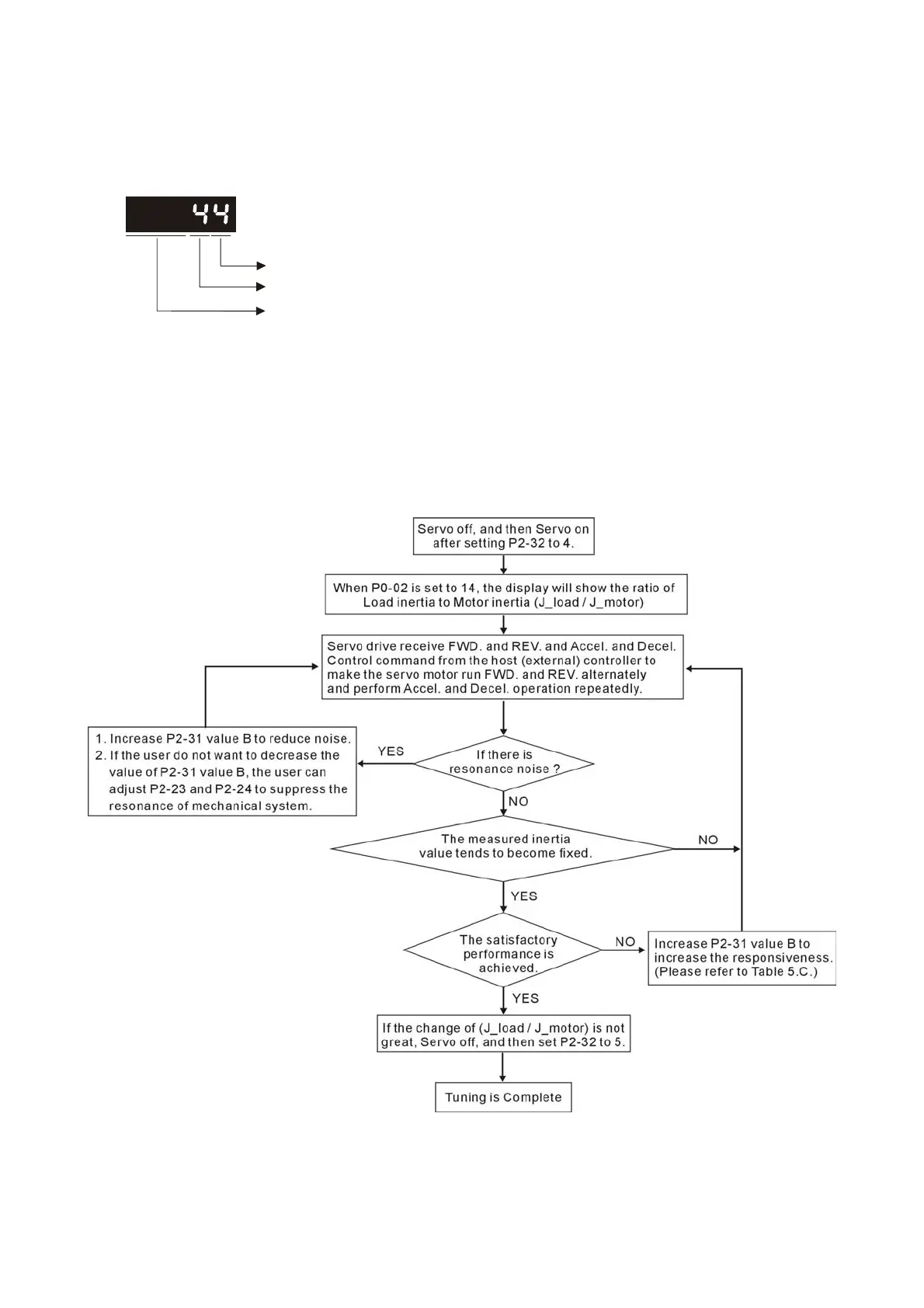

5.6.4 AutoMode (PDFF) Tuning Flowchart
Set P2-32 to 4 (4: AutoMode (PDFF) [Continuous adjustment] )
P2-31 Auto Mode Responsiveness Level (Default setting: B=4)
not used
A
B
A: No function
B: Responsiveness level of auto-tuning mode
In AutoMode (PDFF), the value “B” indicates the
responsiveness setting. When the setting value is
higher, the responsiveness is faster.
Adjust P2-31: Increase the setting value of P2-31. Increase the value “B” to speed the responsiveness
or reduce the noise.
Continuously adjust until the satisfactory performance is achieved, and then set P2-32 to 5 (5:
AutoMode (PDFF) [Fix the ratio of Load Inertia to servo motor inertia and response level can be
adjusted] ) to finish the tuning procedure.
