ATTACH HORIZONTAL WORK CLAMP
The horizontal work clamp secures the
workpiece to the fence to provide more
stability and keeps the workpiece from
creeping toward the saw blade. Depending
on the cutting operation and the size of
the workpiece, it may be preferable to use
a C-clamp instead of the work clamp to
secure the workpiece to the miter table
prior to making the cut.

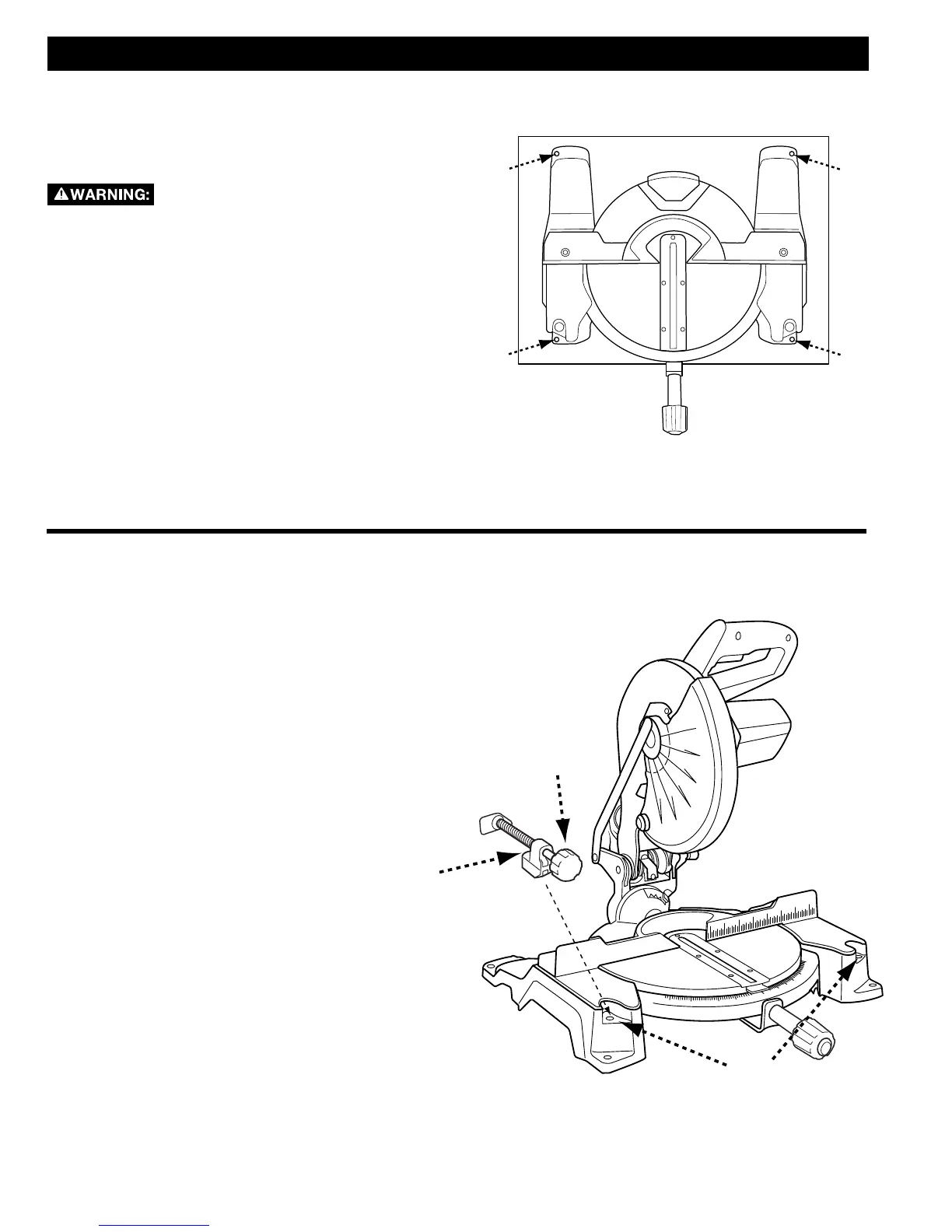

To install the horizontal work clamp, see
Figure 5 and do the following:
1. Place the clamp shaft (A) in either hole
(B) on the miter table base.
2. Rotate the knob (C) on the
clamp clockwise to move it in or
counterclockwise to move it out as
needed.
ASSEMBLY
FIGURE 4
FIGURE 5
To ensure safe and accurate operation,
this saw should be mounted to a stable
and level surface such as a workbench. To mount the
tool to a stable surface, refer to Figure 4 and do the
following:
1. Locate the four mounting holes in the base of the
saw (A).
2.
diameter machine bolts, lock washers, and hex nuts
(not included). Make sure the bolts are long enough
to accommodate the saw base, lock washers, hex
nuts, and the thickness of the workbench.
3. Tighten all four bolts securely.
4. Check to make sure that the saw is secure before
operation.
A
A
A
A
1
2
3
4
5
6
7
B
A
C
MOUNTING THE SAW TO A
STABLE SURFACE
To Next Page
