screws on each side of the saw arm for making fine
adjustments at 0° and 45°.
M.
attaches and detaches quickly with the integrated
clamp for easy cleaning.
blade guard is made of shock-resistant, see-
through plastic that provides protection from each
side of the blade. It automatically retracts over the
upper blade guard as the saw is lowered into the
workpiece.
compound miter saw. It will cut materials up to 3-1/2
in. thick or 5-1/2 in. wide, depending upon the angle
at which the cut is being made.
P. TRIGGER SWITCH: The saw blade is activated by
an easy-to-use trigger switch. When not in use the
saw should be disconnected from the power supply
and switch locked in the off position using a padlock
(not included) inserted through the hole in the switch
trigger. A lock with a long shackle up to 5/16 in.
diameter may be used. The padlock and key should
be stored in separate locations.
Q.
locks the spindle preventing the blade from rotating
while removing or installing the blade screw.
R. ELECTRIC BRAKE: An electric brake has been
provided to more quickly stop blade rotation after
the switch is released. (not shown)
S. LASER GUIDE: For more accurate cuts, a laser
guide is included with your miter saw. When used
properly, the laser guide makes accurate, precision
cutting simple and easy. (not shown)
8
Check shipping carton and machine for damage before unpacking. Carefully remove packaging materials, parts and
machine from shipping carton. Always check for and remove protective shipping materials around motor and moving
parts. Lay out all parts on a clean work surface.
Compare the items to inventory figures; verify that all items are accounted for before discarding the shipping carton.
Report any missing or damaged parts, please call Company’s Customer Care Center at 800-223-7278. Prior to tool
assembly and use, read this manual thoroughly to familiarize yourself with proper assembly, maintenance and safety
procedures.
If any parts are missing, do not attempt to plug in the power cord and turn the power on. The saw should only be
energized after all parts have been located and correctly assembled.
UNPACKING AND ASSEMBLY

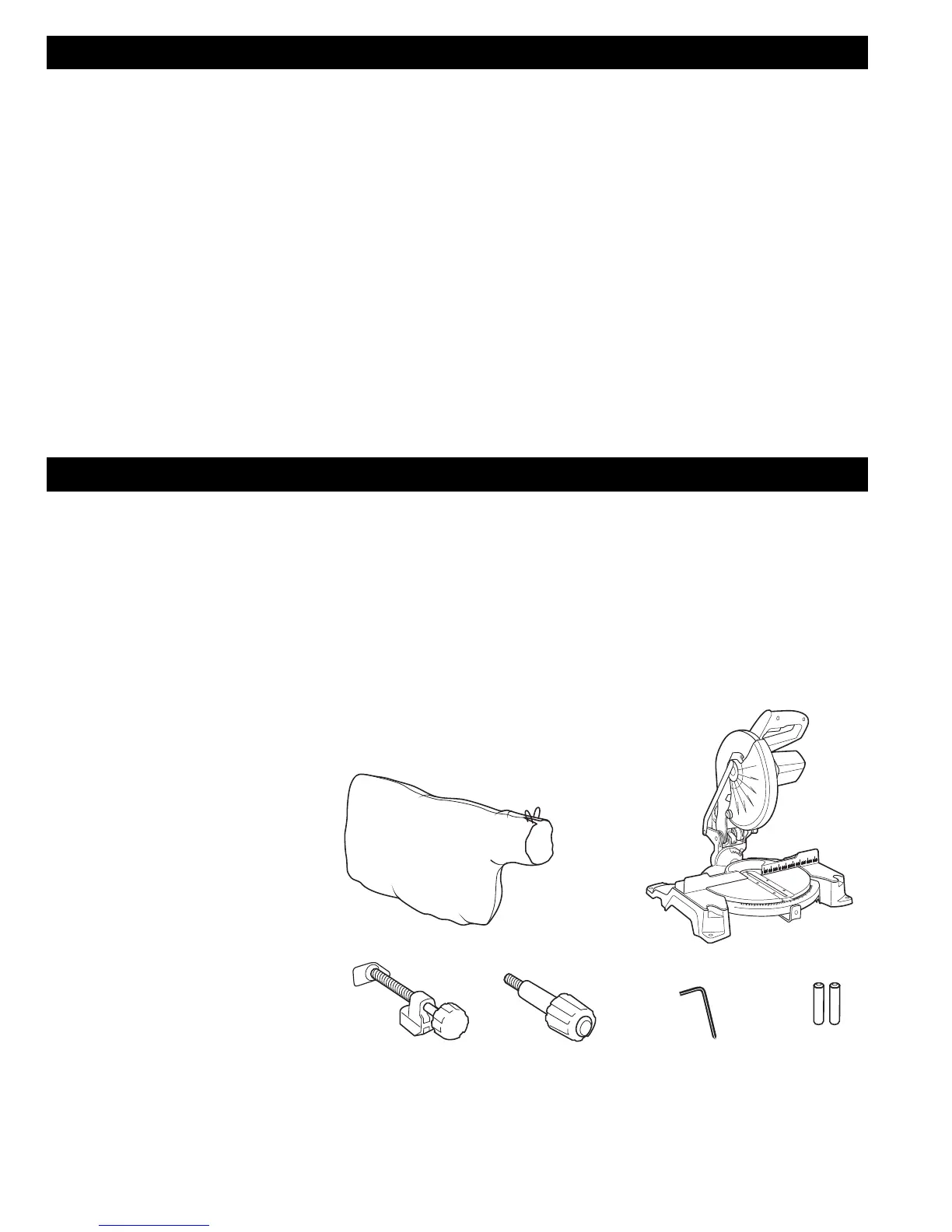

CONTENTS DESCRIPTION (QTY)
A. Homecraft® #H26-260L 10-inch
compound miter saw (1)
B. Dust collection bag (1)
C. Horizontal Work Clamp (1)
D. Miter Lock Knob (1)
E. Blade Wrench (1)
F. AAA Batteries (2)
G.
A
B
C
D
E
F
FEATURES
