11
ASSEMBLY

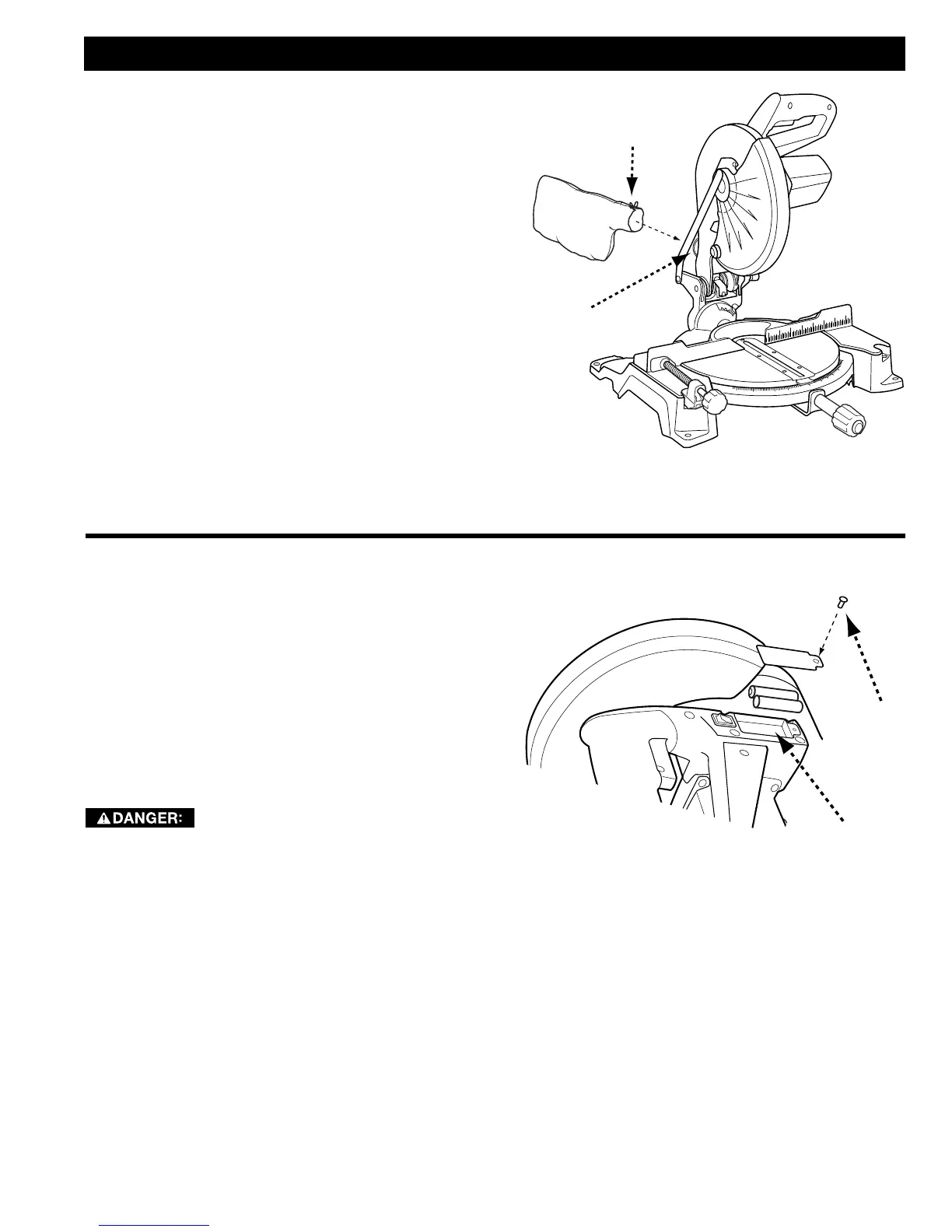

INSTALL DUST COLLECTION BAG
The tool includes a dust collection bag that attaches
over the exhaust port on the upper blade guard.
See Figure 6, then:
1. Squeeze the two metal clips (A) at the mouth of the
bag.
2. Slide the clips over it the exhaust port (B) until the
metal ring in the bag locks between the grooves on
the exhaust port.
reverse the above procedure.
FIGURE 7
FIGURE 6
1
2
3
4
5
6
7
B
A
A
B
INSTALL BATTERIES FOR LASER
1. The battery compartment (A) is located in the
control arm on the rear of the saw.
2. Using the Phillips end of the supplied blade wrench,
remove the screw (B) securing the compartment
cover and lift off the cover.
3. Install two AAA batteries (supplied) as shown on the
diagram in the compartment.
4. Replace the cover and secure with the screw.
Laser radiation. Avoid direct eye
contact with light source.
