Amplon N Series
Chapter 3 : Operation Panel
SETUP
ON
OFF
Hz
KW
KVA
V
MIN
%
IN OUT
SET TEST BATT LOAD
RUN TIME
!
°C

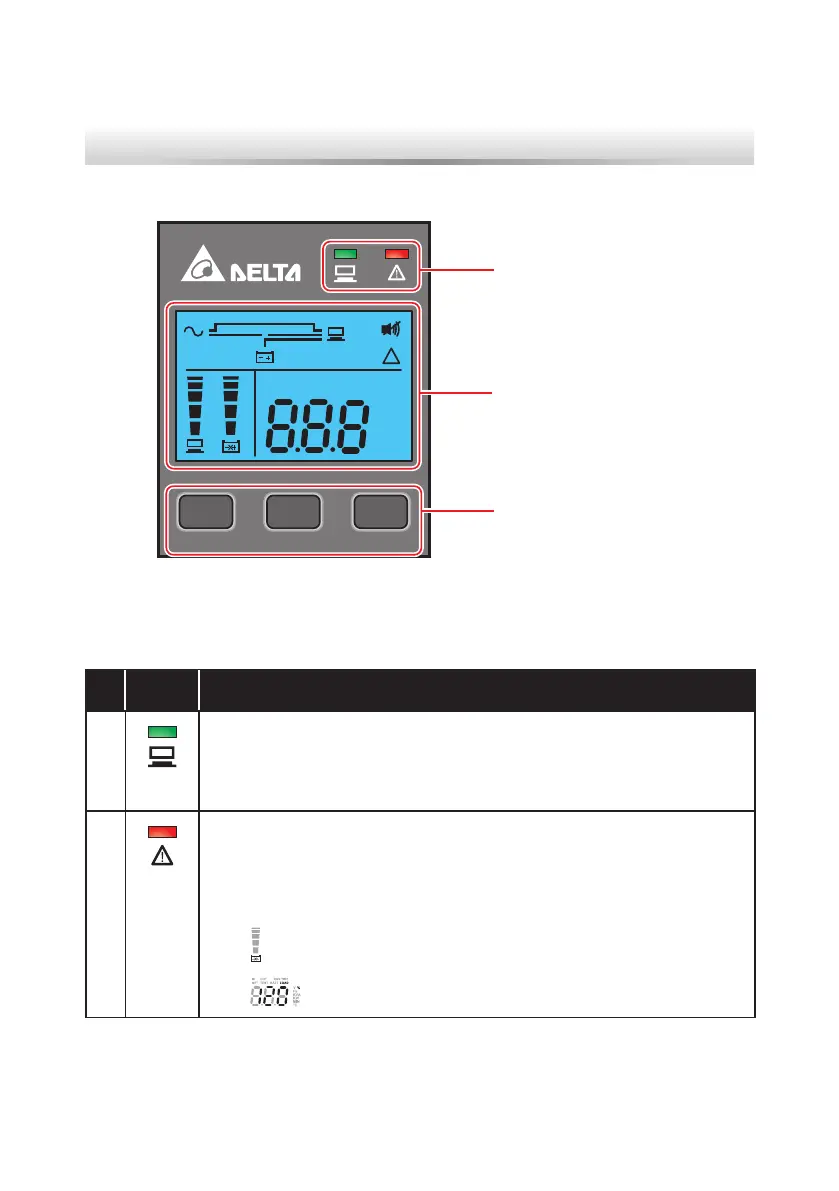

3.1 LED Indicators
3.3 LCD Display (inclduing
3.4 7-Segment Display)
3.2 Multi-function Buttons
3.1 LED Indicators
No. LED Description
1
Indicates the output status.
1. ON (green): There is output
2. OFF: There is no output
2
1. ON (red): The UPS detects an internal fault or an environmental
fault. You could refer to 3.3 LCD Display - No. 9 for more infor-
mation.
2. Flashing (red): The UPS has the following warning message(s).
a.
:There is no battery or battery replacement is needed.
b.
:The UPS is overloaded.
To Next Page
