Amplon N Series

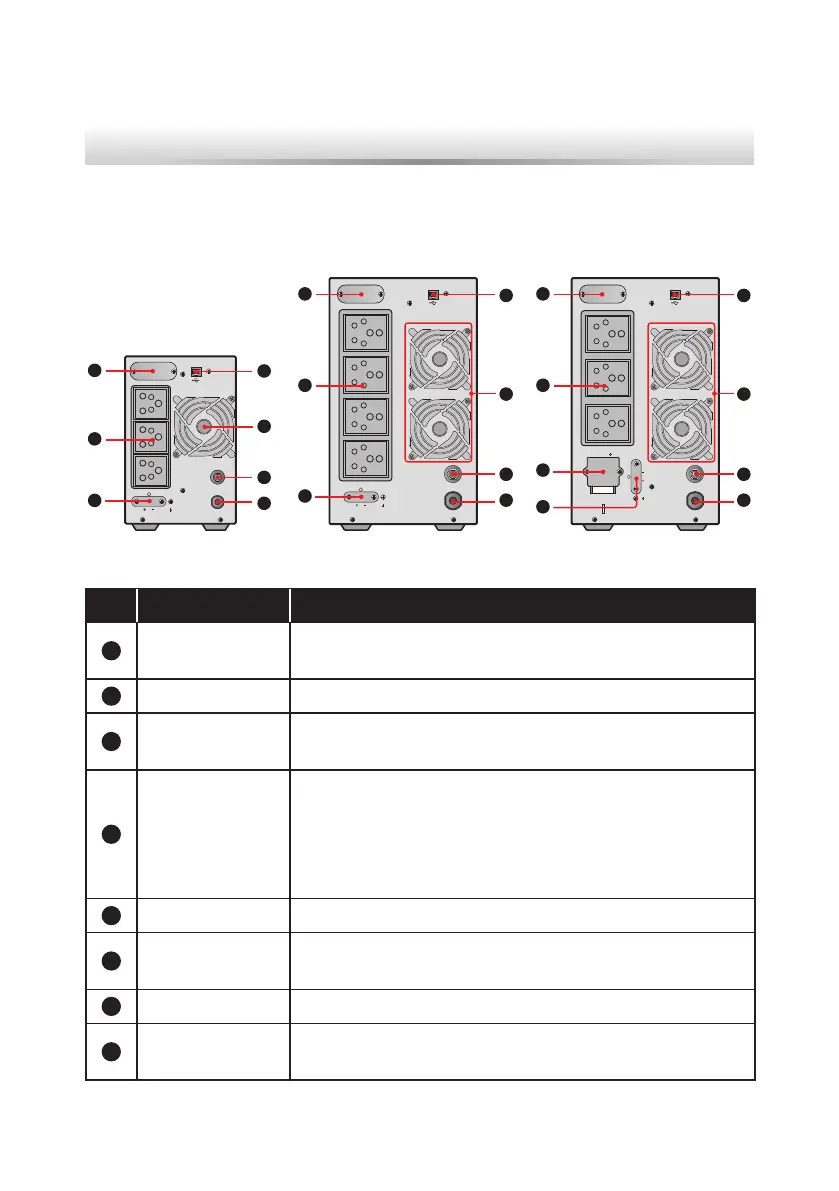

Chapter 4 : Rear Panel
z
z
Standard Model: UPS102N2000N0B0 (1kVA)/ UPS202N2000N0B0 (2kVA)/
UPS302N2000N0B0 (3kVA):
1 kVA 2 kVA 3 kVA
MI NI S LOT
AC I NP UT
MI NI S LOT
AC I NP UT
MI NI S LOT
L N
UP S OU TP UT
EXTERNAL BATT.CONNECTOR
24V DC 45A
IN PU T BREAKER
250V AC. 10A
OUTPUT SOCKET
OUTPUT SOCKET
EXTERNAL BATT.CONNECTOR
48V DC 45A
IN PU T BREAKER
250V AC.2 0A
OUTPUT SOCKET
AC IN PUT
IN PU T BREAKER
250V AC.2 0A
EXTERNAL BATT.CONNECTOR
72V DC 45 A
1
1
2
2
3
3
4
5
6
7
4
5
6
7
1
2
3
4
5
6
7
8
No. Item Functions
1
Mini Slot
Accepts a mini SNMP, mini Relay I/O, mini ModBus or
mini TVSS card (optional).
2
Output Sockets Connect to your loads.
3
External Battery
Pack Connector
N/A. The UPS cannot connect any external battery
pack.
4
USB Port
Connects to your computer. You can monitor the UPS’s
status via your computer by installing the Virtual COM
Port Driver and the UPSentry 2012 software (please
download from http://www.deltapowersolutions.com/en-
in/mcis/software-center.php).
5
Fan(s) Cool(s) and ventilate(s) the UPS.
6
Input Breaker
It is the input power’s protective device. It is for safety
protection.
7
AC Input Cord Connects to a wall socket.
8
UPS Output
Terminals
Connect to your loads.
