6-8 USB/RS-485 Communication Interface IFD6530
Thoroughly read this instruction sheet before installation and putting it into use.
The content of this instruction sheet and the driver file may be revised without prior notice. Consult our
distributors or download
the most updated instruction/driver version.
Introduction
IFD6530 is a convenient RS-485-to-USB converter that does not require an external power supply and a
complex setting process. It supports baud rates from 75 to 115.2 kbps and auto-switching of the data
transmission direction. In addition, it adopts the RJ45 in RS-485 connector for convenient wiring. Its
small size, use of plug-and-play and hot-swappable provide more conveniences for connecting all DELTA
IABG products to your PC.
Applicable Models: All DELTA IABG products.
Application & Dimension:

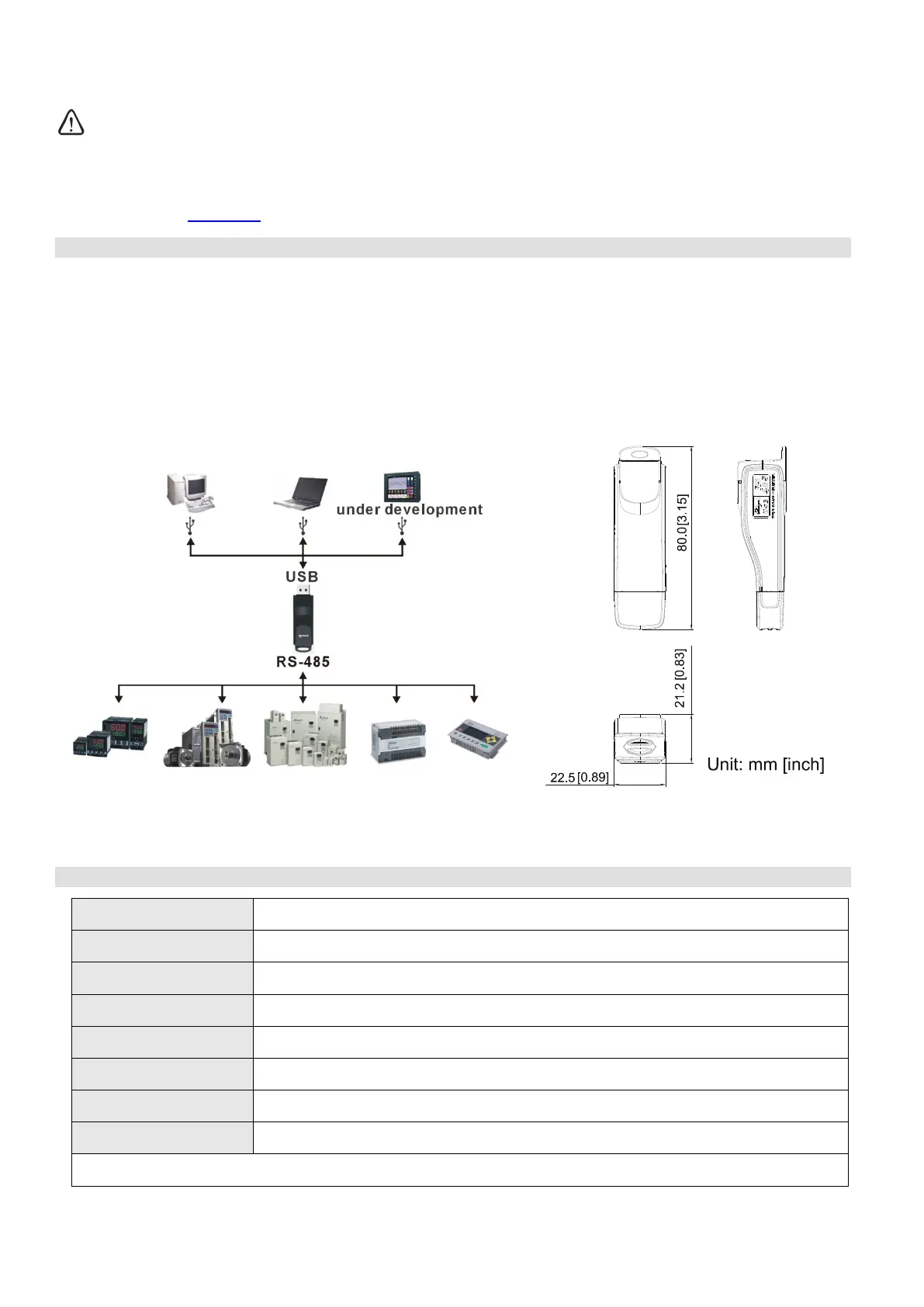

Figure 6-44
Figure 6-45
Specifications
Power supply No external power is required.
Power consumption 1.5 W
Isolated voltage 2,500 V
DC
Baud rate 75, 150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps
RS-485 connector RJ45
USB connector A type (plug)
Compatibility Full compliance with USB V2.0 specification
Maximum cable length RS-485 communication port: 100 m
Supports RS-485 half-duplex transmission
Table 6-43
