Delta VFD-ED Series User Manual

Chapter 7 Option Cards | VFD-ED
7-16
7-3 EMED-PGHSD-3
7-3-1 Product Profile

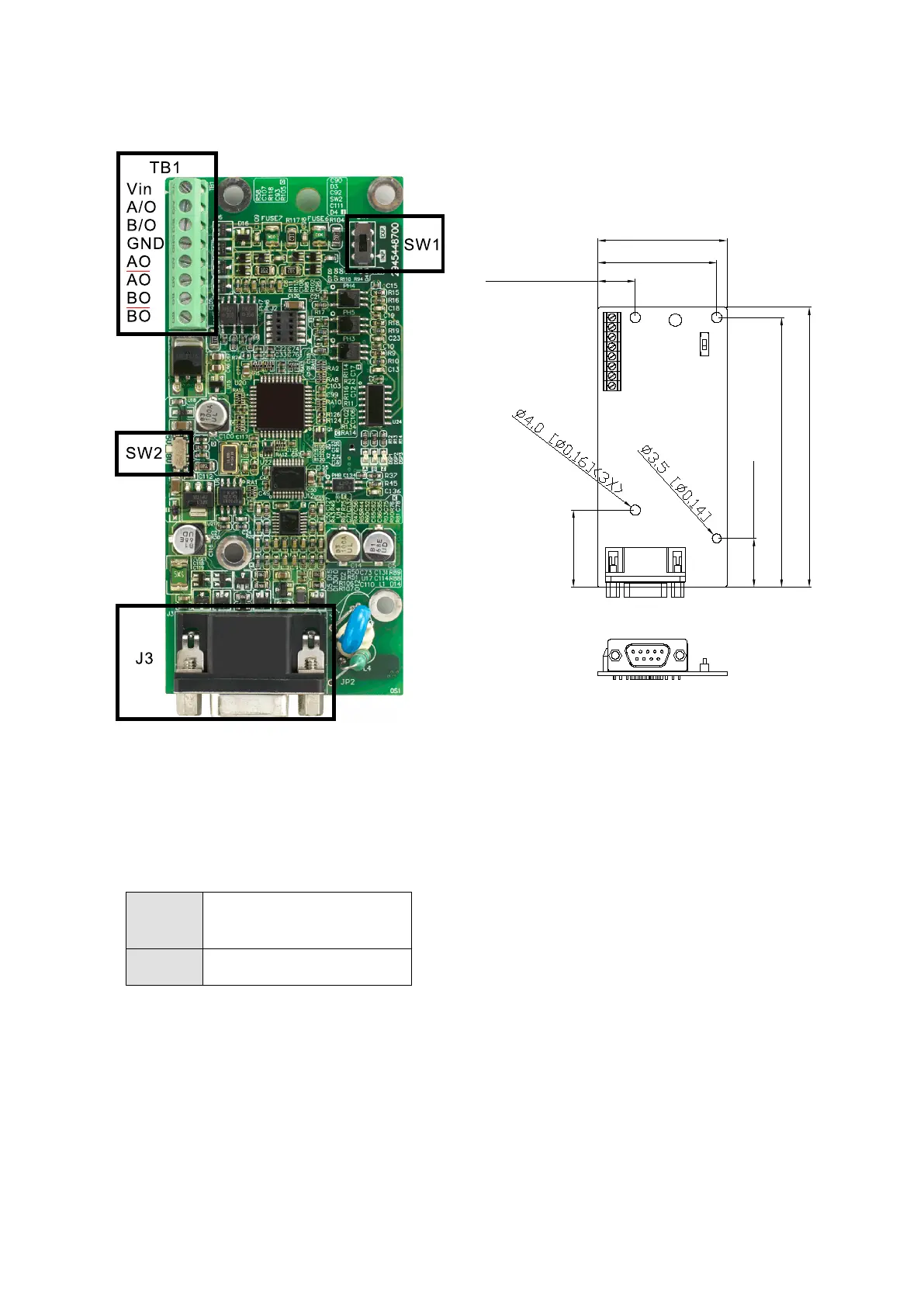

Dimension
Unit: mm [inch]
NOTE:
1.
Applicable encoder:
SIN/COS; Heidenhain ERN1387
EnDat2.1/01: Heidenhain ECN413、ECN1313
SICK HIPERFACE: SRS50/60
2.
Screw specification:
Wire
Gauge
0.2–1.5 mm
2
(30–16 AWG)
Torque 1.6 kg-cm (1.4 Ib-in.)
3.
Supports Heidenhain ERN1387, EnDat2.1, HIPERFACE
30.0 [1.18]
19.0 [0.75]
105.0 [4.13]<2X>
14.5 [0.57]<2X>
46.0 [1.81]<2X>
50.0 [1.97]
109.0 [4.29]
