Chapter 1 Introduction | VFD-ED
1-10

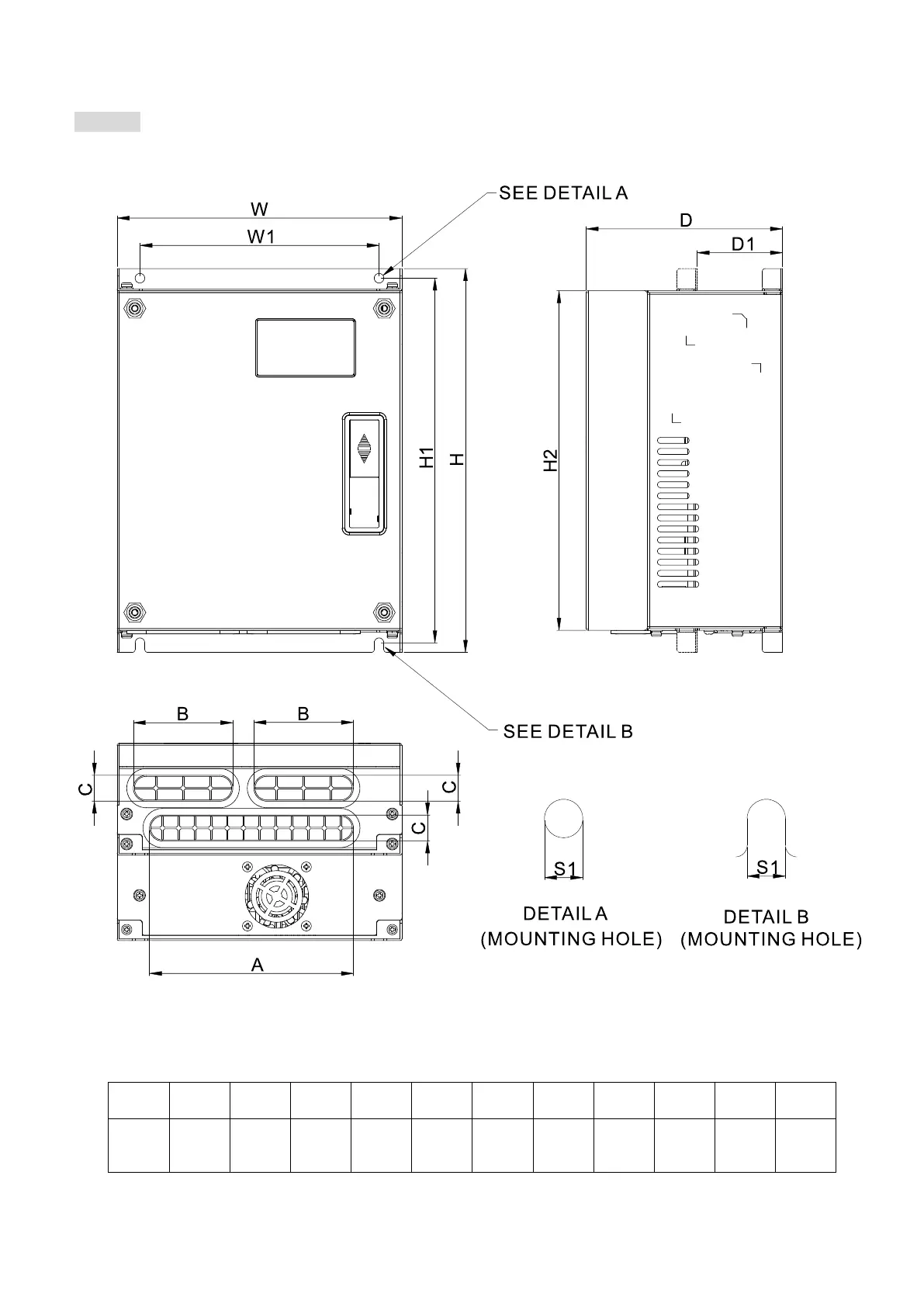

1-6 Dimensions
Frame B
VFD022ED21S, VFD037ED21S, VFD040ED23S/43S
Figure 1-17
Unit: mm (inch)
Frame
W
W1
H
H1
H2
D
D1*
S1
A
B
C
B
193.5
(7.60)
162.5
(6.39)
260.0
(10.22)
247.0
(9.71)
230.0
(9.04)
133.5
(5.25)
58.0
(2.28)
6.5
(0.26)
138.6
(5.46)
67.2
(2.66)
17.6
(0.69)
*D1: This dimension is for flange mounting application reference.
