9-6 TPEditor Installation
TPEditor can edit up to 256 HMI (Human-Machine Interface) pages with a total storage capacity of
256 KB. Each page can include 50 normal objects and 10 communication objects.
1. TPEditor: Setup & Basic Functions
(1)

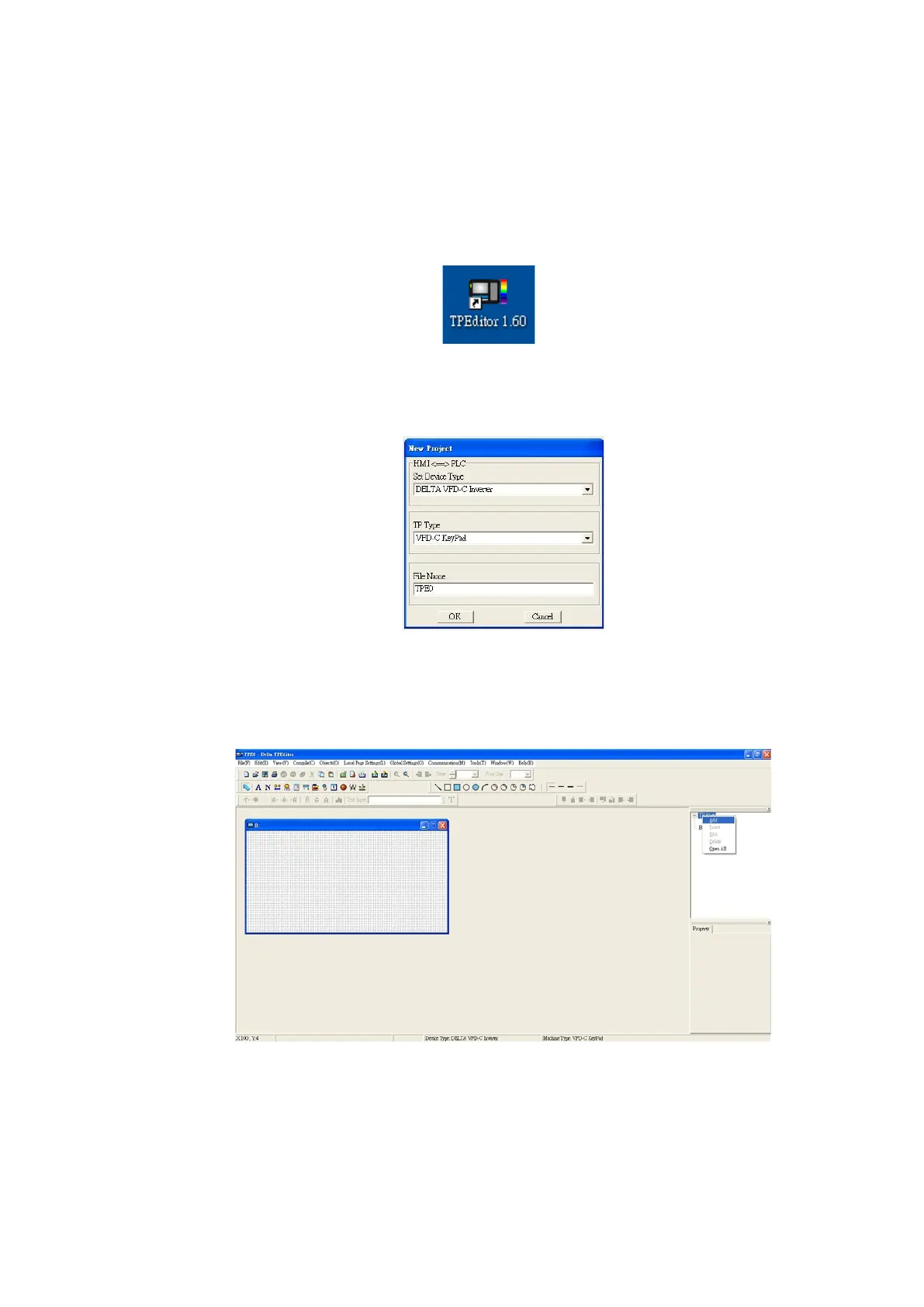

Run TPEditor version 1.60 or later by double-clicking the program icon.
(2) On the File menu, click New. In the New project dialog box, for Set Device Type, select DELTA VFD-C
Inverter. For TP Type, select VFD-C KeyPad. For File Name, enter TPE0 and then click OK.
(3) The editor displays the Design window. On the Edit menu, click Add a New Page. You can also right-click
on the TP page in the upper right corner of the Design window and click Add to add one more page(s) to
edit.
(4) Edit the start-up screen.
