Delta VFD037B23A User Manual

VFD-B Series
DELTA ELECTRONICS, INC. ALL RIGHTS RESERVED
5-30
05-05
Frequency
Master Speed
05-00
05-01
05-02
05-03
05-04
05-06
05-07
05-08
05-09
05-10
05-11
05-12
05-13
05-14
01-14
JOG Freq.
2 3 4 5 6 7 8 9 101112131415
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
ON
ON
ON
ON ON ON
ON
ON
ON
ON
ON ON
ON
Run Signal
2nd step speed
Multi-function Terminal
Pr.04-04 to Pr.04-09
(Mi1 to MI6 2)
1st step speed
Multi-function Terminal
Pr.04-04 to Pr.04-09
(Mi1 to MI6 1)
3rd step speed
Multi-function Terminal
Pr.04-04 to Pr.04-09
(MI1 to MI6 3)
4th step speed
Multi-function Terminal
Pr.04-04 to Pr.04-09
(MI1 to MI6 4)
Jog Freq.

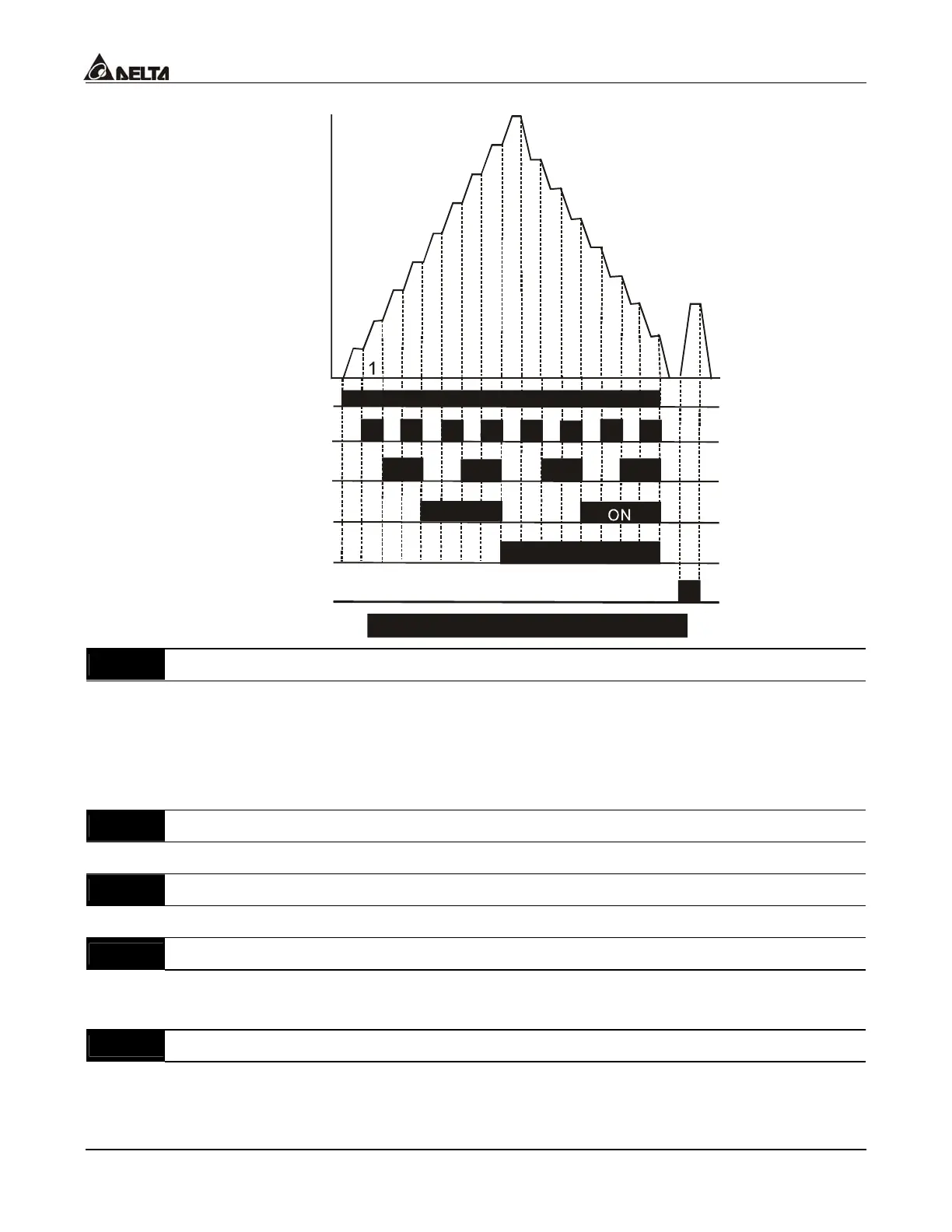

Multi-Step Speed via External Terminals
04 - 10
Digital Terminal Input Debouncing Time
Factory Setting: 1
Settings 1 to 20m sec Unit: 1
 This parameter is to delay and to check the signals from digital input terminals. 1 unit is
2 msec, 2 units are 4 msec, etc. The delay time is to check if there is any noise that
causes the digital terminal malfunction.
04 - 19
AVI Analog Input Delay
Factory Setting: 0.05
Settings 0.00 to 10.00 Sec Unit: 0.01
04 - 20
ACI Analog Input Delay
Factory Setting: 0.05
Settings 0.00 to 10.00 Sec Unit: 0.01
04 - 21
AUI Analog Input Delay
Factory Setting: 0.05
Settings 0.00 to 10.00 Sec Unit: 0.01
04 - 22
Analog Input Frequency Resolution Factory Setting: 01
Settings 00 0.01Hz
01 0.1Hz
