VFD-B Series
DELTA ELECTRONICS, INC. ALL RIGHTS RESERVED
5-47
Group 8: Special Parameters
08 - 00
DC Braking Current Level
Factory Setting: 0
Settings 0 to 100% Unit: 1%
 This parameter determines the level of DC Braking Current output to the motor during
start-up and stopping. When setting DC Braking Current, the Rated Current (Pr.00-01)
is regarded as 100%. It is recommended to start with a low DC Braking Current Level
and then increase until proper holding torque has been attained.
08 - 01
DC Braking Time during Start-up Factory Setting: 0.0
Settings 0.0 to 60.0 sec Unit: 0.1sec
 This parameter determines the duration that the DC Braking current will be applied to
the motor during the AC drive start-up. When the time is up, the AC drive will start
acceleration from the Minimum Frequency (Pr.01-05).
08 - 02
DC Braking Time during Stopping
Factory Setting: d 0.0
Settings 0.0 to 60.0 sec Unit: 0.1sec
 This parameter determines the duration that the DC Braking current will be applied to
the motor during stopping. If stopping with DC Braking is desired, the Pr.02-02 must be
set to RAMP stop.
08 - 03
Start-Point for DC Braking Factory Setting: 0.00
Settings 0.00 to 400.00Hz Unit: 0.01Hz
 This parameter determines the frequency that the DC Braking will begin while the output
Frequency reached during deceleration.

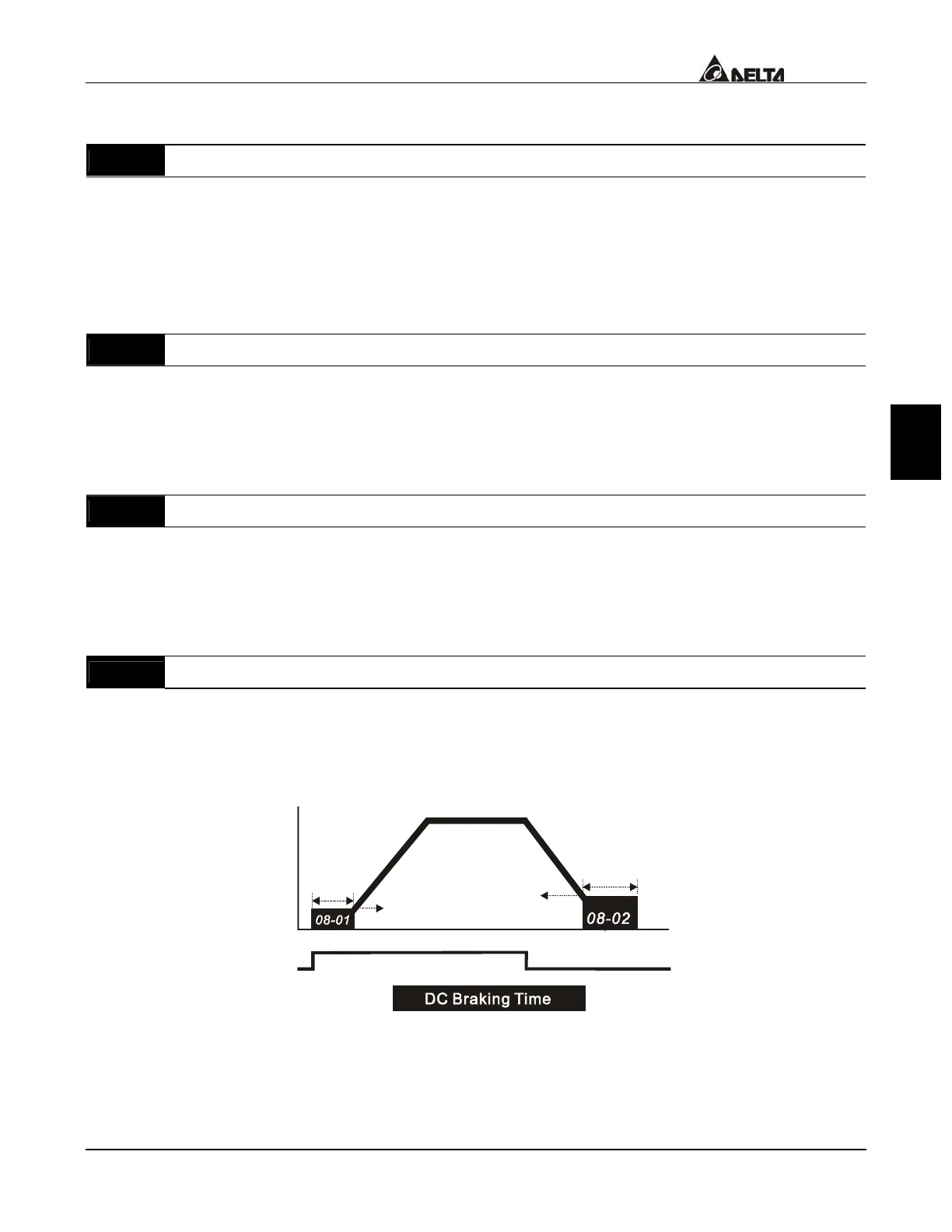

Run/Stop
ON
OFF
01-05
08-03
Output Frequency
Minimum Output
Frequency
Start-Point for
DC Braking
Time during
Stopping
DC Braking Time
during Stopping
NOTE: 1. DC Braking during Start-up is used for loads that may move before the AC drive
starts, such as fans and pumps. Under such circumstances, DC Braking can be
executed to hold the load in position before applying a forward motion.
