Chapter 12 Description of Parameter SettingsME300
12.1-12-9

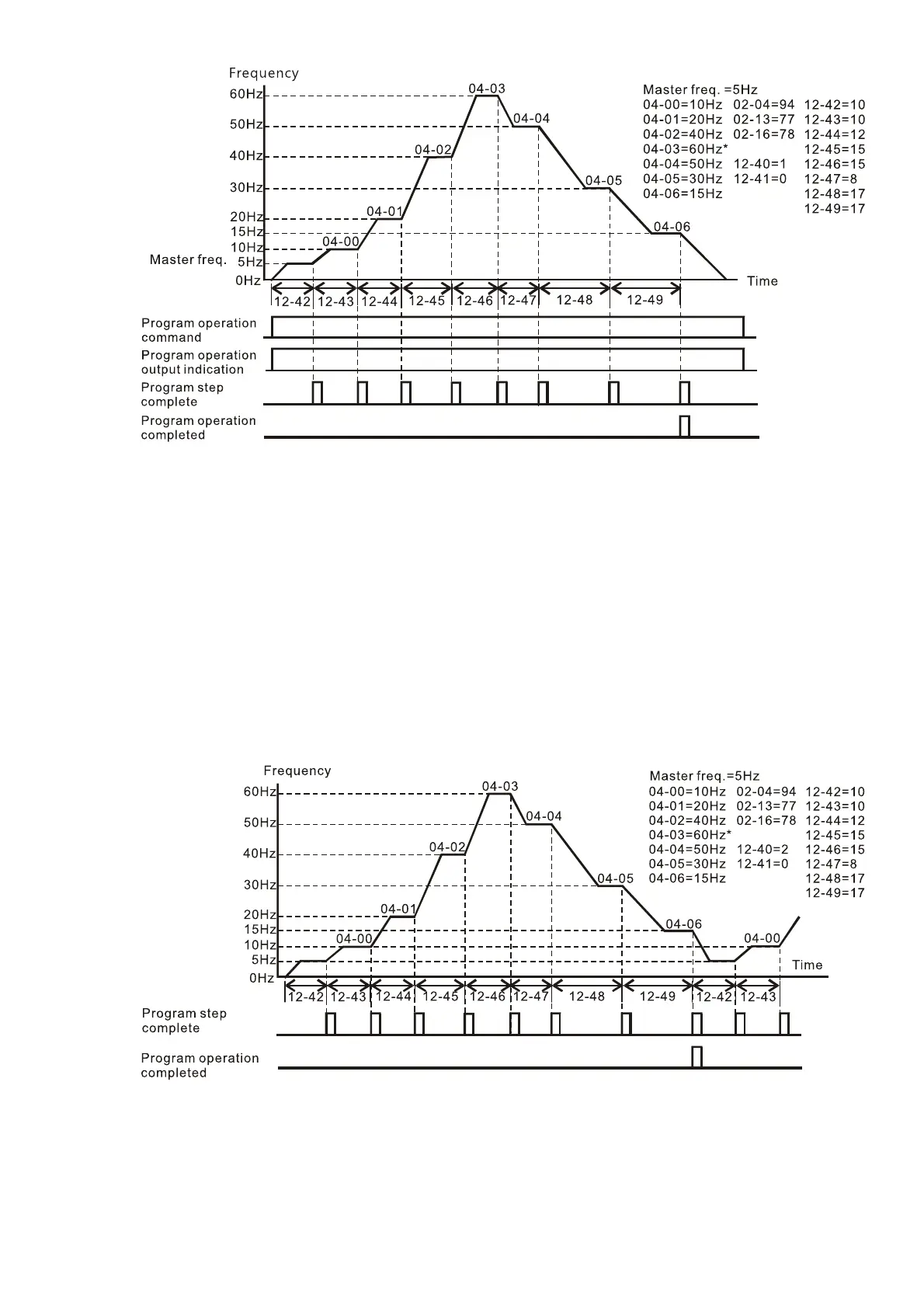

The diagram above shows one complete PLC cycle. To restart the cycle, turn the PLC program
off and then turn back on.
Example 2 (Pr.12-40 = 2)
Continuously executes program cycles
The diagram below shows the PLC program stepping through each speed and then
automatically starting again. To stop the PLC program, you must either pause the program or
turn it off.
