Chapter 12 Description of Parameter SettingsME300
12.1-12-10

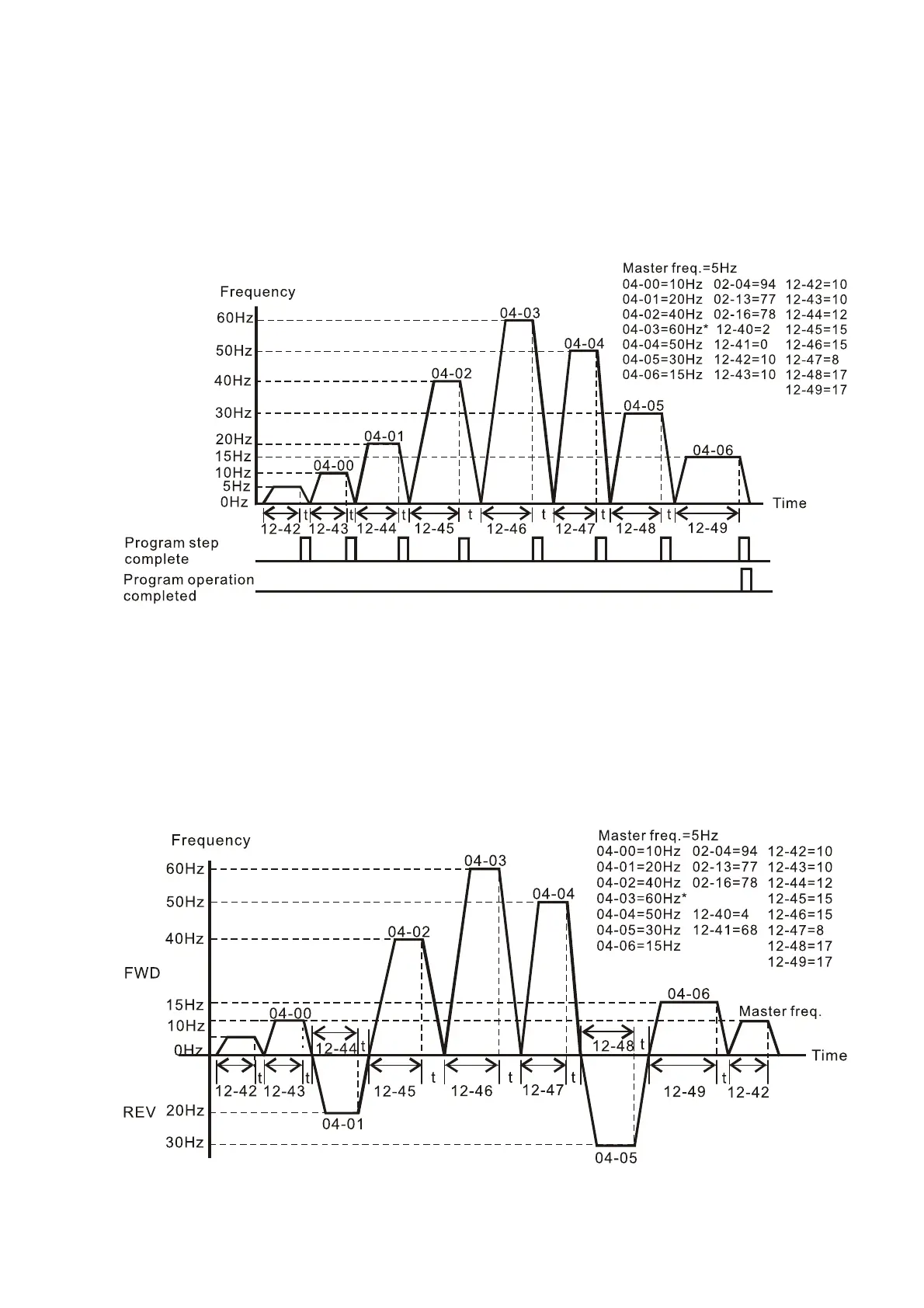

Example 3 (Pr.12-40 = 3)
Execute one program cycle step by step
The example shows how the PLC executes one program cycle at a time within a complete cycle.
Each step uses the acceleration/deceleration time.
Noted that the time each step spends at its desired frequency reduces due to the time spent
during acceleration/deceleration.
Example 4 (Pr.12-40 = 4)
Continuously execute PLC cycles step by step
In this example, PLC program runs continuously step by step. The diagram shown below is the
example of steps in reverse direction.
