ENGLISH
8
Easy Setup and Operation Easy Setup and Operation
ENGLISH
The Auto Setup function of this unit performs an analysis of the
speaker system to permit an appropriate automatic setting.
Auto Setup
2 Measurement and setting details
q: This sets the speaker connection, polarity, and bass
reproduction ability.
w: This sets the delay time from each speaker corresponding to
the listening position.
e: This sets the volume that is output from each speaker.

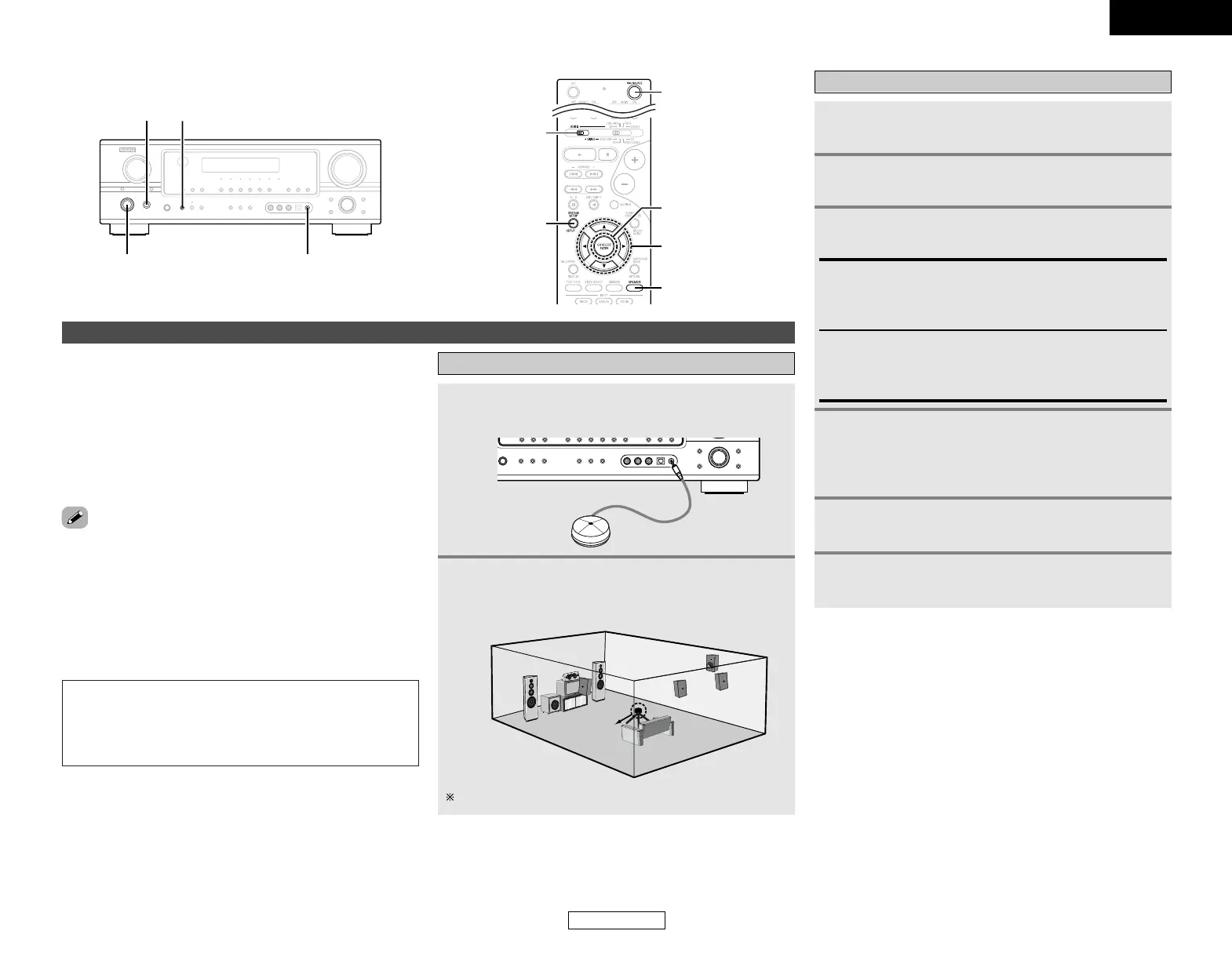

Connecting a microphone
1
Connect the microphone for Auto Setup to the
SETUP MIC jack on the front panel of the unit.
2
Place the microphone for Auto Setup at the
actual listening position which will be at the
same height as your ears.
Microphone
NOTE:
•A loud test tone is output during the measurement. Please
consider this should you be planning night time
measurements, and consider not allowing small children
into the listening room at this time.
Place the microphone on a tripod or level surface.
For accurate measurements
• Keep quiet during the auto setup procedure. It is recommended
that you turn off the power of any air-conditioner, projector or
other equipment that may produce noise.
• Do not stand between the microphone and speakers while
Auto Setup is performed.
• Do not place any obstacles between the microphone and
speakers. Also, be sure to point the speakers towards the
listening position.
4
Press the ON/STANDBY switch on the main unit
or ON/SOURCE button on the remote control
unit.
•Turn on the power.
5
Press the SPEAKER A button to turn the speakers
on.
3
Press the POWER switch.
£ OFF:
The power turns off and the indicator is off.
In this position, the power cannot be turned on and off from
the remote control unit.
¢ ON:
The power turns on and the indicator lights.
Set the POWER switch to this position to turn the power on
and off from the included remote control unit.
1
Turn on your subwoofer.
Turn on your monitor (TV).
Turning on the power
6
Set the MODE 1 switch to “AUDIO” (only when
operating with the remote control unit).
To Next Page
