With the AVR-1906, the Video signal and the S-Video signal which
were inputted are mutually converted. And also the Video signal
and the S-Video signal which were inputted are converted into a
higher quality.

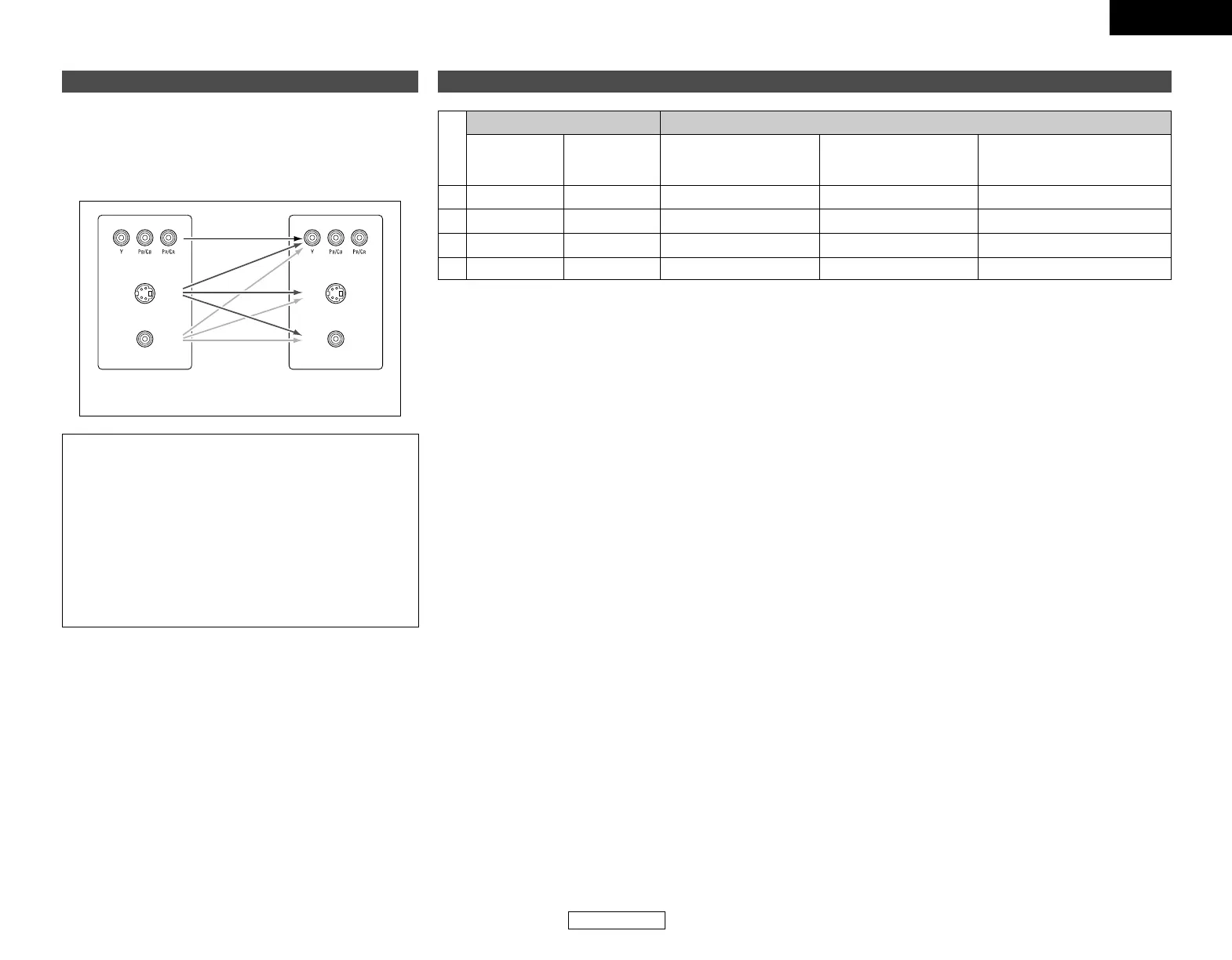

The flow of the video signals.
This unit’s input
terminals
This unit’s output
terminals
(S-Video terminal)
(Video terminal)
The video conversion function
(Component video
terminals)
(Component video
terminals)
(S-Video terminal)
(Video terminal)
Signals input to the AVR-1906
VIDEO signal
input terminal
(yellow)
E
C
E
C
1
2
3
4
S-Video signal
input terminal
E
E
C
C
Video signal output to
VIDEO MONITOR OUT
terminal (yellow)
C
C
C
E
On-screen display signal output
(C: Signal E: No signal) (C: On-screen signals output E: On-screen signals not output)
Video signal output to
S-Video MONITOR OUT
terminal
C
C
C
C
On-screen display signals
Cautions on the video conversion function:
When the component video terminals are used to connect the
AVR-1906 with a TV (or monitor, projector, etc.) and the video
(yellow) or S-Video terminals are used to connect the AVR-
1906 with a VTR, depending on the combination of the TV and
VTR the picture may flicker in the horizontal direction, be
distorted, be out of sync not display at all when playing video
tapes.
If this happens, connect a commercially available video
stabilizer, etc., with a TBC (time base corrector) function
between the AVR-1906 and the VTR, or if your VTR has a TBC
function, turn it on.
Video signal output to Color
Difference (Component) Video
MONITOR OUT terminal
C
C
C
C
To Next Page
