ENGLISH
11
Easy Setup and Operation
ENGLISH
Playing a DVD with surround sound
1
Disconnect the microphone from the unit.
2
Select the input source to be played.
3
Select the play (surround) mode.
4
5
Adjust the volume.
Start DVD playback.
Store:
Store the checked measurement values.
All parameters are stored.
Retry:
Perform the measurement again.
Measurement is repeated.
4
Press the CURSOR
DD
or
HH
button to select from
the following three items based on the
measurement results, then press the CURSOR
FF
button.
Cancel:
Cancel the checked measurement values.

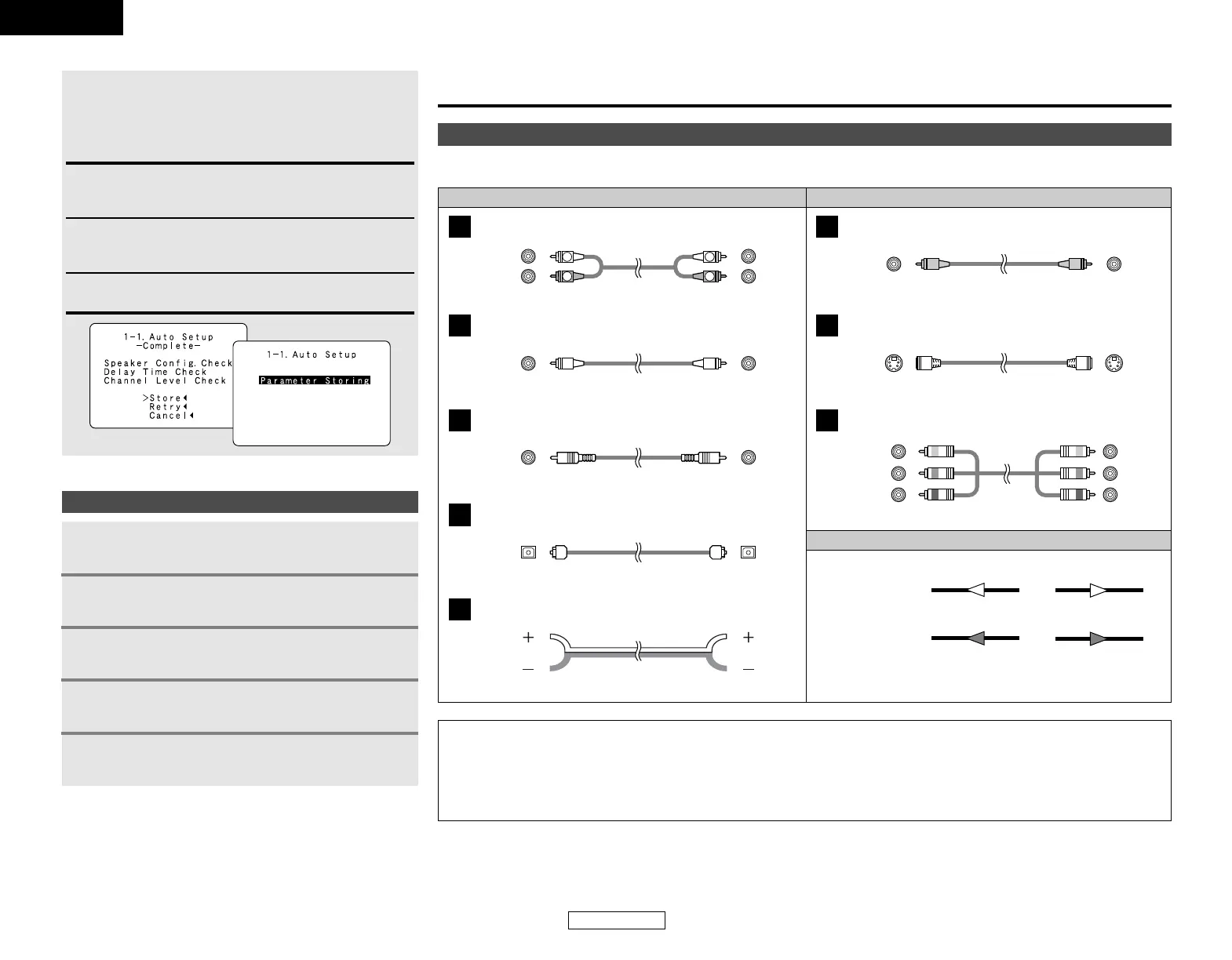

Cable indications
Signal direction
The hookup diagrams on the subsequent pages assume the use of the following optional connection cables (not supplied).
Video cableAudio cable
NOTE:
• Do not plug in the power supply cord until all connections have been completed.
• When making connections, also refer to the operating instructions of the other components.
• Be sure to connect the left and right channels properly (left with left, right with right).
• Note that binding pin-plug cables together with power supply cords or placing them near a power transformer will result in hum
or other noise.
Analog terminal (Stereo)
A
(Orange)
Pin-plug cable
Analog terminal (Monaural, for subwoofer)
B
Pin-plug cable
Digital terminal (Coaxial)
C
Coaxial cable (75 Ω/ohm pin-plug cable)
Digital terminal (Optical)
D
Optical cable (Optical fiber cable)
Speaker terminal
E
Speaker cable
Video terminal
F
Video cable (75 Ω/ohm video pin-plug cable)
S-Video terminal
G
S-Video cable
(Yellow)
Audio signal
Video signal
(White)
(Red)
Component video terminal
H
Component video cable
(Y)
(P
B/CB)
(P
R/CR)
(Green)
(Blue)
(Red)
IN OUT OUT IN
IN OUT OUT IN
Connecting Other Sources
To Next Page
