Easy Setup Procedure
13
ENGLISH
ENGLISH

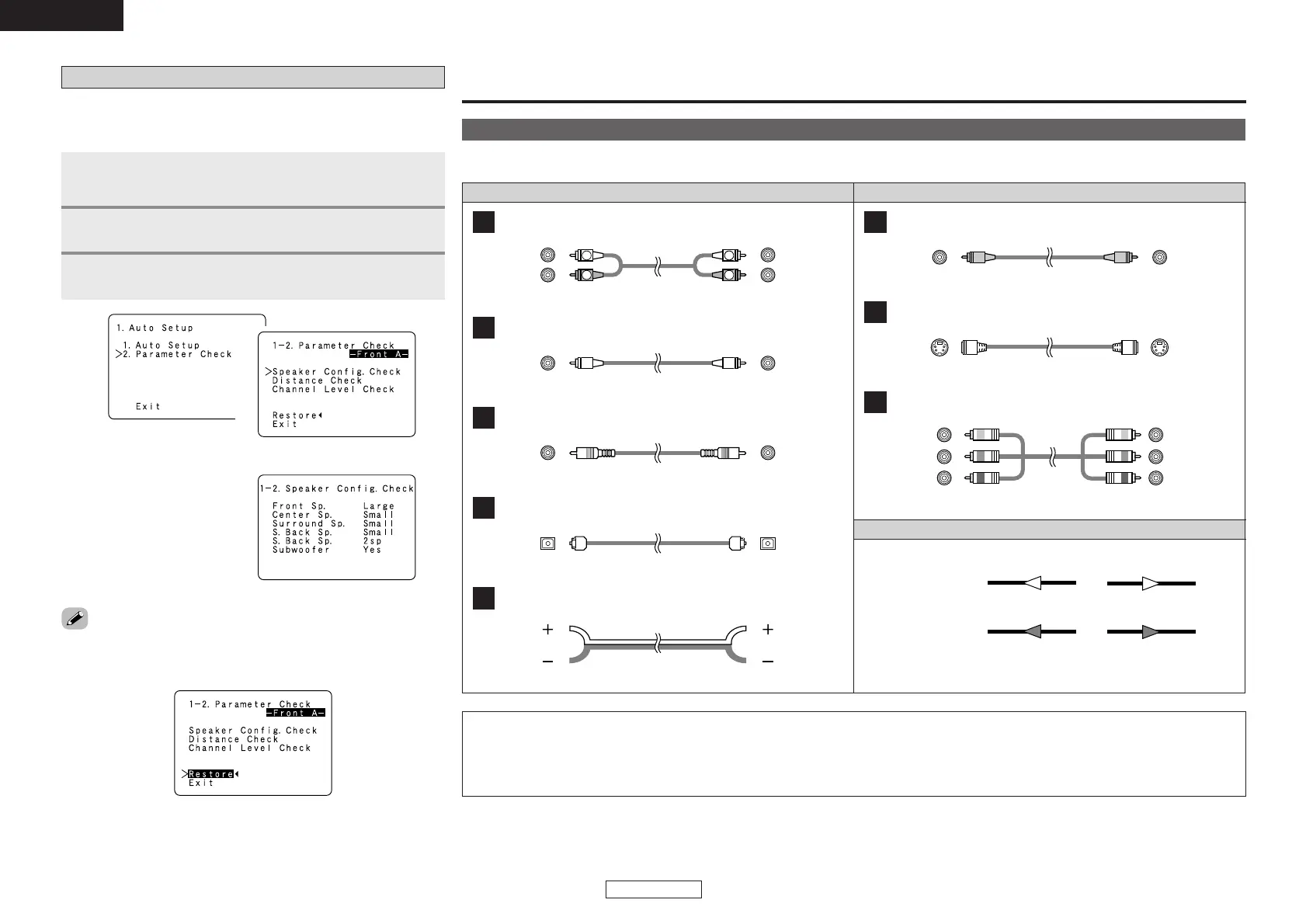

Cable indications
Signal direction
The hookup diagrams on the subsequent pages assume the use of the following optional connection cables (not supplied).
Video cableAudio cable
NOTE:
• Do not plug in the power supply cord until all connections have been completed.
• When making connections, also refer to the operating instructions of the other components.
• Be sure to connect the left and right channels properly (left with left, right with right).
• Do not bundle power cords together with speaker cables. Doing so could result in humming or noise.
Analog connections (Stereo)
A
(Orange)
Pin-plug cable
Analog connections (Monaural, for subwoofer)
B
Pin-plug cable
Digital connections (Coaxial)
C
Coaxial cable (75 Ω/ohms pin-plug cable)
(Yellow)
Digital connections (Optical)
D
Optical fiber cable
Speaker connections
E
Speaker cable
Video connections
F
Video cable (75 Ω/ohms video pin-plug cable)
S-Video
connections
G
S-Video cable
Audio signal
Video signal
(White)
(Red)
Component video connections
H
Component video cable
(Y)
(P
B/C
B)
(P
R/CR)
(Green)
(Blue)
(Red)
IN OUT OUT IN
IN OUT OUT IN
Connecting Other Sources
Check the parameter
1
Press
DD HH
to select “Parameter Check”, then press
ENTER.
Press
DD HH
to select the item, then press ENTER.
Press ENTER.
2
3
•To reset:
Press
DD HH
to select “Restore” at the “Parameter Check” screen,
then press
FF
.
1
2
Example: Speaker Configuration Check
hh
(Press ENTER.)
• The results of the measured items can be checked.
• This item is displayed, after the measurement result of the “Auto
Setup” is decided.
To Next Page
