Denon AVR-1907 Operating Instructions

><<>><<>
><
><><
><><
IN
(
L
) (
R
)
(
L
) (
R
)
(
L
) (
R
) (
L
) (
R
)
Connecting Other Sources Connecting Other Sources
19
ENGLISH
ENGLISH
For instructions on operations using the MULTI ZONE functions ( page 39 ~ 41).

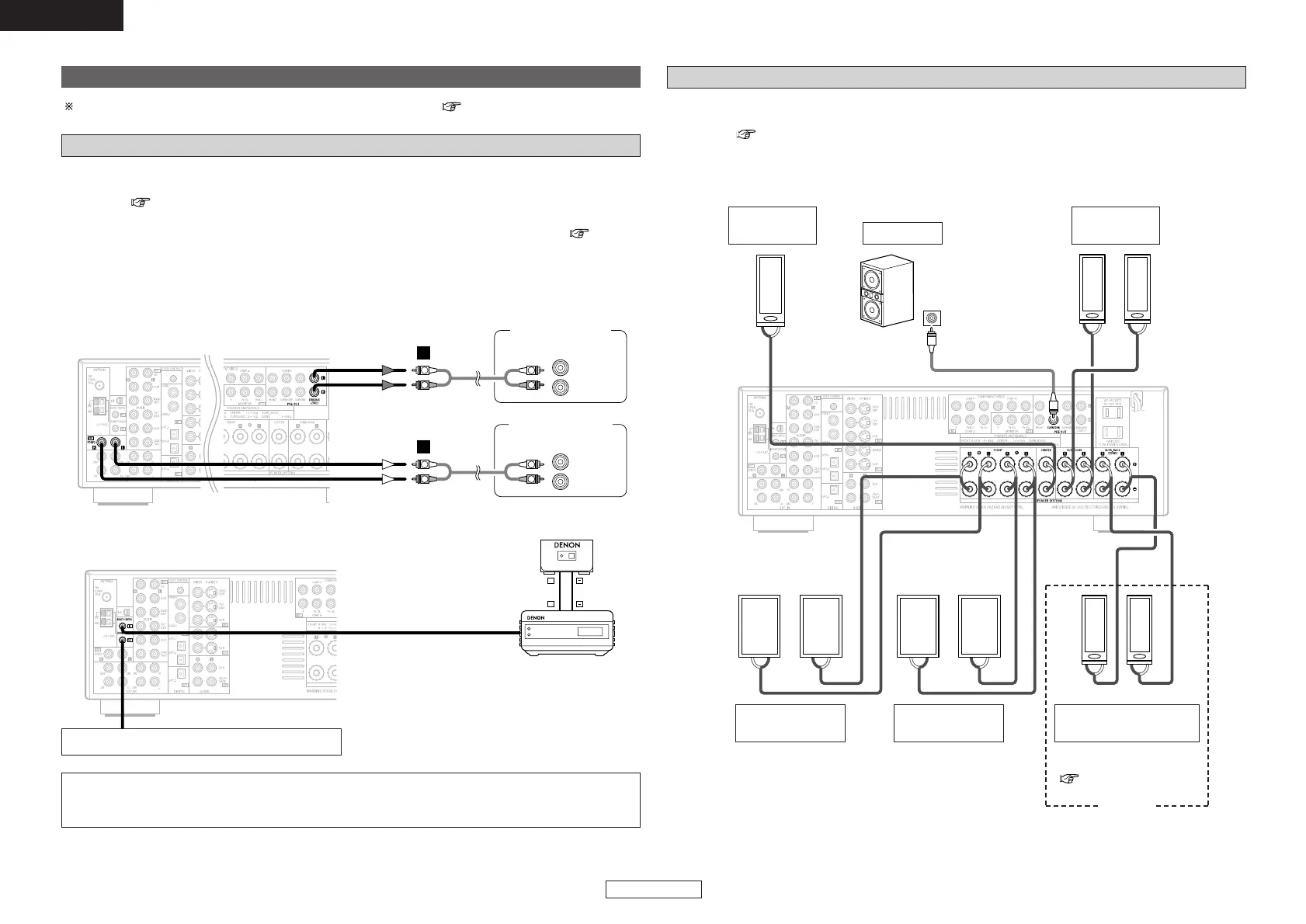

Connecting the MULTI ZONE terminals
• When the power amplifier is assigned to the ZONE2 output channel at “Power Amp Assignment” in the
“System Setup” menu, the surround back pre-out terminals can be used as the ZONE2 pre-out out
terminals ( page 53).
•If another power amplifier or pre-main (integrated) amplifier is connected, the ZONE2 out (variable/fixed
level) terminals can be used to play a different program source in ZONE2 the same time ( page 39,
40).
• When a sold separately room-to-room remote control unit (DENON RC-616, 617 or 618) is wired and
connected between the MAIN ZONE and ZONE2, the remote-controllable devices in the MAIN ZONE
can be controlled from ZONE2 using the remote control unit.
ZONE2 out connections
Premain amplifier
(ZONE2)
R
L
IN
Power amplifier
(ZONE2)
R
L
IN
(Variable)
(Fixed)
R
L L
A
R
L
R
L
R
A
NOTE:
• For instructions on installation and operation of separately sold devices, refer to the devices’
operating instructions.
+
+
OUTPUT
INPUT
AUX OUT
RC-616 INFRARED
RETRANSMITTER
RC-617 INFRARED SENSOR
Extension terminal for future use.
• When the power amplifier is assigned to the ZONE2 output channel at “Power Amp Assignment” in the
“System Setup” menu, the surround back speaker terminals can be used as the ZONE2 speaker out
terminals ( page 53).
• The connections diagram below is an example for when the surround back speaker is assigned to the
ZONE2 stereo 2 channel.
In this case, surround back speaker out can not be used for MAIN ZONE.
ZONE2 speaker out connections
ZONE2
Connection terminal for
subwoofer with built-in
amplifier.
Front speakers
(A)
Surround
speakers
Front speakers
(B)
Subwoofer
ZONE2
Front speakers
Center
speaker
The settings must be changed
to use this speaker for ZONE2
( page 53).

Denon AVR-1907 Specifications

General

Speakers connectivity type	-
Equalizer	Yes
Product color	Black
Audio decoders	DTS, DTS 96/24, DTS-ES (Discrete 6.1), DTS-ES (Matrix 6.1), Dolby Digital, Dolby Digital EX, Dolby Pro Logic IIx
Apple docking compatibility	iPod
Receiver type	Surround
Audio output channels	7.1 channels
Power output per channel (1KHz@6 Ohm)	120 W
Power output per channel (20-20KHz@8 Ohm)	85 W
Wi-Fi	No
