Connecting Other Sources Connecting Other Sources
17
ENGLISH
ENGLISH

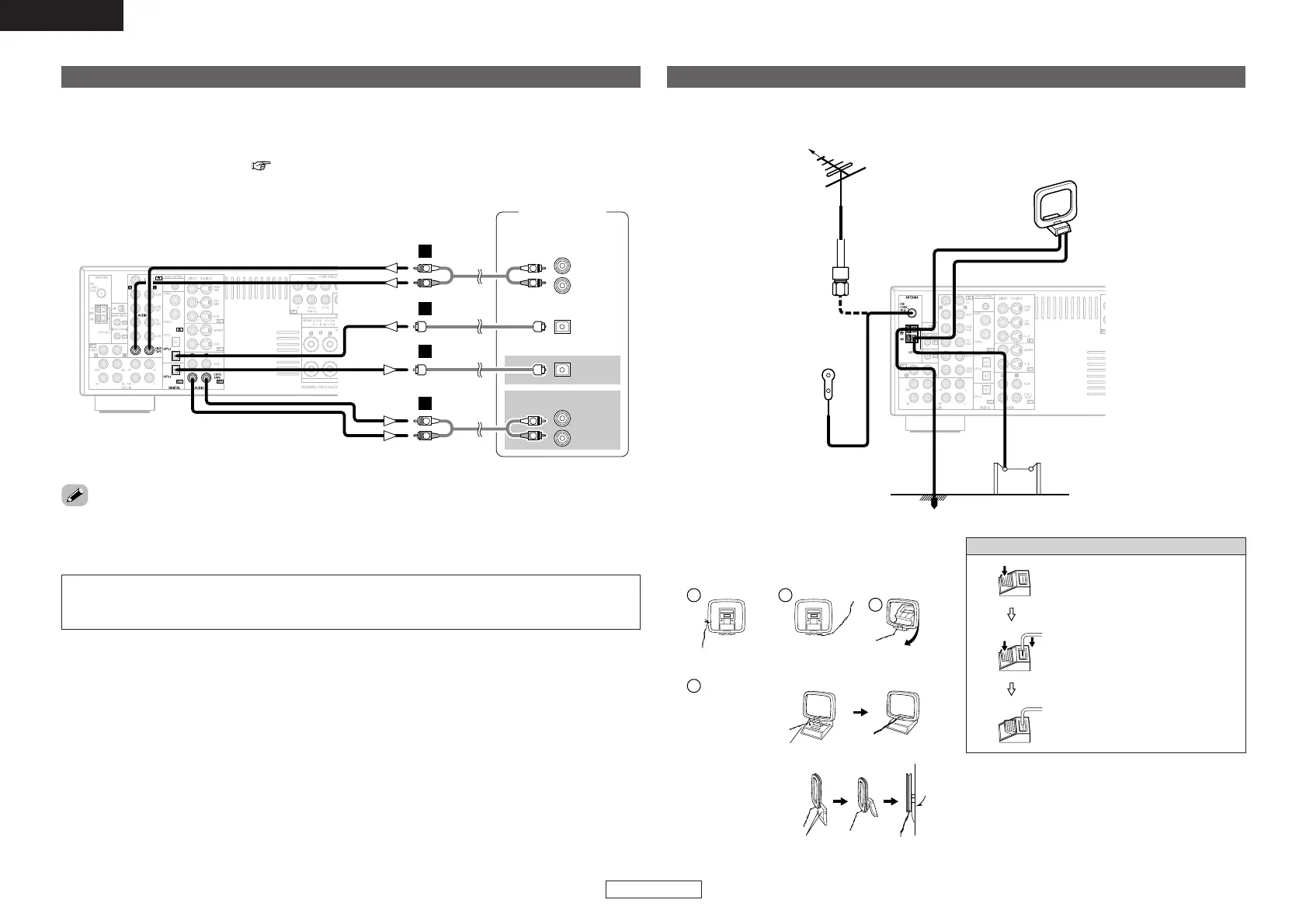

Connecting a CD recorder or MD recorder
• If you wish to perform analog dubbing from a digital source, such as a CD or MD recorder to an analog
recorder such as a tape deck, you will need to connect the analog inputs and outputs as shown below,
in addition to the digital audio connections.
• If you choose to use the coaxial or optical connection, it needs to be assigned. For more information
about Digital Input Assignment ( page 47).
R
L
AUDIO IN
R
L
AUDIO OUT
CD recorder /
MD recorder
OPTICAL
OUT
OPTICAL
IN
R
L
R
L
A
R
L
R
L
A
D
D
NOTE:
• Do not connect the output of the component connected to the OPTICAL 2 OUT terminal on the AVR-
1907’s rear panel to any terminal other than the OPTICAL 2 IN terminal.
¢ AM loop antenna assembly
Connect to the AM
antenna terminals.
Remove the vinyl tie
and take out the
connection line.
Bend in the reverse
direction.
a. With the antenna on
top any stable
surface.
b. With the antenna
attached to a wall.
Mount
Installation hole Mount on wall, etc.
An F-type FM antenna cable plug can be connected directly.
Connecting the antenna terminals
Direction of broadcasting station
75 Ω/ohms Coaxial cable
FM antenna
FM indoor antenna (Supplied)
AM loop antenna
(Supplied)
AM outdoor antenna
Ground
Connection of AM antennas
1. Push the lever.
2. Insert the conductor.
3. Return the lever.
• The source selected for MAIN ZONE is output from the digital output terminal (OPT-2).
The source selected in the REC SELECT mode is not associated with the output from the digital output
terminal (OPT-2).
To Next Page
