Denon AVR-1911 User Manual

32
ENGLISH

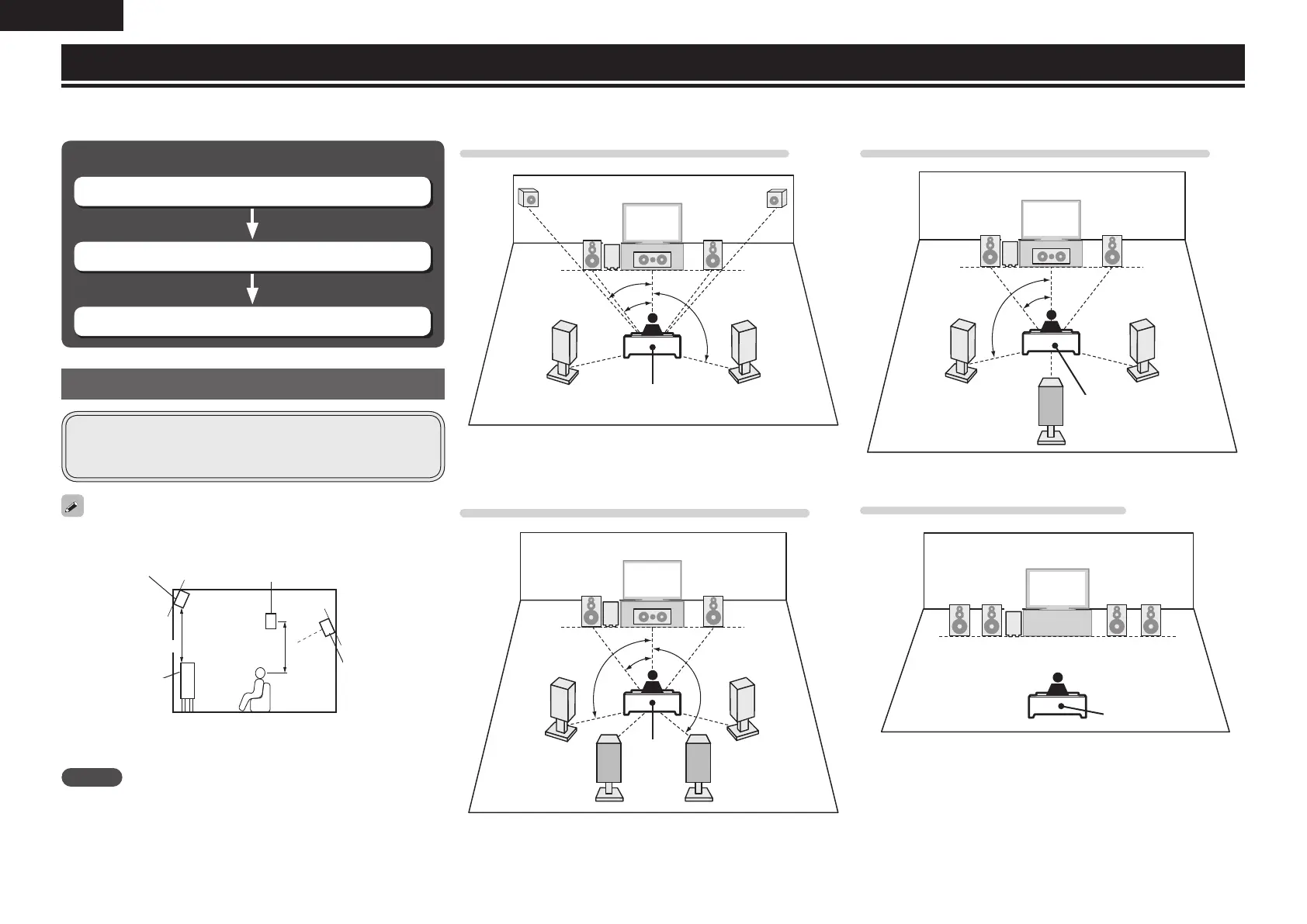

When 6.1ch (Surround back speaker) installed
FL FR
C
SB
SL
SR
SW
z1
z2
Listening position
z1 22˚ – 30˚ z2 90˚ – 110˚
When Front A/B speakers installed
FR(A) FR(B)
SW
FL(B) FL(A)
Listening position
FL Front speaker (L) SBL Surround back speaker (L)
FR Front speaker (R) SBR Surround back speaker (R)
C Center speaker FHL Front height speaker (L)
SW Subwoofer FHR Front height speaker (R)
SL Surround speaker (L)
SR Surround speaker (R)
Procedure for speaker settings
Install
Connect (vpage33)
Set up speakers (vpage35)
Install
This unit is compatible with Dolby Pro Logic gz (vpage76),
which offers an even wider and deeper surround sensation.
When using Dolby Pro Logic gz, install front height speakers.
Install the surround back speakers in a position 60 to 90 cm higher
than ear level.
z
Surround
speaker
60 – 90 cm
GViewed from the sideH
Front height
speaker
• Point slightly
downwards
At least
1 m
Surround back
speaker
• Point slightly
downwards
Front
speaker
z Recommended for Dolby Pro Logic gz
NOTE
It is not possible to use the surround back speakers and front height
speakers simultaneously.
When 7.1ch (Front height speaker) installed
FL
FR
FHRFHL
C
SL
SR
SW
z1
z2
z3
Listening position
z1 22˚ – 30˚ z2 22˚ – 45˚ z3 90˚ – 110˚
When 7.1ch (Surround back speaker) installed
FL FR
C
SBL SBR
SL
SR
SW
z1
z2
z3
Listening
position
z1 22˚ – 30˚ z2 90˚ – 110˚ z3 135˚ – 150˚
Speaker installation/connection (Other than 5.1-channel)
Here we describe the installation, connection and setup methods for speakers other than 5.1-channel speakers. For the installation, connection and setup methods
for 5.1-channel speakers, see “Simple version (Simple setup guide)” (vpage3).

Denon AVR-1911 Specifications

General

Frequency range	10 - 100000 Hz
Audio output channels	7.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.8 %
HDMI	Yes
Audio system	Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, DTS-HD, DTS 96/24
Output power	125 W
Dimensions (WxDxH)	434 x 381 x 171 mm
Power requirements	AC 230, 50 Hz
HDMI ports quantity	5
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
I/O ports	1 x Component in 1 x Composite Monitor out 1 x USB 1 x Microphone 1 x FM Tuner Antenna 1 x AM Tuner Antenna
Connectivity technology	Wired
Headphone outputs	7
Digital audio optical in	1
Product color	Black
Power consumption (standby)	0.1 W
Power consumption (typical)	460 W

Weight and Dimensions

Weight	10200 g
