Denon AVR-1913 Service Manual

117
181716151413121110987654321
M
L
K
J
I
H
G
F
E
D
C
B
A
鉛フリー半田
半田付けには、鉛フリー半田 (Sn-Ag-Cu) を使用してください。
Lead-free Solder
When soldering, use the Lead-free Solder (Sn-Ag-Cu).
+DATA -DATA
GND GND
RED
VBUS
7028-07185-201-0
USB B'D
Pb
G4402
J4511
C4471
CP4406
J4504
CN4402
Pb
7028-07185-401-0
PCB
CLAMP 405
GUIDE L
Pb
CLAMP 401
PCB
7028-07185-501-0
GUIDE R
D4412
D4413
BD4411
C4472
R4487
R4486
C4470
D4411
R4488
C4469
BD4410
C4474
C4473
L4401
BD4409
+DATA
VBUS
-DATA
GND
GND
USB

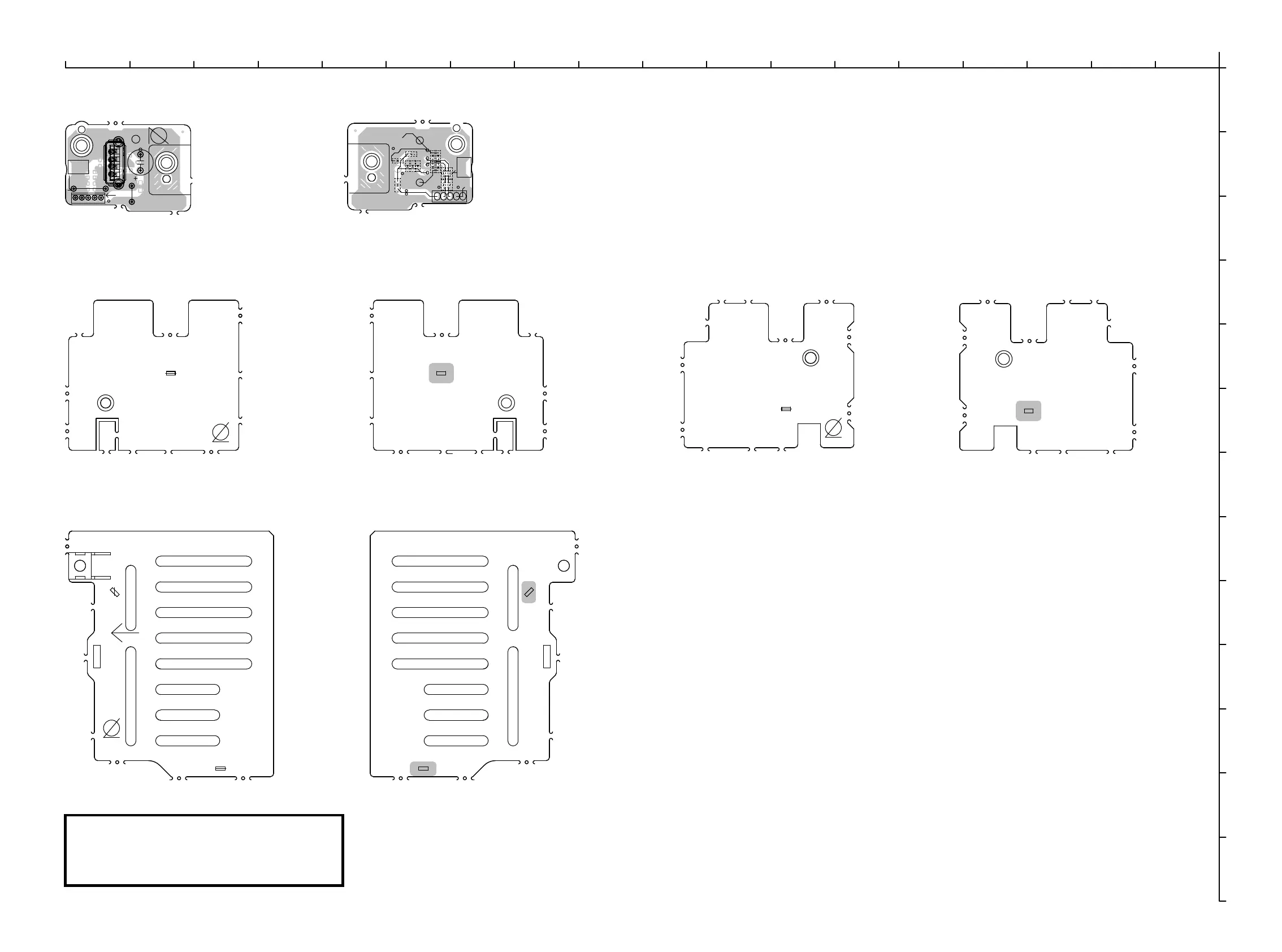

(COMPONENT SIDE)
GUIDE L
(COMPONENT SIDE)
GUIDE R
(COMPONENT SIDE)
USB
(FOIL SIDE)
GUIDE L
(FOIL SIDE)
GUIDE R
(FOIL SIDE)
CLAMP 403
CLAMP 402
BACK
TOP_GUIDE B'D
7028-07185-601-0
Pb
TOP_GUIDE
(COMPONENT SIDE)
TOP_GUIDE
(FOIL SIDE)
