Denon AVR-1913 Service Manual

15
3. PCB HDMI

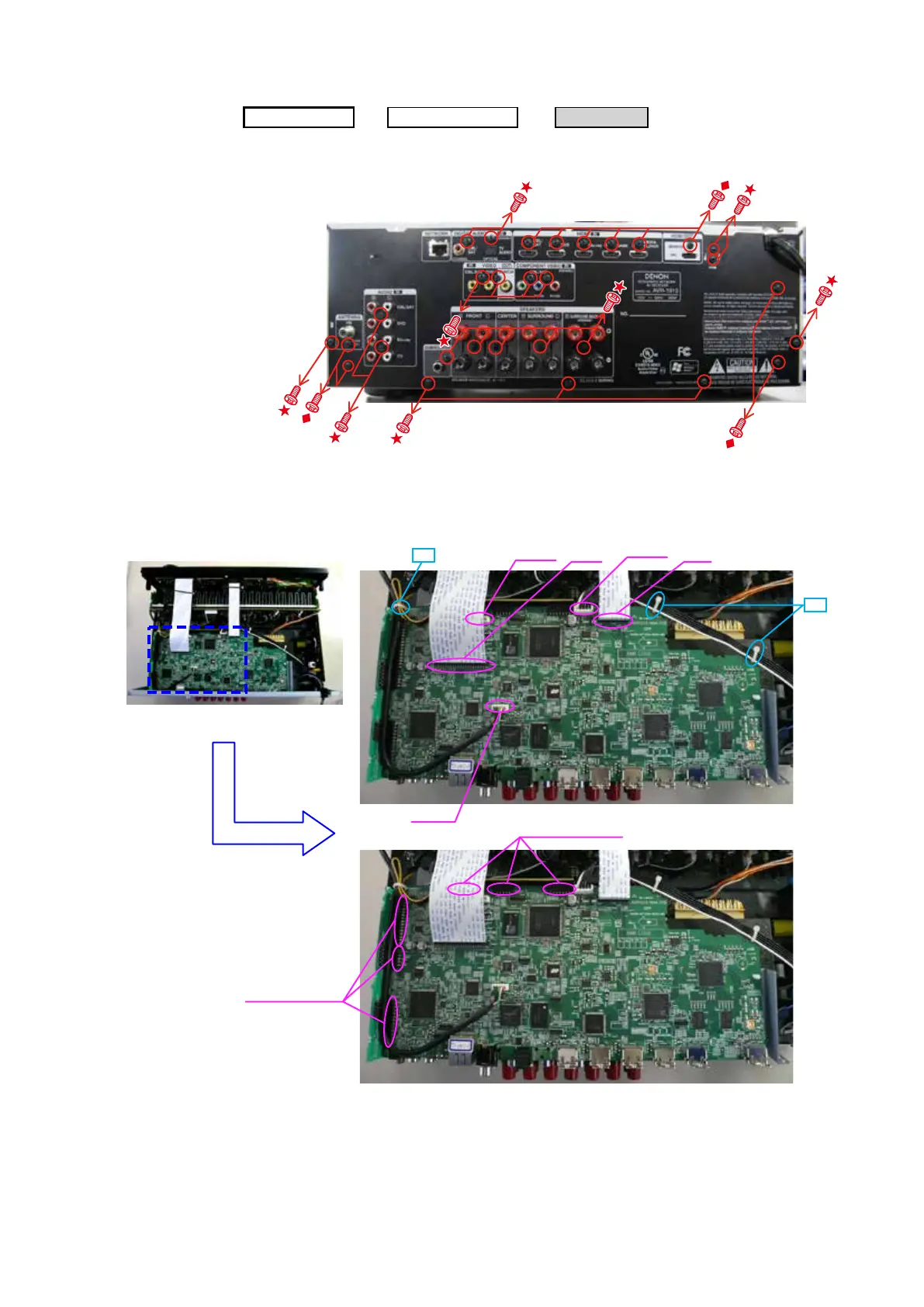

(1) Remove the screws.
(2) Cut the wire clamp band, then disconnect the connector wires and FFC. Disconnect the connector board.
PCB HDMI
TOP COVER
BACK CHASSIS
→ →
Proceeding :
Shooting of photograph: A
N3601
N2801
Board to board
Board to board
N3405
cut
cut
FFC FFC

Denon AVR-1913 Specifications

General

Receiver type	-
Audio output channels	7.1 channels
Power output per channel (1KHz@6 Ohm)	125 W
Power output per channel (20-20KHz@8 Ohm)	90 W
HDMI in	6
Audio (L/R) in	5
Composite video in	3
Component video (YPbPr/YCbCr) in	1
Audio formats supported	AAC, FLAC, MP3, WMA
Ethernet LAN	Yes
FM band range	87.5 - 107.9 MHz
Supported radio bands	FM
Internet radio services supported	Pandora, SIRIUS Internet Radio, Spotify, vTuner
Card reader integrated	No
Supported video modes	1080p
Supported graphics resolutions	1920 x 1080 (HD 1080)
Product color	Black
Audio decoders	Dolby Digital Plus, Dolby Pro Logic IIz, Dolby TrueHD, DTS 96/24, DTS Neo:6, DTS-ES (Discrete 6.1), DTS-HD, DTS-HD Master Audio
Volume control	Rotary

Weight and Dimensions

Depth	162 mm
Width	434.3 mm
Height	328.9 mm
Weight	9099 g
