Denon AVR-1913 Service Manual

8
TECHNICAL SPECIFICATIONS
n
Audio Section
• Power amplier
Rated output (for 1913 model) :
Front :
90 W + 90 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
125 W + 125 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
Center :
90 W + 90 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
125 W + 125 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
Surround :
90 W + 90 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
125 W + 125 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
Surround back:
90 W + 90 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
125 W + 125 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
Rated output (for 2113 model) :
Front :
95 W + 95 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
125 W + 125 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
Center :
95 W + 95 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
125 W + 125 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
Surround :
95 W + 95 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
125 W + 125 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
Surround back:
95 W + 95 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
125 W + 125 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
Output connectors : 6 – 16 Ω
• Analog
Input sensitivity/Input impedance : 200 mV/47 kΩ
Frequency response: 10 Hz – 100 kHz — +1, –3 dB (DIRECT mode)
S/N : 100 dB (IHF–A weighted, DIRECT mode)
n
Video section
• Standard video connectors
Input/output level and impedance : 1 Vp-p, 75 Ω
Frequency response : 5 Hz – 10 MHz — 0, –3 dB
n
Tuner section
(Note: μV at 75 Ω, 0 dBf = 1 x 10
–15
W)
Receiving Range (for E3 model) :
87.5 MHz – 107.9 MHz
50 dB Quieting Sensitivity :
MONO 2.8 μV (20.2 dBf)
S/N (IHF-A) :
MONO 70 dB (IHF–A weighted, DIRECT mode)
STEREO 67 dB (IHF–A weighted, DIRECT mode)
Total harmonic Distortion (at 1 kHz) :
MONO 0.7 % (1 kHz)
STEREO 1.0 % (1 kHz)
n
General
Power supply (for E3 model) : AC 120 V, 60 Hz
Power supply (for E2 model) : AC 230 V, 50/60 Hz
Power supply (for E1C model) : AC 220 V, 50 Hz
Power consumption (for 1913 model) :
460 W
0.1 W (Standby)
0.5 W (CEC standby)
Power consumption (for 2113 model) :
500 W
0.1 W (Standby)
0.5 W (CEC standby)
Maximum external dimensions (for 1913E3 model) :
434 (W) x 162 (H) x 329 (D) mm
Weight : 9.4 kg
Maximum external dimensions
(for 2113CIE3, 2113E2,E1C, model) :
434 (W) x 167 (H) x 329 (D) mm
Weight : 9.5 kg
n
Remote Control Unit (RC-1167)
Batteries : R03/AAA Type (two batteries)
Maximum external dimensions :
49.5 (W) x 224 (H) x 23.5 (D) mm
Weight : 125 g (including batteries)
18.5
288.0
22.5
329.0
54.0
164.5
147.5
14.5
162.0
434.0
344.0

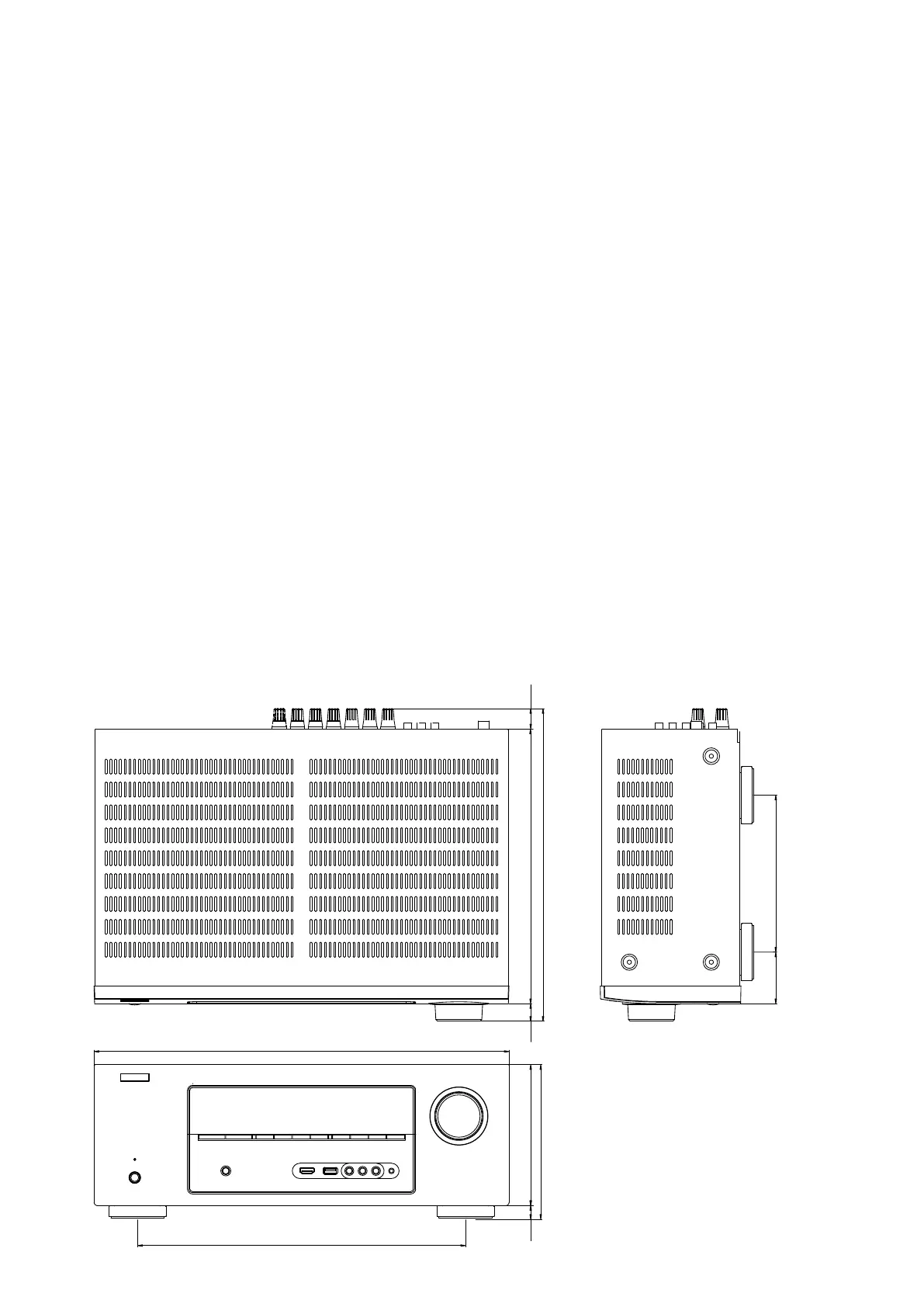

DIMENSION
[AVR-1913E3 model]

Denon AVR-1913 Specifications

General

Receiver type	-
Audio output channels	7.1 channels
Power output per channel (1KHz@6 Ohm)	125 W
Power output per channel (20-20KHz@8 Ohm)	90 W
HDMI in	6
Audio (L/R) in	5
Composite video in	3
Component video (YPbPr/YCbCr) in	1
Audio formats supported	AAC, FLAC, MP3, WMA
Ethernet LAN	Yes
FM band range	87.5 - 107.9 MHz
Supported radio bands	FM
Internet radio services supported	Pandora, SIRIUS Internet Radio, Spotify, vTuner
Card reader integrated	No
Supported video modes	1080p
Supported graphics resolutions	1920 x 1080 (HD 1080)
Product color	Black
Audio decoders	Dolby Digital Plus, Dolby Pro Logic IIz, Dolby TrueHD, DTS 96/24, DTS Neo:6, DTS-ES (Discrete 6.1), DTS-HD, DTS-HD Master Audio
Volume control	Rotary

Weight and Dimensions

Depth	162 mm
Width	434.3 mm
Height	328.9 mm
Weight	9099 g
