53
Connect
tFor the method of connecting 5.1-channel speakers, see C page 6 “Connecting the speakers”.
tFor the method of connecting the TV, see
C page 3 “Connect this unit to the television using an HDMI
cable (sold separately)”
.

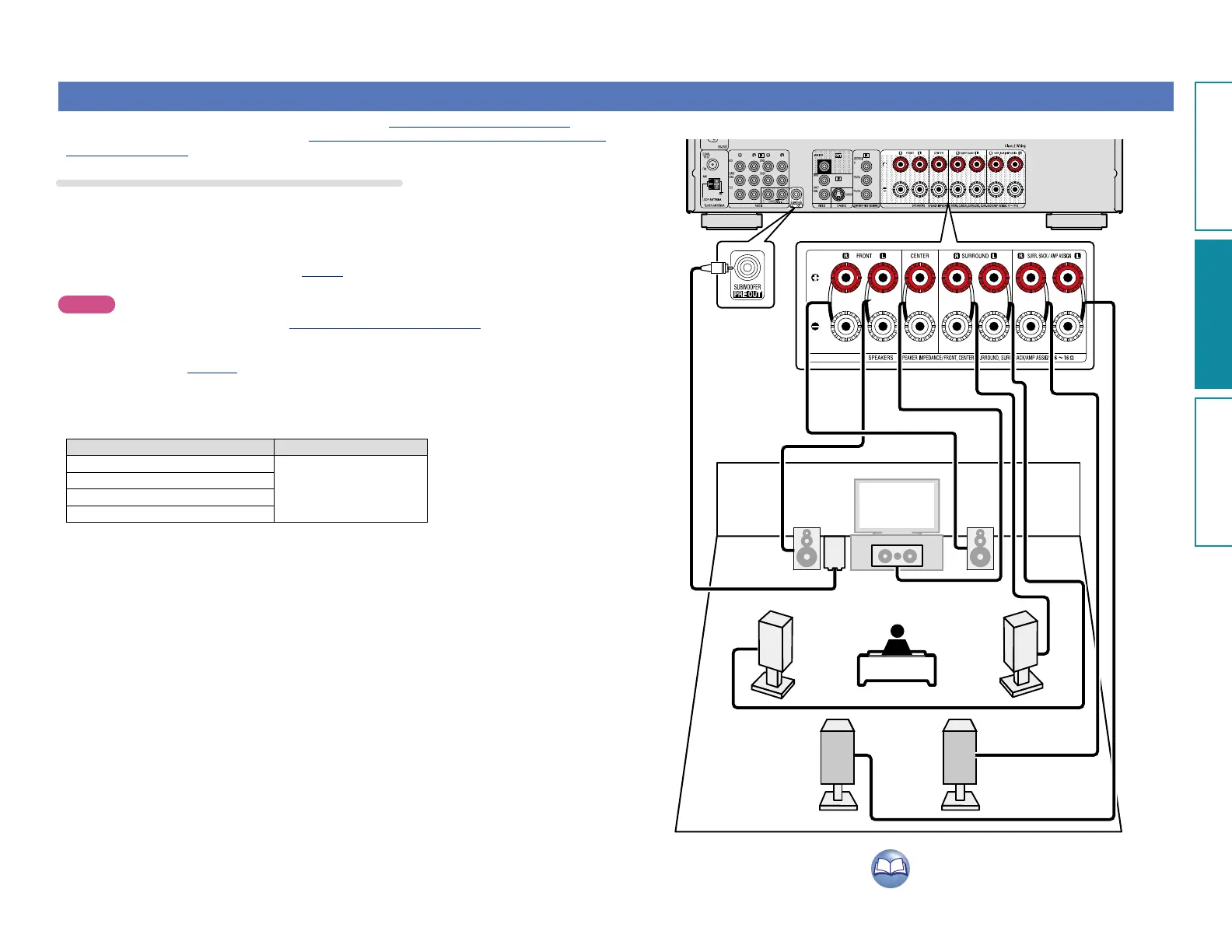

7.1-channel (Surround back speaker) connection
The illustration on the right shows a connection example for performing 7.1-channel playback using the
surround back speakers.
If you connect the surround back and front height speakers before you start playback, the audio is played
back by automatically switching the speakers in accordance with the surround mode or input signals.
To perform 7.1-channel playback using the surround back speakers, set “Amp Assign” to “NORMAL” in
steps 3 and 4 for “Set up “Amp Assign”” (
vpage58).
NOTE
tFor speaker cable connections, see C page 6 “Connecting the speakers”.
tConnect so that the speaker cable core wires do not protrude from the speaker terminal. The
protection circuit may be activated if the core wires touch the rear panel or if the + and – sides
touch each other (
vpage124 “Protection Circuit”).
tNever touch the speaker terminals while the power supply is connected. Doing so could result
in electric shock. (When the Setup wizard is running, follow the instructions in the Setup wizard
screen for making connections.)
tUse speakers with the speaker impedances shown below.
Speaker terminals Speaker impedance
FRONT
6 – 16 Ω
CENTER
SURROUND
SURR. BACK / AMP ASSIGN
FL FR
C
SL
SR
SW
SBL SBR
Basic version Advanced version InformationAdvanced version
