Denon AVR-2113CI Service Manual

16

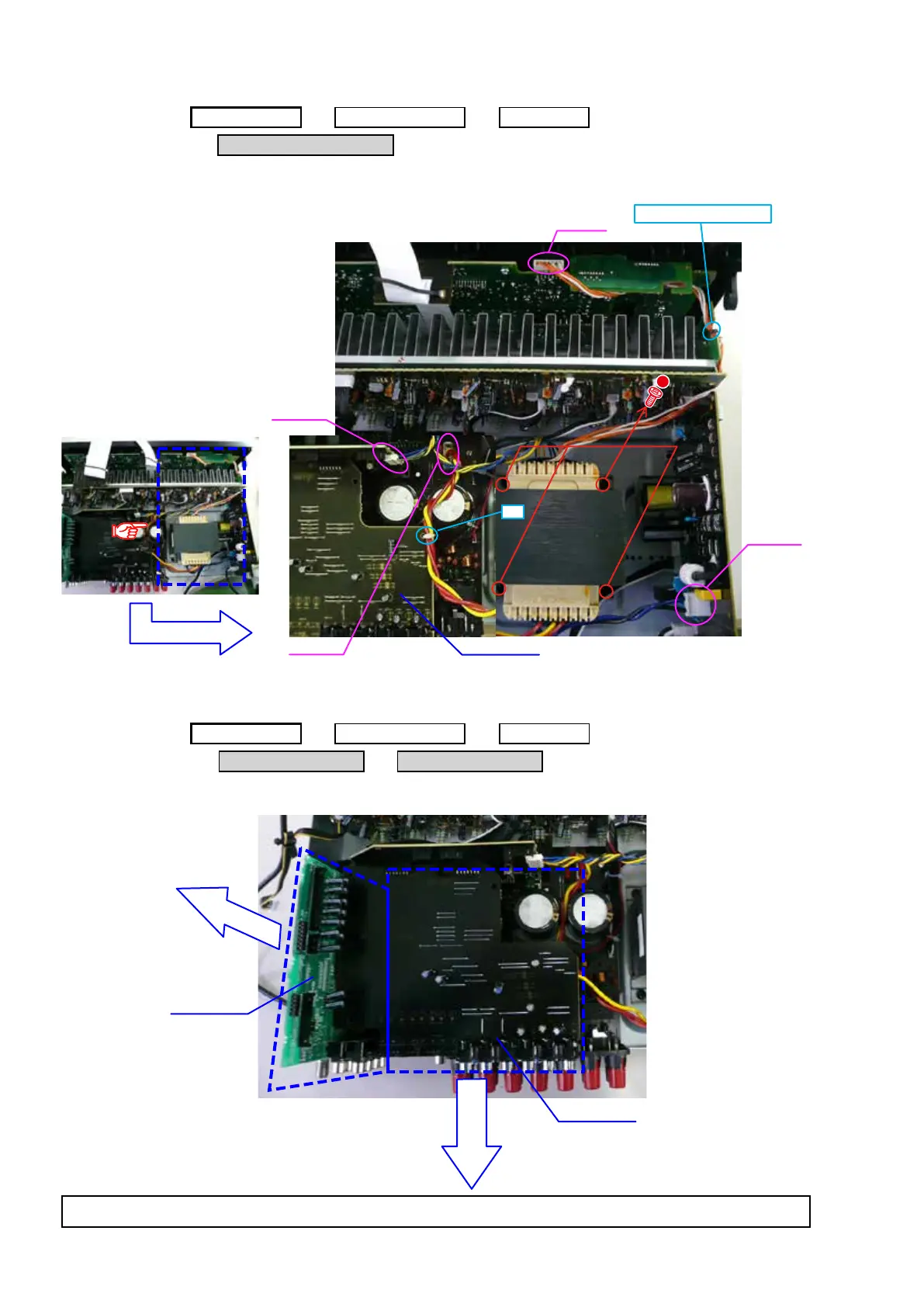

4. POWER TRANS MAIN
(1) Disconnect the connector wires, then remove the screws
.
5. PCB VIDEO ASSY
(1) Disconnect the connector board.
POWER TRANS MAIN
→
TOP COVER
BACK CHASSIS PCB HDMI
→ →
Proceeding :
CP4142
CP5003
CP4000
CP4400
STYLE PIN : Loosen
cut
PCB VIDEO
→
PCB VIDEO ASSY
→
PCB INPUT ASSY
TOP COVER
BACK CHASSIS
→
PCB HDMI
→
Proceeding :
PCB INPUT
PCB VIDEO
Please refer to "EXPLODED VIEW" for the disassembly method of each PCB.
