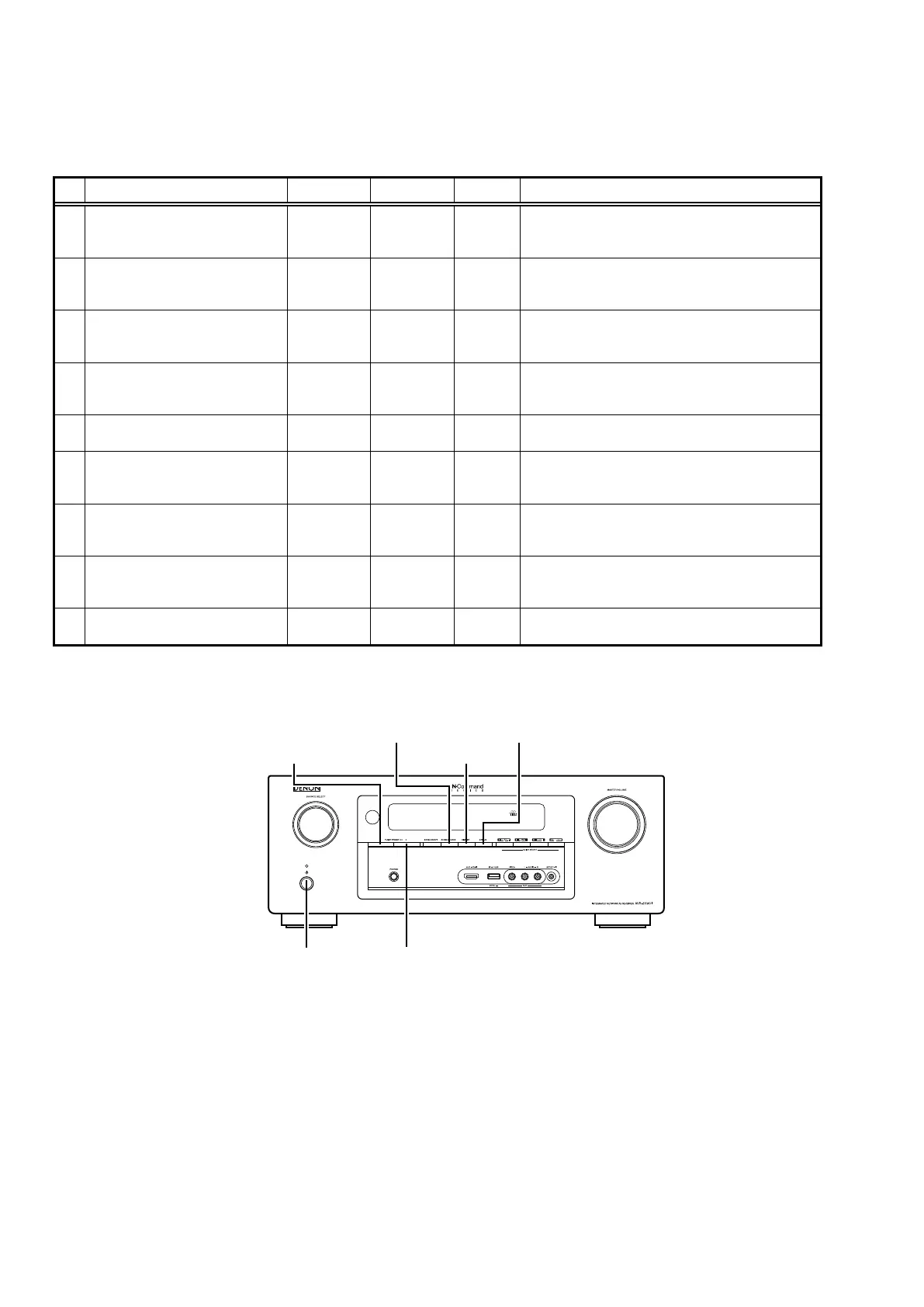

Denon AVR-2113CI Service Manual

22
Special mode setting button (for 2113CIE3/2113E2/E1C model)
b
No.1 - 5, 7, 8 : Press the "Power operation (
X
)" button to turn on the power while pressing both the buttons A, B and the button C at
the same time.
b
No.6 : Turn on the power, then press and hold down the A and B buttons for over 3 se
b
No.9 : Turn on the power, then press and hold down the A and B buttons for over 10 seconds.
No. Mode Button A Button B Button C Contents
1
Version display
(μcom/DSP Error Display)
STATUS DIMMER –
Firmware versions such as Main or DSP are displayed in
the FL Display. Errors are displayed when they occur. (Refer
to 23 page)
2
User Initialization mode
(Installer Setup settings are not
initialized.)
TUNER
PRESET CH +
TUNER
PRESET CH –
–
Backup data initialization is carried out.
(Installer Setup settings are not initialized.)
3
Factory Initialization mode
(Installer Setup settings are also
initialized.)
ZONE2
SOURCE
DIMMER –
Backup data initialization is carried out.
(Installer Setup settings are also initialized.)
4
PANEL/REMOTE LOCK Selection
mode
ZONE2
SOURCE
TUNER
PRESET CH +
–
Selects to reject operations through panel buttons and the
master volume knob on the main unit and operations via
the remote control.
5 Service Related Selection mode
ZONE2
SOURCE
DIMMER STATUS
Selects the “Diagnostic mode” or “Displaying the protection
history mode”.
6 Remote ID Setup mode STATUS DIMMER –
When using multiple DENON AV receivers in the same
room, make this setting so that only the desired AV receiver
operates. (Refer to 33 page)
7
Mode for switching tuner frequency
step
(E2 model Only)
TUNER
PRESET CH +
DIMMER – Change tuner frequency step to FM:50kHz/200kHz
8
Installer Setup mode
(AVR-2113CIE3 model only)
ZONE2
SOURCE
TUNER
PRESET CH -
–
Access the Remote Maintenance mode via the internet.
Installer Setup is displayed on GUI/Option Menu.
b
Refer to AVR_RemoteMaintenance_.pdf of SDI.
9 NETWORK Initialization mode
ZONE2
SOURCE
DIMMER – Initializes NETWORK related settings.
STATUS
TUNER PRESET CH – DIMMER
ZONE2 SOURCE
X
TUNER PRESET CH +
f
