SIGNAL LINE

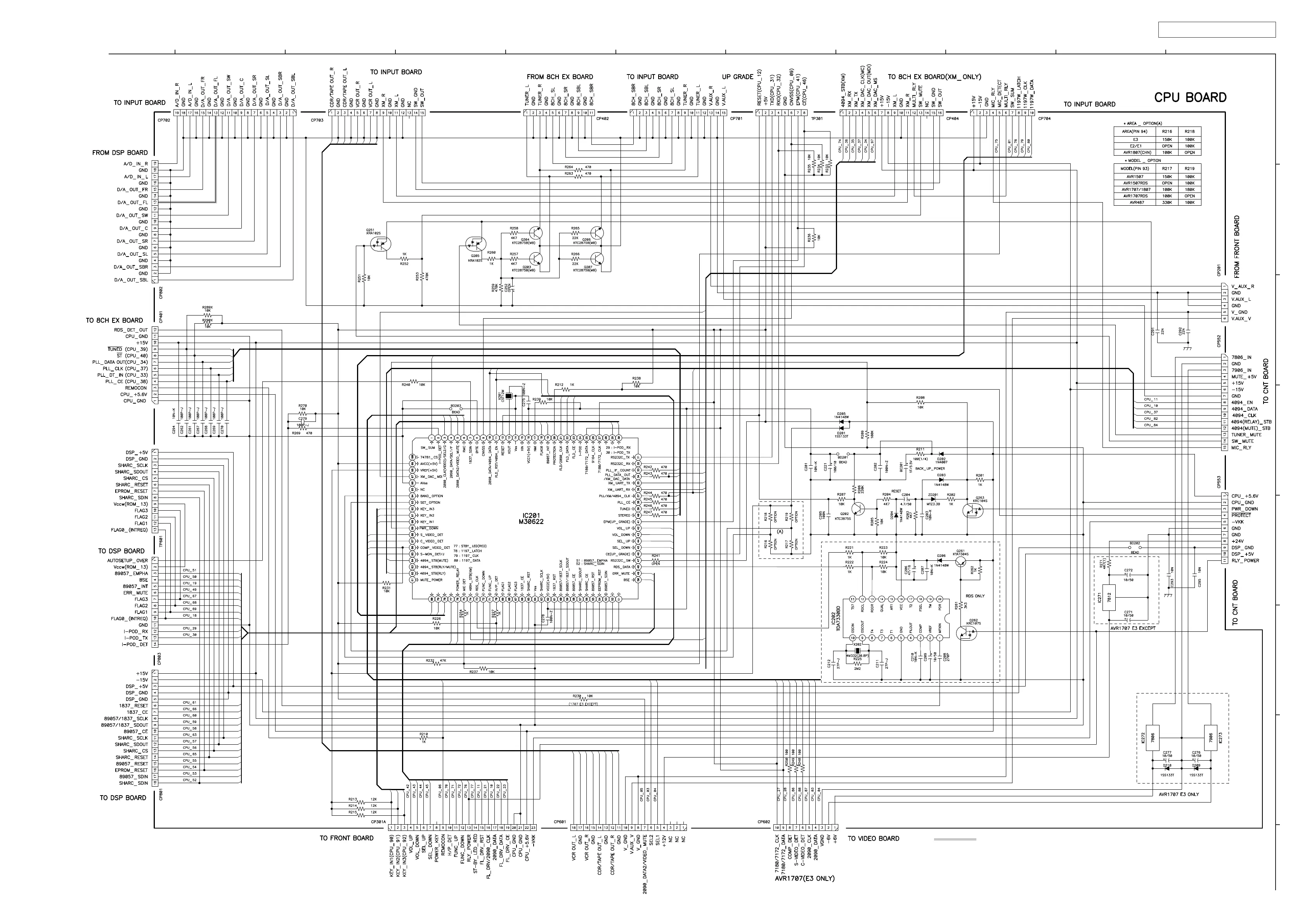

SCHEMATIC DIAGRAMS (1/17)
CPU UNIT
(For ALL MODEL)
SCHEMATIC DIAGRAMS (1/17)
1 2 3 4 5 6 7 8 9 10 11
A
B
C
D
E
F
G
H
AVR-1707/1507/687/587/487
