Denon AVR-5803 Service Manual

5
AVR-5803/AVC-A1SR

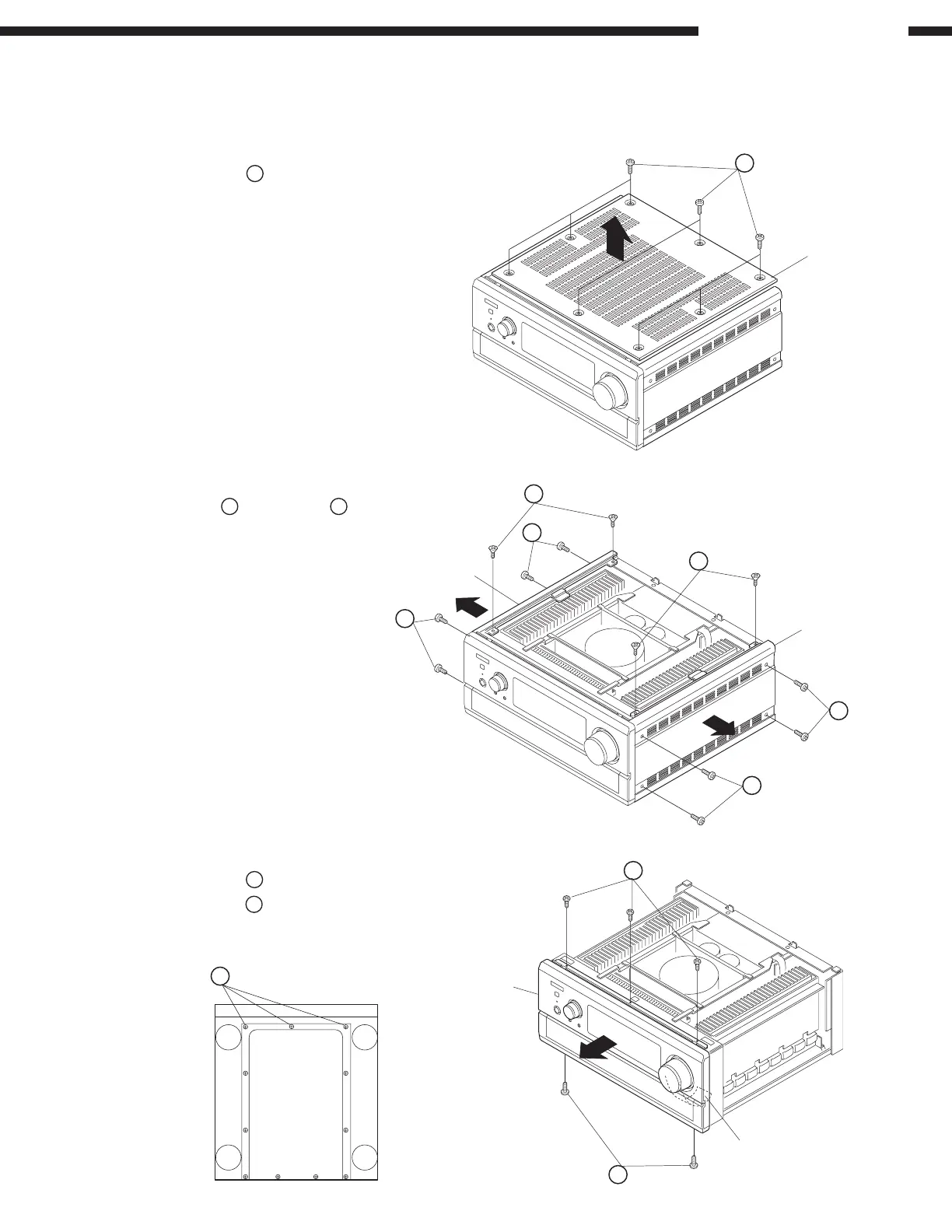

DISASSEMBLY
( Follow the procedure below in reverse order when reassembling )
Top Cover
1. Remove 8 screws
1
on the top.
2. Detach the Top Cover as shown in the arrow direction.
Side Cover
Remove 4 screws
2
and 8 screws
3
.
1
Top cover
2
2
3
3
3
3
Side Cover
Side Cover
Front Panel
1. Remove 3 screws
4
.
2. Remove 5 screws
5
.
3. Disconnect FFC wire from its connector, and detach the
Front Panel in the arrow direction.
FFC Wire
Front Panel
5
5
4
